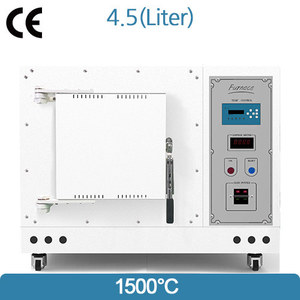

1500℃ muffle furnace 4.5L
$7,550.16
1500℃ muffle furnace 4.5L
– High temperature furnace with SiC Rod heating with swing door
– Great for testing metallic sample
– Built in programmable controller. 5 patterns and 9 segment/pattern. Total 45 segments
– Recommended ideal running temperature is below 1350℃ *24hours continuous running
– Heating from 2 sides and vertical SiC rod preventing warping. Easy replacement
– Excellent outgassing thanks to the exhaust air outlet on the head of chamber, i.e plastic polymer
– Double housing and low surface temperature
– Ceramic fiber materials which are not classified as carcinogenic
– Great temp uniformity (+/-4%)
– Prompt heat up and good maintaining
– SCR operation and programmable control provides low noise operation and precise temp control (+/-1℃)
– Gas atmosphere available with optional flow meter
Program type, 4.5L, Max 1500℃
Make: SH Scientific
Model: SH-FU-4MH
- Description
- Size Guide
- Specifications
- Features
- Vendor Info
- More Products
Description
1500℃ muffle furnace 4.5L
– High temperature furnace with SiC Rod heating with swing door
– Great for testing metallic sample
– Built in programmable controller. 5 patterns and 9 segment/pattern. Total 45 segments
– Recommended ideal running temperature is below 1350℃ *24hours continuous running
– Heating from 2 sides and vertical SiC rod preventing warping. Easy replacement
– Excellent outgassing thanks to the exhaust air outlet on the head of chamber, i.e plastic polymer
– Double housing and low surface temperature
– Ceramic fiber materials which are not classified as carcinogenic
– Great temp uniformity (+/-4%)
– Prompt heat up and good maintaining
– SCR operation and programmable control provides low noise operation and precise temp control (+/-1℃)
– Gas atmosphere available with optional flow meter
| Model | SH-FU-4MH |
| Max temperature | 1500℃ |
| Continuous running temperature | 1350℃ |
| Chamber volume | 4.5liters |
| Controller | Programmable controller |
| Sensor | R type |
| Heater | 5kW |
| Heating element | SiC |
| Insulation | Ceramic |
| Power supply | 220V, 50/60Hz, 1p, 22A |
| Net weight | 92kg |
| Chamber size | 150x200x150mm |
| External size | 820x560x740mm |
