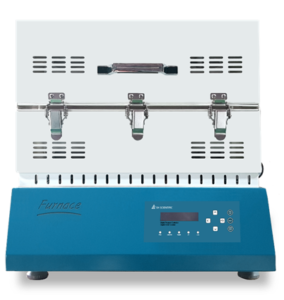

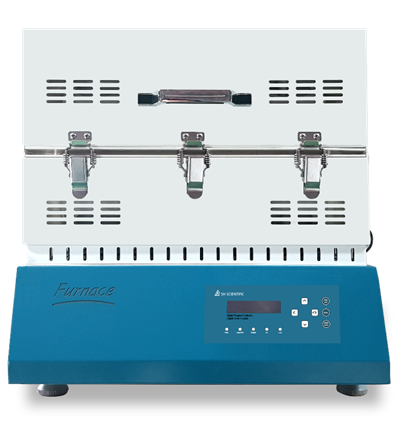

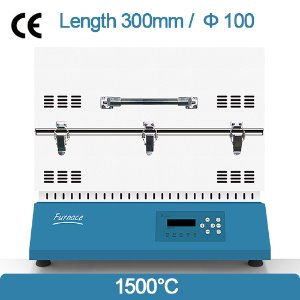

1500°C Tube Furnace 100mm diameter
$10,151.88
1500°C Tube Furnace 100mm diameter tube and 300mm hot zone

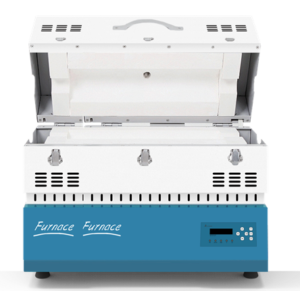

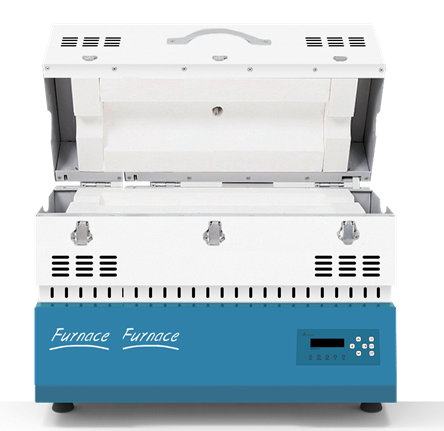

– High temp tube furnace with hinged door
– Double housing and low surface temperature
– Recommended ideal running temperature is below 1350℃
– Great durability thanks to SIC heating element and easy replacement
– R type thermocouple
– Suitable for gas exchange experiment
– Light weight and prompt heat up thanks to ceramic insulation
Program type, 13KW, Max 1500℃, 300L heating zone
Make: SH Scientific
Model: SH-FU-100TH
- Description
- Size Guide
- Specifications
- Features
- Vendor Info
- More Products
Description
1500°C Tube Furnace 100mm diameter tube and 300mm hot zone
– High temp tube furnace with hinged door
– Double housing and low surface temperature
– Recommended ideal running temperature is below 1350℃
– Great durability thanks to SIC heating element and easy replacement
– R type thermocouple
– Suitable for gas exchange experiment
– Light weight and prompt heat up thanks to ceramic insulation
– Convenient design for sample loading
– Built in programmable controller. 5 patterns and 9 segment/pattern. Total 45 segments
– Built in over temp protector
– SCR operation and built in programmable controller provides low noise operation and precise temp control (+/-1℃)
– Wide choice of applicable tube sizes. 50/80/100/120mm diameter.
– Wide choice of tube materials. Quartz, ceramic, alumina and alloy

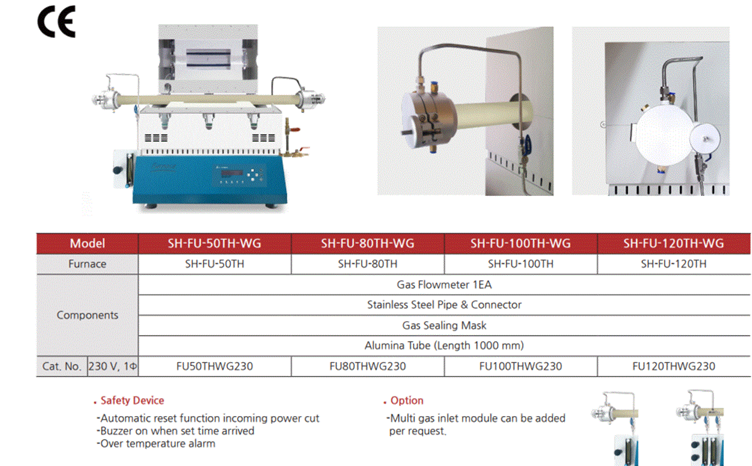

1500℃ tube furnace gas flow package
– All in one package for gas exchange experiment
– Gas flowmeter 1ea
– Seamless SS316 flow line, valve and connector
– Gas sealing mask
– Alumina tube (1000mm) and wide choice of tube materials
– Multi gas inlet module can be added per request
+
|
Model |
SH-FU-100TH |
|
Max temperature |
1500℃ |
|
Continuous running temperature |
1350℃ |
|
Tube diameter |
100mm |
|
Controller |
Programmable controller |
|
Sensor |
R type |
|
Heater |
13kW |
|
Hot zone |
300mm |
|
Heating element |
SiC |
|
Insulation |
Ceramic |
|
External size |
690x550x640mm |
|
Weight |
114kg |
|
Power supply |
220V, 50/60Hz, 1p, 60A |
