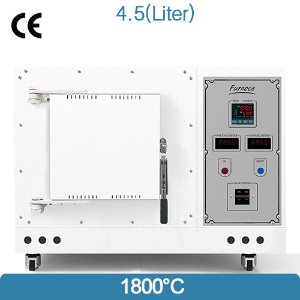

1800℃ muffle furnace 4.5L
$15,293.90
1800℃ muffle furnace 4.5L
– High-Temperature Furnaces with MoSi2 Rod Heating up to 1800°C
– Great for testing metallic sample and sintering
– Built in programmable controller. 5 patterns and 9 segment/pattern. Total 45 segments
– Recommended ideal running temperature is below 1650℃ *24hours continuous running
– Heating from 2 sides and vertical MoSi2 rod preventing warping. Easy replacement
– Excellent outgassing thanks to the exhaust air outlet on the head of chamber, i.e plastic polymer
– Double housing and low surface temperature
– Ceramic fiber materials which are not classified as carcinogenic
– Great temp uniformity (+/-4%)
– Prompt heat up and good maintaining
– SCR operation and programmable control provides low noise operation and precise temp control (+/-1℃)
– Gas atmosphere available with optional flow meter
High temp, 4.5L,Max 1800℃
Make: SH Scientific
Model: SH-FU-4MS
- Description
- Size Guide
- Specifications
- Features
- Vendor Info
- More Products
Description
1800℃ muffle furnace 4.5L
– High-Temperature Furnaces with MoSi2 Rod Heating up to 1800°C
– Great for testing metallic sample and sintering
– Built in programmable controller. 5 patterns and 9 segment/pattern. Total 45 segments
– Recommended ideal running temperature is below 1650℃ *24hours continuous running
– Heating from 2 sides and vertical MoSi2 rod preventing warping. Easy replacement
– Excellent outgassing thanks to the exhaust air outlet on the head of chamber, i.e plastic polymer
– Double housing and low surface temperature
– Ceramic fiber materials which are not classified as carcinogenic
– Great temp uniformity (+/-4%)
– Prompt heat up and good maintaining
– SCR operation and programmable control provides low noise operation and precise temp control (+/-1℃)
– Gas atmosphere available with optional flow meter
|
Model |
SH-FU-4MS(18) |
|
Max temperature |
1800℃ |
|
Continuous running temperature |
1650℃ |
|
Chamber volume |
4.5liters |
|
Controller |
Programmable controller |
|
Sensor |
B type |
|
Heater |
3kW |
|
Heating element |
MoSi2 |
|
Insulation |
Ceramic |
|
Power supply |
220V, 50/60Hz, 1p, 14A |
|
Net weight |
150kg |
|
Chamber size |
150x250x150mm |
|
External size |
920x600x770mm |
