54L Forced Convection Drying Oven (General Model, 250℃)

DRYING OVENS
Drying oven is an equipment which is widely used in laboratories and other related industries. The main function of a Drying oven is to a constant temperature for a certain set period.
Drying oven can be classified into two types, depending on the air circulation; forced air circulation and natural air circulation.

Forced convection,Viewing Window,54 Lit.,to 250℃, General type

Make: SH Scientific

Model: SH-DO-54FG

SKU: EA-979-63
Add to wishlist

Description

54L Forced Convection Drying Oven (General Model, 250℃)

DRYING OVENS
Drying oven is an equipment which is widely used in laboratories and other related industries. The main function of a Drying oven is to a constant temperature for a certain set period.
Drying oven can be classified into two types, depending on the air circulation; forced air circulation and natural air circulation.

General Model Forced Convection Drying Oven

– Locking door handle for minimum heat leakage

– Internal observation is possible through the viewing window
– Stainless Steel Internal Chamber with shelves
– Excellent temperature uniformity and accuracy

– Durable structure against continuous operation

– Safety assurance with C.E conformity



• Accessory

-Movable stainless wire shelves 2EA

• Option

-Programmable controller

-Digital recorder

-2CH Hybrid recorder

-RS-485 interface

-RS-232C interface

• Safety Device

-Automatic reset function incoming power cut

-Buzzer on when set time arrived

-Door open alarm

-Electric leakage breaker

-Over temp function

-Fire safety controller

Model SH-DO-54FG
Air Circulation type  Forced
Temp Range  Ambient +10℃ to 250℃ (Ambient +18℉ to 482℉)
Time Range 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter Timer
Temp&Time controller Microprocess PID Membrane Touch Digital controller
Heater Capa 800 W
Dimension Internal

(W×D×H)

 380×340×420mm

14.96×13.39×16.54”
Dimension External

(W×D×H)

 500x630x760mm

19.68×24.80×29.92”
Weight 49 kg
Capa 54 L
Material Internal Stainless Steel
Material External Steel Plate With Powder Heating Coated
Shelves 2 Supplied (12 Maximum)
Fan Position Rear
Electrical Requirements

120V ,50/60Hz, 1Φ

 7.3 A
Cat. No. DO54FG120
Electrical Requirements

230V,50/60Hz, 1Φ

 3.5 A
Cat. No. DO54FG230

Forced Convection Drying Oven

-Feature

Forced Convection Drying Oven is commonly used in laboratories and other related industries for the purpose of sample drying and sterilization. It also comes with outstanding features such as high level of temp. uniformity, precise accuracy and stable temperature control. All of these are possible through our advanced technology and continuous innovation.

– Explosion-proof windows

– RS-485 or RS-232C interface

– Digital PID controller
– Surface finished stainless steel
– Powder coated steel plate
– Leveling feet
– Safety devices
– User friendly door handle

Uniformity Sheet

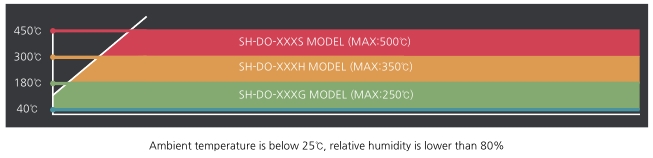

Selection guide

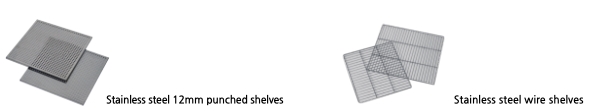

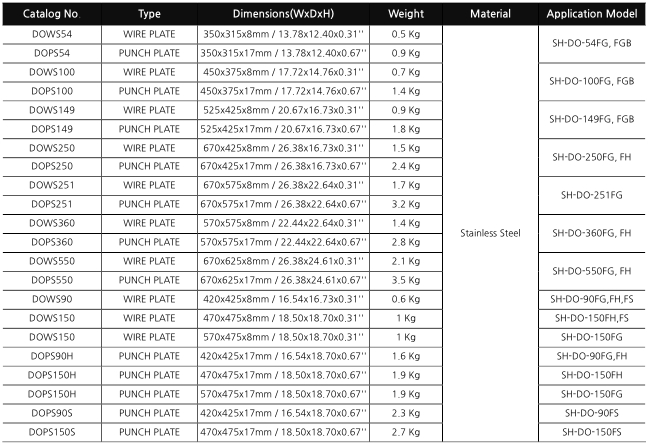

Shelves’ detail
