LB-Series AC Load Banks with Software – 30-1000kW

Manufacturer: Eagle Eye Power Solutions

SKU: N/A
Clear
Add to wishlist

Description

LB-Series AC Load Banks with Software – 30-1000kW

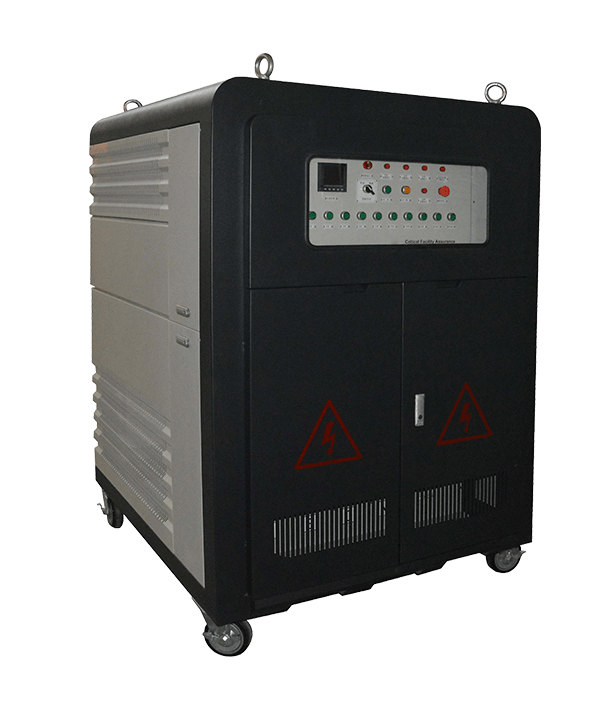

Digital AC Portable Resistive Three-Phase Load Banks

LB-Series AC Load Banks with Software - 30-1000kW

Model options range from small, portable, low-power units, to high-power, indoor & outdoor permanent, three-phase resistive load banks.

PC software controls offer advanced load profile solutions for working within simple to complex testing applications of various generators, UPS systems, Data centers, power supplies, A/C systems, and other critical AC power sources.

Design elements incorporate a robust steel outer chassis with isolated interior chambers for control and load elements. This ensures electrical components are kept away from dirt and debris for long-life reliability in harsh test environments.

Portable options include lifting eyes and caster wheels while permanent and outdoor rated units are available. All three-phase resistive load banks come with multiple built-in automatic safety shutdowns and manual override shutdown.

AC Load Banks Features/Benefits

  • Digital metering for high-precision data read-out
  • User controlled manually or through software with programmed load profile
  • Detailed data management, analysis, and report generation through software
  • Automatic load testing allows user to set custom periods of power and time
  • Display of current, voltage, power, power factor, frequency, and time
  • Emergency manual stop button for quick termination of load test
  • Automatic stop protection for adverse conditions including over-load, over-voltage, high temperature, short-circuit

ac load bank

LB-Series AC Load Banks with Software Technical Specifications

Voltage Versions 208, 240, 400, 480 or 600 VAC
kW Models 10, 30, 40, 50, 100, 200, 300, 500, 800 & 1000 kW
Frequency 50/60 Hz
Resolution 1 kW
Configuration Three Phase, 4 Wire Wye or 3 Wire Delta connection available
Digital Display LCD multiple function display meter
Communication RS-232/485, USB port provided
Cooling Forced air
Environmental -10 – 50 °C (14 – 122 °F), ≤95% RH
Control Local manual or remote laptop control



Video



MANUFACTURER:

eagle eye power solutions logo

Additional information

AC Load Bank

30kW, 50kW, 100kW, 200kW, 300kW, 500kW, 700kW, 800kW, 1000kW

lb-series-ac-resisitve-three-phase-data-sheet



PART NUMBER DESCRIPTION
LB-30kW 30kW AC Load Bank with software. User specified load voltage, frequency, and power supply
LB-50kW 50kW AC Load Bank with software. User specified load voltage, frequency, and power supply
LB-100kW 100kW AC Load Bank with software. User specified load voltage, frequency, and power supply
LB-200kW 200kW AC Load Bank with software. User specified load voltage, frequency, and power supply
LB-300kW 300kW AC Load Bank with software. User specified load voltage, frequency, and power supply
LB-500kW 500kW AC Load Bank with software. User specified load voltage, frequency, and power supply
LB-700kW 700kW AC Load Bank with software. User specified load voltage, frequency, and power supply
LB-800kW 800kW AC Load Bank with software. User specified load voltage, frequency, and power supply
LB-1000kW 1000kW AC Load Bank with software. User specified load voltage, frequency, and power supply
