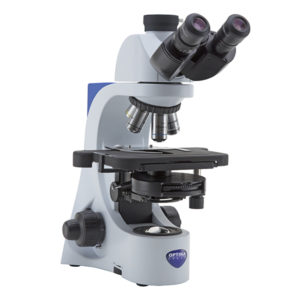

B-383PHi Trinocular phase contrast microscope, 1000x, IOS PLAN, multi-plug

B-383PH Trinocular phase contrast microscope, 1000x, PLAN, multi-plug Trinocular phase contrast microscope B-383PH Trinocular phase contrast microscope, 1000x, PLAN, multi-plug
Clean bench HCB-900V

$2,884.04

Product Name: B-383PHi Trinocular phase contrast microscope, 1000x, IOS PLAN, multi-plug

Model no: B-383PHi

Manufacturer: OPTIKA

SKU: EA-7916-150
Add to wishlist

Description

B-383PHi Trinocular phase contrast microscope, 1000x, IOS PLAN, multi-plug

Phase contrast, darkfield and brightfield microscope with IOS W-PLAN (Infinity Corrected) objectives, rackless stage and the exclusive X-LED3
for great-looking, rich and high-quality view.

Trinocular phase contrast microscope

B-383PHi Trinocular phase contrast microscope, 1000x, IOS PLAN, multi-plug

Observation mode: Brightfield, phase contrast and darkfield (dry).
Head: (50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 48 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
IOS W-PLAN PH 10x/0.25
IOS W-PLAN PH 20x/0.40
IOS W-PLAN PH 40x/0.65
IOS W-PLAN PH 100x/1.25 (Oil)
All with anti-fungus treatment.

Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Phase condenser (10x/20x, 40x, 100x) with darkfield (dry) and brightfield.
Illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.

OPTIKA_B-383PHi_Technical_Datasheet_EN
