Barnes Maze for Mice and Rats – Optimized for video-tracking
Manufacturer: Ugo Basile
Product code: 40192/40193
- Description
- Size Guide
- Specification
- Documents
Description

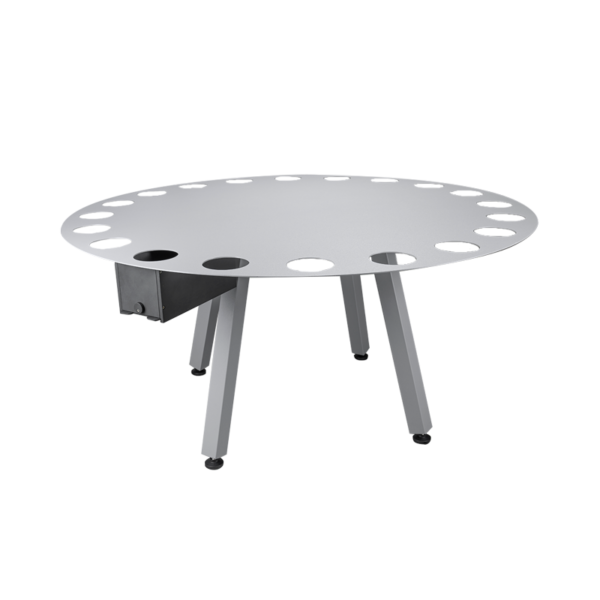

Barnes Maze for Mice and Rats – Optimized for video-tracking
Description Of Barnes Maze for Mice and Rats – Optimized for video-tracking
Background
- The rodent seeks the small dark recessed chamber located under one of the exposed, escape holes around the perimeter of the open circular platform.
- Researchers can measure time period to locate the correct hole, number of incorrect holes explored, and exploratory path length.
- If used as an alternative to the water maze, this maze is generally less stressful, especially mice. It also suits animals unable to perform strenuous activity.
Easy to set up, perfect for video tracking
- Quick and easy to set up.
- Engineered by Ugo Basile to optimize video tracking success through our use of high contrast, non-reflective surfaces:
- Selection of high-contrast colors for optimal motion tracking: grey, white, black, (Ugo Basile) light-blue or custom.
- Use of non-reflective, anti-glare surface. Reflections and glare are a common source of error in video tracking. We avoid this!
- The shelter chamber can be easily attached magnetically to a hole and also quickly rotated around the table. (And fast to detach for cleaning.)
- Removable ramp for easy entry.
- False/fake shelters (cups or coasters) are available as optional to remove visual cues that might be observed by the animal from a distance or through open holes.
- Stable and sturdy models for mice or rats.
- Maze surface texture is selected for best rodent comfort – anti-slip and “warm” (rather than a smooth or cold surface that rodents find uncomfortable).
- Custom models can be made on request, such as a special model with interchangeable tables.
| Feature | Benefit |
|---|---|
| High-contrast colors | Gives optimal results with any Video-Tracking software |
| Non-reflecting surface | Guarantees optimal camera view and no glare |
| Ample color selection | Available in grey (standard), blue, white, black, custom color |
| Reasonably rough “warm” surface texture | Selected for best rodent comfort, non-slippery |
| Quality materials | Reliable and durable mazes, easy to clean and store |
| Physical | ||
|---|---|---|
| Animal | Rat | Mouse |
| Diameter | 130cm | 100cm |
| Number of holes | 20 | 20 |
| Hole diameter | 10cm | 5cm |
| Height (from the floor) | 60cm | 60cm |
| Shelter | Included. With magnets for easy positioning and removal | Included. With magnets for easy positioning and removal |
| Standard color | Grey (RAL GR7001) | Grey (RAL GR7001) |
| Available colors | Blue, white, black, color on request | Blue, white, black, color on request |
| Weight | 35Kg | 15Kg |
| Shipping Weight | 46Kg | 20Kg |
| Packing Dimensions | 135x135x30cm | 114x114x50cm |
| Warranty | ||
| Warranty | Barnes Maze is covered by a 12-month warranty + 12 after product registration | |
| UB-Care | Additional UB-Care can be added for other 12 or 24 months | |
