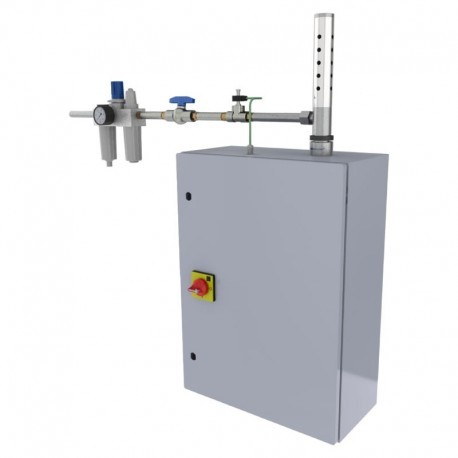

NEMA 4-4X (IP 66) Frigid-X 316L Cabinet Panel Cooler 60115X-316L
Frigid-X™ Cabinet Panel Coolers 60125X-316L
NEMA 4-4X (IP 66) Frigid-X 316L Cabinet Panel Cooler 60115X-316L

Frigid-X™ Cabinet Panel Coolers 60125X-316L

Quartz wool, 50g Quartz wool, 50g
Frigid-X™ Cabinet Panel Coolers 60140X-316L Frigid-X™ Cabinet Panel Coolers 60130X-316L

$912.19

Frigid-X™ Stainless Steel Panel Coolers NEMA Type 4-4X-316L (IP66) 60125X-316L

Manufacturer: Nex Flow Air Products Corps.

Stock No.: AMA-5117-28

SKU: 60125X-316L
Add to wishlist

Description

 FRIGID-X™ PANEL COOLERS 60125X-316L

Frigid-X™ Cabinet Panel Coolers 60125X-316L

All external exposed surfaces are of 316L and ideal for pharmaceutical industry and extreme corrosive environments where 303/304 stainless steel is not adequate. As with the NEMA Type 4-4x Cabinet Panel Coolers, the cooler is splash resistant, for use in wash down environments as well as outdoor use. Unique patented design* for secure water tight protection. 316L Stainless Steel for pharmaceutical grade, food service and extreme corrosive environments. Stainless steel also provides for long life in wet environments and for outdoor use.

The Frigid-X™ Stainless Steel Panel Coolers NEMA Type 4-4X-316L (IP66) provides a low cost method of both purging and cooling electrical and electronic control panels by using a stainless steel vortex tube to create cold air from ordinary compressed air.



SPECIFICATIONS

Data sheet

Material 316L Stainless Steel
Cooling capacities [Btu/h] 1800 Btu/hr 527 W
Sound level [dB(A)] 73 dBA
Standard/Certification CE Regulations Necessary International Standards ULC Listed
Type NEMA Type 4-4X 316L (IP 66)

Advantages

  • No moving parts
  • Quiet
  • Eliminate fans and blowers and filters
  • Low in cost compared to most others
  • Superior design and performance
  • Maintenance free operation
  • Made of durable stainless steel and metal arts – no cheap plastic parts
  • Cooling capacities to 2800 Btu/hr per unit
  • Maintain NEMA 12, NEMA 3R and NEMA 4-4X integrity (IP 52, IP 14 and IP 66)
  • Control and stabilize the temperature and humidity inside the enclosure
  • No CFC’s or HCFC’s
  • Mount in a standard electrical knockout
  • Eliminate circuit drift, nuisance tripping and dirt Contamination
  • Provide wash down protection (NEMA 4-4X (IP 66))

Applications:

  • Programmable Controllers
  • System Control Cabinets
  • CCTV Cameras
  • Motor Control Centers
  • Relay Panels
  • CNC Machine Controls
  • Computer Panels
  • Laser Housing Enclosure Cooling
  • Electronic Scale Cooling
  • Modular Control Centers
  • Food Service Equipment Controls

Item#

Description Cooling Capacity @ 100 psig and 70 ºF Type
60004A NEMA Type 12 (IP 52) Panel Cooler 290 Btu/hr
85 W		 NEMA Type 12 (IP 52)
60008A NEMA Type 12 (IP 52) Panel Cooler 580 Btu/hr
170 W		 NEMA Type 12 (IP 52)
60015A NEMA Type 12 (IP 52) Panel Cooler 1100 Btu/hr
322 W		 NEMA Type 12 (IP 52)
60025A NEMA Type 12 (IP 52) Panel Cooler 1800 Btu/hr
527 W		 NEMA Type 12 (IP 52)
60030A NEMA Type 12 (IP 52) Panel Cooler 2100 Btu/hr
615 W		 NEMA Type 12 (IP 52)
60040A NEMA Type 12 (IP 52) Panel Cooler 2900 Btu/hr
849 W		 NEMA Type 12 (IP 52)

**Ratings Explanation
NEMA Type 12 (IP 52) Frigid-X™ Panel Cooler is dust tight and oil tight and used in general industrial environments.
