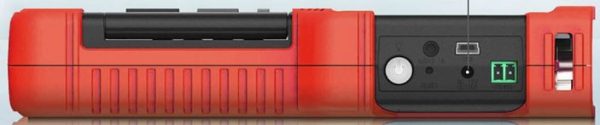

CCTV Tester T Series DT-T52 (TVI+AHD+Analog)
$364.60
Manufacturer: Guangzhou Dongtai electronics CO., LTD
Product code: AMI-805-1
- Description
- Size Guide
- Specifications
- Vendor Info
- More Products
Description
CCTV TESTER T SERIES DT-T52 (TVI+AHD+ANALOG)
Description Of CCTV Tester T Series DT-T52 (TVI+AHD+Analog)
This device Support Analog SD, HD-TVI, AHD;Ergonomic design, operate with single hand.Real time operation prompt;12V/2A power output…
General Description
- Support Analog SD, HD-TVI,AHD
- Ergonomic design, operate with single hand.
- Real time operation prompt
- 12V/2A power output。
- 4.0 inch all viewing angle display，800X480 resolution, 16.7M color。
- Easy and reliable keypad operation
- Changeable Li-polymer battery, battery working time 10 hours
- With rubber protection layer
- Dual LED torch
Features
- Multifunction 3-in-1 Tester;
- Support HD TVI (2MP 1080P), AHD (2MP 1080P) &Analog Camera;
- HD Coaxial Camera and Analog Camera System testing;
- Support OSD Function.
- OEM service: Logo printing and Power-on Logo Input, Label etc.
Specifications
| model | T52-TVI+AHD |
| interface | |
| Network interface | Dual 10/100/1000M RJ45，support switch mode |
| Function interface | Dual BNC connector（Video input/output），RS485comm，audio input，USB, reset button |
| Analog SD and HD test | |
| SD standard | NTSC, PAL |
| HD Signal | HD-TVI, AHD |
| Video resolution | D1, 720P, 1080P |
| Signal level | 1Vpp |
| Camera test | Real time video, PTZ control, audio test, full screen preview, digital zoom of video(8 step), save snapshot, record video(h.264), video resolution and frame rate indicator. |
| HD OSD | Camera setting（OSD） |
| HD-TVI Audio | supported |
| AHD Audio | supported |
| Coaxial control | Hikvision coaxial、PELCO-C coaxial |
| Video system auto detect | Yes |
| PTZ controller | |
| Communication protocol | Hikvision coaxial、PELCO-C coaxial、Hikvision、Pelco-D/P、Samsung、Panasonic、Lilin、Yaan…more than 30 protocols |
| Baud rate | 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps |
| Other test | |
| Video generator | Send PAL/NTSC of various test pattern to output |
| Record playback | Local playback, snapshot and video digital zoom, video frame by frame play support |
| device | |
| Display | 4.0inch TFT 800*RGB*480(WVGA) resolution，16.7M color，back light level adjustable |
| Internal storage | 8GB flash |
| LED torch | Two 35lm LED, can turn on individually when device is off. |
| Operation | Power button, main control keypad of 12 keys, swing QWERTY keyboard of 45 keys. |
| Language | Chinese,English,French,Spanish,Germany,Turkish,Russian |
| Keypad tone | On/Off |
| Software upgrade | Online upgrade |
| power | |
| Power input | 12V1A |
| Charger | input AC100~230V 50~60Hz，output 12V1A |
| battery | Dedicate li-polymer battery, user replaceable, capacity 22.2Wh |
| Power output | 12V/2Aoutput |
| Battery work time | Charge 3~4 hours，working time 10 hours |
| other | |
| Working temperature | -10℃~+55℃ |
| Working humidity | 30%~90% |
| Device Dimension | 190x113x37mm |
| Weight | 0.5kg(device with battery) / 1.6kg(gross) |
