CMEX-f USB-2 cameras with fast CMOS sensor

Manufacturer: EUROMEX

Product Code: DC.12000f



SKU: EA-121017-1175
Add to wishlist

Description

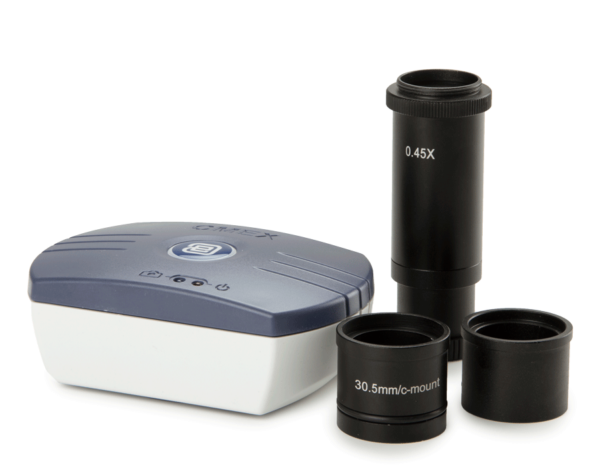

CMEX-f USB-2 cameras with fast CMOS sensor

CMEX-12f 12.0 MP digital USB-2 color camera with 1/2.3 inch CMOS sensor





The CMEX-2f, CMEX-5f and CMEX-12f are equipped with an extra fast CMOS sensor with 8 bits grayscale conversion and a 24 bits color rendering. The CMEX-f cameras are equipped with USB-2 data interface and supplied with ImageFocus Plus software

Besides capturing of images and videos, the ImageFocus Plus software allows measurements on still and live images and annotations on captured images, stitching and stacking of images and more. Compatible with Windows 10 and higher both 32 and 64 bits configurations.

Highlights

  • Entry level cameras
  • For amateur, education and laboratories
  • CMOS color USB 2.0 camera
  • 1.3 – 12.0 Mpix CMOS color USB 2.0 cameras
  • 1272 x 952 – 4000 x 3000 pixels
  • Color depth 24 bits
  • Low signal/noise ratio
  • USB 2.0 interface

Specification:

TECHNICAL SPECIFICATIONS CMEX-1 (DC.1300c)

Sensor
CMOS 1/2.5 inch

Pixels
1272 x 952 pixels, 1.3 Mpix

Scan mode
Progressive, rolling shutter

Pixel size
2.2 μm x 2.2 μm

Filter
RGB

Mount
C-mount

Max fps
Up to 15 frames per second (1272 x 952 pixels)
Up to 30 frames per second (632 x 472 pixels)
(Frame rates have been determined at optimal conditions)

ADC
10 bits

Color depth
24 bits

Sensitivity
1.3 V/lux-sec @ 550 nm

Exposure
Automatic or manual, from 1 ms to 300 ms

White balance
Automatic/manual

Dynamic range
72 db

S/N max
55 db

Data interface
USB 2.0 at 480 Mb/s

Operation
0 – 60° C, 45-85 % humidity

Storage temperature
-20 to 70° Celsius

Supplied with
0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for
stereomicroscopes, 76 x 24 mm calibration slide (1mm/100), USB stick with ImageFocus 4 software, carton box

Software
Windows 10 and higher (32 and 64 bit configurations)

Product number
DC.1300c

_____________________________________________________________________________

TECHNICAL SPECIFICATIONS CMEX-2f (DC.2000f)

Sensor
CMOS 1/2.9 inch

Pixels
1920 x 1060 pixels, 2.0 Mpix

Scan mode
Progressive, rolling shutter

Pixel size
2.8 μm x 2.8 μm

Filter
RGB

Mount
C-mount

Max fps
Up to 30 frames per second (1920x 1080 pixels)
(Frame rates have been determined at optimal conditions)

ADC
12 bits

Color depth
24 bits

Sensitivity
0.51 V/lux-sec @ 550 nm

Exposure
Automatic or manual, from 1 ms to 2 s

White balance
Automatic/manual

Dynamic range
72 db

Data interface
USB 2.0 at 480 Mb/s

Operation
0 – 60° C, 10-85 % humidity

Supplied with
0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereo microscopes, 76 x 24 mm calibration slide, USB stick with ImageFocus Plus software, carton box

Software
Windows 10 and higher (32 and 64 bit configurations) and Mac OS

Product number
DC.2000f

_____________________________________________________________________________

TECHNICAL SPECIFICATIONS CMEX-5f (DC.5000f)

Sensor
CMOS 1/2.8 inch

Pixels
1920 x 2560 pixels, 5.0 Mpix

Scan mode
Progressive, rolling shutter

Pixel size
2.0 μm x 2.0 μm

Filter
RGB

Mount
C-mount

Max fps
Up to 30 frames per second (2560 x 1920 pixels)
Up to 50 frames per second (1600 x 1200 pixels)
(Frame rates have been determined at optimal conditions)

Grayscale conversion
8 bits

Color depth
24 bits

Sensitivity
2.0 V/lux-sec @ 550 nm

Exposure
Automatic or manual, from 1 ms to 2 s

White balance
Automatic/manual

Dynamic range
72 db

Data interface
USB 2.0 at 480 Mb/s

Operation
0 – 60° C, 10-85 % humidity

Supplied with
0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereo microscopes, 76 x 24 mm calibration slide, USB stick with ImageFocus Plus software, carton box

Software
Windows 10 and higher (32 and 64 bit configurations) and Mac OS

Product number
DC.5000f

_____________________________________________________________________________

TECHNICAL SPECIFICATIONS CMEX-12 (DC.12000f)

Sensor
CMOS 1/2.3 inch

Pixels
3000 x 4000 pixels, 12.0 Mpix

Scan mode
Progressive, rolling shutter

Pixel size
1.33 μm x 1.33 μm

Filter
RGB

Mount
C-mount

Max fps
Up to 15 frames per second (4000 x 3000 pixels)
Up to 30 frames per second (2590 x 1944 pixels)
(Frame rates have been determined at optimal conditions)

Grayscale conversion
8 bits

Color depth
24 bits

Sensitivity
1.5 V/lux-sec @ 550 nm

Exposure
Automatic or manual, from 1 ms to 2 s

White balance
Automatic/manual

Dynamic range
59.5 db

Data interface
USB 2.0 at 480 Mb/s

Operation
0 – 60° C, 10-85 % humidity

Supplied with
0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereo microscopes, 76 x 24 mm calibration slide, USB stick with ImageFocus Plus software, carton box

Software
Windows 10 and higher (32 and 64 bit configurations) and Mac OS

Product number
DC.12000f

TECHNICAL SPECIFICATIONS CMEX-1 (DC.1300c)

Sensor
CMOS 1/2.5 inch

Pixels
1272 x 952 pixels, 1.3 Mpix

Scan mode
Progressive, rolling shutter

Pixel size
2.2 μm x 2.2 μm

Filter
RGB

Mount
C-mount

Max fps
Up to 15 frames per second (1272 x 952 pixels)
Up to 30 frames per second (632 x 472 pixels)
(Frame rates have been determined at optimal conditions)

ADC
10 bits

Color depth
24 bits

Sensitivity
1.3 V/lux-sec @ 550 nm

Exposure
Automatic or manual, from 1 ms to 300 ms

White balance
Automatic/manual

Dynamic range
72 db

S/N max
55 db

Data interface
USB 2.0 at 480 Mb/s

Operation
0 – 60° C, 45-85 % humidity

Storage temperature
-20 to 70° Celsius

Supplied with
0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for
stereomicroscopes, 76 x 24 mm calibration slide (1mm/100), USB stick with ImageFocus 4 software, carton box

Software
Windows 10 and higher (32 and 64 bit configurations)

Product number
DC.1300c

_____________________________________________________________________________

TECHNICAL SPECIFICATIONS CMEX-2f (DC.2000f)

Sensor
CMOS 1/2.9 inch

Pixels
1920 x 1060 pixels, 2.0 Mpix

Scan mode
Progressive, rolling shutter

Pixel size
2.8 μm x 2.8 μm

Filter
RGB

Mount
C-mount

Max fps
Up to 30 frames per second (1920x 1080 pixels)
(Frame rates have been determined at optimal conditions)

ADC
12 bits

Color depth
24 bits

Sensitivity
0.51 V/lux-sec @ 550 nm

Exposure
Automatic or manual, from 1 ms to 2 s

White balance
Automatic/manual

Dynamic range
72 db

Data interface
USB 2.0 at 480 Mb/s

Operation
0 – 60° C, 10-85 % humidity

Supplied with
0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereo microscopes, 76 x 24 mm calibration slide, USB stick with ImageFocus Plus software, carton box

Software
Windows 10 and higher (32 and 64 bit configurations) and Mac OS

Product number
DC.2000f

_____________________________________________________________________________

TECHNICAL SPECIFICATIONS CMEX-5f (DC.5000f)

Sensor
CMOS 1/2.8 inch

Pixels
1920 x 2560 pixels, 5.0 Mpix

Scan mode
Progressive, rolling shutter

Pixel size
2.0 μm x 2.0 μm

Filter
RGB

Mount
C-mount

Max fps
Up to 30 frames per second (2560 x 1920 pixels)
Up to 50 frames per second (1600 x 1200 pixels)
(Frame rates have been determined at optimal conditions)

Grayscale conversion
8 bits

Color depth
24 bits

Sensitivity
2.0 V/lux-sec @ 550 nm

Exposure
Automatic or manual, from 1 ms to 2 s

White balance
Automatic/manual

Dynamic range
72 db

Data interface
USB 2.0 at 480 Mb/s

Operation
0 – 60° C, 10-85 % humidity

Supplied with
0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereo microscopes, 76 x 24 mm calibration slide, USB stick with ImageFocus Plus software, carton box

Software
Windows 10 and higher (32 and 64 bit configurations) and Mac OS

Product number
DC.5000f

_____________________________________________________________________________

TECHNICAL SPECIFICATIONS CMEX-12 (DC.12000f)

Sensor
CMOS 1/2.3 inch

Pixels
3000 x 4000 pixels, 12.0 Mpix

Scan mode
Progressive, rolling shutter

Pixel size
1.33 μm x 1.33 μm

Filter
RGB

Mount
C-mount

Max fps
Up to 15 frames per second (4000 x 3000 pixels)
Up to 30 frames per second (2590 x 1944 pixels)
(Frame rates have been determined at optimal conditions)

Grayscale conversion
8 bits

Color depth
24 bits

Sensitivity
1.5 V/lux-sec @ 550 nm

Exposure
Automatic or manual, from 1 ms to 2 s

White balance
Automatic/manual

Dynamic range
59.5 db

Data interface
USB 2.0 at 480 Mb/s

Operation
0 – 60° C, 10-85 % humidity

Supplied with
0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereo microscopes, 76 x 24 mm calibration slide, USB stick with ImageFocus Plus software, carton box

Software
Windows 10 and higher (32 and 64 bit configurations) and Mac OS

Product number
DC.12000f

CMEX-2-5-12_product_datasheet_English
