Description

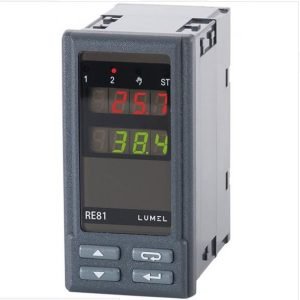

CONTROLLER – 2 OUTPUTS

The RE81 controller is destined for the temperature control in plastics, food, dehydration industries and everywhere when the temperature stabilizing is necessary.

The controller co-operates directly with resistance thermometers (RTD) or thermocouple sensors (TC),

The controller has two outputs enabling the two-step control, step by step three-step control and alarm signaling. The two-step control is acc. to the PID or ON-OFF algorythm.

The innovative SMART PID algorithm has been implemented in the controller.

• Control acc. to:

  • PID algorithm

  • ON/OFF algorithm

  • heating/cooling algorithm

  • step-by-step control

• Direct co-operation with:

  • resistance thermometer (Pt100)

  • or thermocouple (J, K, S)

• Automatic selection of PID parameters (acc. to the innovative SMART PID technology).

  • SMART PID Technology:

    • self-acting and precise selection of PID settings,

    • effective  control algorithm,

    • easy and simple solution for technical service,

    • lack of overshoots or small overshoots for a large range of objects in the automatic process of PID parameter selection.

• 2 configurable control outputs:

  • relay output or

  • voltage output for SSR relay control

• Configuration by means of keys or PD14 programmer and free eCon program

• Error signaling by means of messages

• IP65 protection level

• Password protection

• External dimensions: 48 x 96 x 93mm



The delivered controller set is composed of:

1. RE81 controller ………………………………………………………….1 pc

2. Plug with 5 screw terminals …………………………………………1 pc

3. Plug with 8 screw terminals …………………………………………1 pc

4. Screw clamp to fix the controller in the panel ………………… 4pcs

5. Seal ………………………………………………………………………….1 pc

6. User’s manual ……………………………………………………………1 pc

7. Guarantee card ………………………………………………………….1 pc

When unpacking the controller, please check whether the type and execution code on the data plate correspond to the order.
