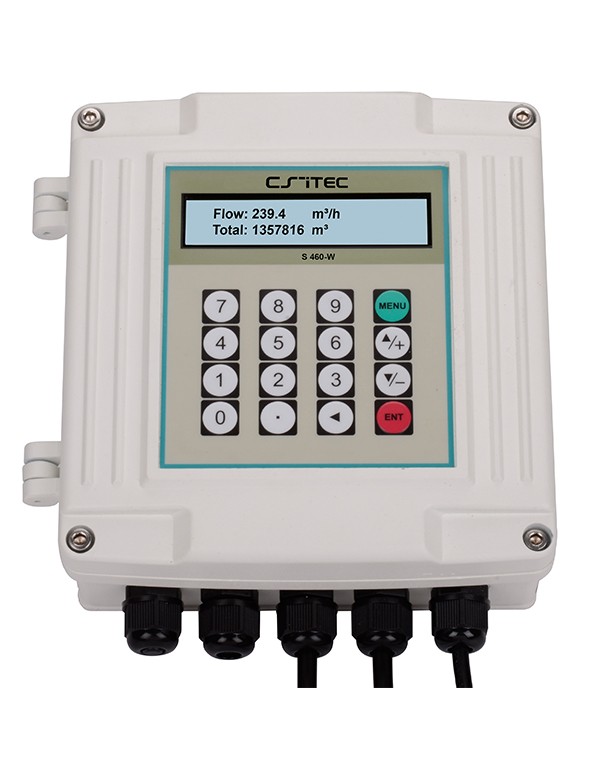

CS 460-W, Ultrasonic Controller for Liquid Flow Sensor
$1,210.43
CS 460-W, ultrasonic flow meter controller, wall mountable, including 5 m connection cable to transducers, metal stretcher and coupling agent
Manufacturer: CS-iTEC
Product code: AME-5044-2
- Description
- Size Guide
- Vendor Info
- More Products
Description
CS 460-W, ULTRASONIC CONTROLLER FOR LIQUID FLOW SENSOR
The S 460 ultrasonic flow sensor uses the proven clamp-on transit-time correlation technique. The ultrasonic transducers are simply clamped onto the outside of the pipe and never come in contact with the fluid.
The transducers are connected to a controller which is available as hat rail, wall mountable or portable version. The stationary models are connected to the S 330/331 series of displays and data loggers.
Application
Measurement of liquid flows and consumption such as:
- Chemical addition
- Cooling and heating water
- Drinking water
- Broad range of refined hydrocarbons
- Potable water
- De-ionized and demineralized water
- Sanitary flow rate measurements
- Purified water
Product features
- Easy to install for permanent and temporary installations
- High accuracy
- Physical units can be selected
- Excellent price performance
- Suitable for DN15 – DN6000
- Plug & play for CS-iTEC display & data logger
- Data analysis via CSM software
Technical data
| Power supply | DC 8 … 36 V, AC 85 … 264 V |
| Velocity range | 0.03 … 30 m/s |
| Repeatability | 0.2 % |
| Accuracy | 1% |
| Temperature sensor | PT100 3 wire |
| Output | 4 … 20 mA |
| Communication | Modbus RTU, Modbus ASCII |
| Pipe sizes | 15 … 6000 mm (depend on transducer type, inner diameter) |
|
Temperature range transducer |
-30 … 80 ºC -30 … 90 ºC (standard) |
| Physical units | Selectable |
| Supply | 24 V DC / 1.5 W |
| Dimensions: | Wall version: 190 x 155 x 85 mm Portable version: 177 x 177 x 60 mm |
