Current Clamps AC C-6
$475.28

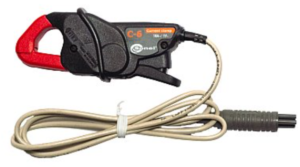

Current Clamps AC C-6
Manufacturer: Sonel S.A
Product code: WACEGC60KR
Split-Core current clamps are used for measuring alternating currents. They are terminated with a 5-pin connector.
The value of the rated current of the presented model is 10 A, and the diameter of the covered conductor is maximum 20 mm.
- Description
- Size Guide
- Vendor Info
- More Products
Description
Current Clamps AC C-6
Split-Core current clamps are used for measuring alternating currents. They are terminated with a 5-pin connector.
The value of the rated current of the presented model is 10 A, and the diameter of the covered conductor is maximum 20 mm.
| Clamp | C-4 | C-5 | C-6 | C-7 | F-1 | F-2 | F-3 | F-4 |
| Rated current | 1000 A AC | 1000 A AC 1400 A DC |
10 A AC | 100 A AC | 3000 A AC | |||
| Max. overload current | 1200 A AC | 1000 A AC 3000 A DC |
20 A AC | 100 A AC | 10k A AC | |||
| Minimal measurable current |
100 mA | 500 mA | 10 mA | 20 mA | 1 A | |||
| Frequency | 30 Hz…10 kHz | Dc…5 kHz | 40 Hz…10 kHz | 40 Hz…1 kHz | 40 Hz…10 kHz | |||
| Input signal level | 1 mV / 1 A | 1 mV / 1 A | 100 mV / 1 A | 5 mV / 1 A | 38,8 μV / 1 A | |||
| Max. diameter of measured cord |
52 mm | 39 mm | 20 mm | 24 mm | 360 mm | 235 mm | 120 mm | 630 mm |
| Open clamp length | — | — | — | — | 120 cm | 80 cm | 45 cm | 200 cm |
| Minimal basic accuracy |
≤ 0,5% | ≤ 1,5% | ≤ 1% | 0,5% | 1% | |||
| Battery power supply | — | + | — | — | — | |||
| Lead length | 2,2 m | 2,2 m | 2,2 m | 3 m | 2,2 m | |||
| Measurement category | IV 300 V | IV 300 V | IV 300 V | III 300 V | IV 600 V | |||
Standard accessories for PQM-700, PQM-701, PQM-701Z, PQM-701Z
