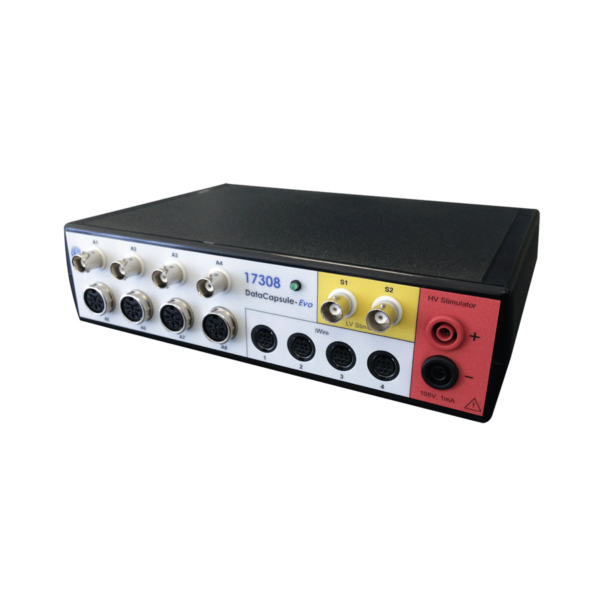

DataCapsule-Evo (8 channel) Digital Recorder
Description Of DataCapsule-Evo (8 channel) Digital Recorder
Versatile, feature-rich physiological data acquisition system
- The DataCapsule-Evo by iWorx is a versatile, feature-rich physiological data acquisition system, with best-in-class software for data analysis.
- High resolution (16-bit ADC) and high sensitivity compared to conventional recorders. Over 4+4 channels, plus 4 iWire channels.
- Advanced and feature-rich system with eight digital inputs and outputs, a low voltage and high voltage stimulator, a built-in barometric pressure sensor, and four iWire inputs.
- Each channel is independent, each having its own 16 bit analog-to-digital converter.
- Set-up is plug-and play easy. USB connection to PC or Apple computers.
- Versatile LabScribe software provided with the system for data acquisition and analysis.
- Each channel is equipped with dual, low voltage, independently programmable 16-bit +/- 15V stimulators. Parameters for the stimulators, such as pulse width, frequency & amplitude, may be changed on the fly. Standard protocols include Pulse, Train, Step, Triangle, Ramp, and Custom.
- Maximum sampling speed is 100,000 samples per second aggregate, which makes it well suited for a broad range of physiological recordings.
- Input trigger to start recording
- High resolution and sensitivity

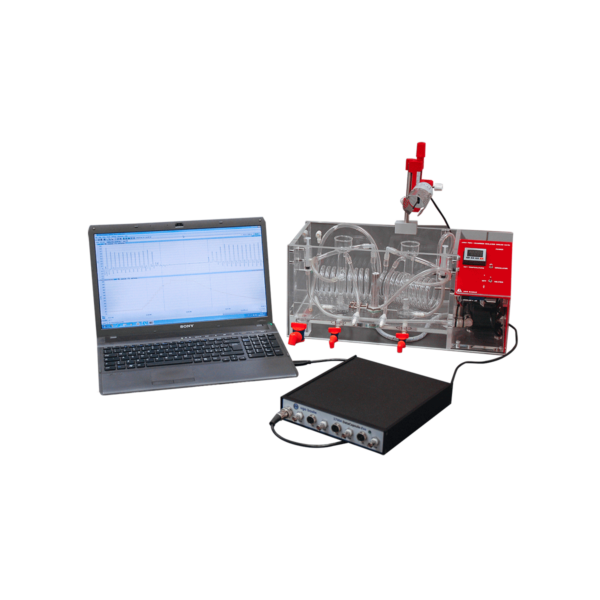

- Connections for a wide range of sensors, transducers, and other devices from Ugo Basile.
| Features | Benefits |
|---|---|
| USB Connection to PC and MAC | LabScribe4 Software included |
| DIN inputs and BNC outputs | Connectors for most transducers |
| Input trigger to start recording | High resolution and sensitivity |
| 4 channels: each channel is independent | Each channel equipped with programmable stimulator |
| Input | |
|---|---|
| Analog inputs | 8 independent amplified channels |
| Input resolutions | 24 bits differential |
| Sample Speed | 1, 2, 5, 10, 20, 50, 100, 200, 500, 1K, 2K, 5K samples/second |
| Input range | ±10 V |
| Excitation voltage | ±5 VDC @ 100mA per channel |
| Input impedance | 667 Gig tup./182 Gig Min. |
| Trigger Mode | External trigger /TTL or Contact Closure), Threshold Trigger from Data, User Trigger |
| System Noise | 32 Microvolts |
