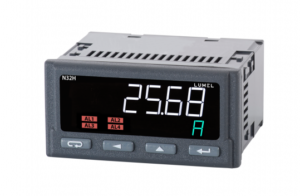

Digital meter of DC circuit parameters N32H
Digital meter of DC circuit parameters N32H
Manufacturer: LUMEL
Model: N32H
Description
From the Q1 of 2021 the offer of Lumel digital meters has been extended by the introduction of N32H a programmable meter for DC circuit parameters
N32H meter distinguishes:
– modern and easy-to-read LCD display
– universal measuring input
– RS-485 digital output as a standard.
- Description
- Size Guide
- Datasheet
- Service Manual
- Vendor Info
- More Products
Description
Digital meter of DC circuit parameters N32H
Description
From the Q1 of 2021 the offer of Lumel digital meters has been extended by the introduction of N32H a programmable meter for DC circuit parameters
N32H meter distinguishes:
– modern and easy-to-read LCD display
– universal measuring input
– RS-485 digital output as a standard.
Characteristics
- voltage measurement ±600V (maximum range display ±1200 v), current measurement via shunt, power, energy and capacity measurement of d.c. circuits
- two-line LCD display with high contrast and built-in backlighting
- possibility of displaying the measured value and time simultaneously or an second measured value or unit (automatically displayed unit of measured quantity)
- wide range of voltage measurement at the shunt input up to 1500 mV
- high sampling frequency of measured signals
- programming parameters via buttons or rs-485 interface and free e-con software
- 4 alarm outputs with signaling on led diodes, working in 7 different modes (option)
- pulse output to control energy consumption
- conversion of any measured value into an analog signal 0/4…20 mA or 0…10V (option).
- memory of minimal and maximal values for all measured quantities.
- automatic voltage measurement compensation function alarms
- overall dimensions: 96 x 48 x 93 mm.
