$265.99

MANUFACTURER: LUMEL

MODEL: N30B

SKU: AMA-5125-26
Add to wishlist

Description

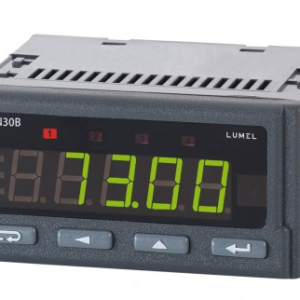

DIGITAL PANEL RECORDER

DIGITAL PANEL RECORDER

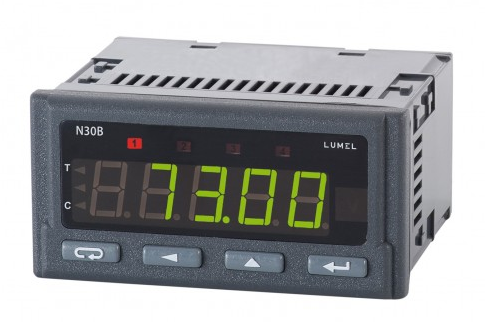

DESCRIPTION OF DIGITAL PANEL RECORDER

The N30B recorder is a panel programmable digital instrument, destined to display and archive digital values from connected devices through the RS-485 interface. Additionally, the recorder enables to show the actual time. The readout field is composed of a LED display which allows the exposition

of results in colours: red, green and orange. The measured readout values can be freely converted by means of the 21-point individual characteristic.

Features of the N30B recorder:

• Display colour programmed individually in three intervals.

• Programmable thresholds of displayed overflows.

• Two relay alarms with NOC contacts operating in 6 modes.

• Two relay alarms with switching over contact operating in 6 modes (option).

• Signalling of the measuring range overflow.

• Automatic setting of the decimal point.

• Programming of alarm and analog outputs with reaction on the selected input quantity (any register read out or recorded or real time lock).

• Real time lock with the supported supply function of the clock in case of a recorder supply decay.

• Automatic change of time from the summer to winter time and inversely (this function can be disabled).

• Programmed averaging time – function of walking window with the averaging time up to 1 hour.

• Monitoring of set parameters.

• Locking of introduced parameters by means of a password.

• Recounting of measured value on the base of a 21-point individual characteristic.

• Data archiving in data internal memory with a capacity of 308000 records.

• Any configuration of the archived data – any values with established time intervals can be archived.

• Conditional archiving – archiving of alarm states.

• Service of MMC / SD cards with capacity up to 4GB –

– serviced system of FAT and FAT32 files.

• Automatic copying of the internal archive on the memory card.

• Signalling of the transmission state and the memory card state on the recorder display.

• Service of the interface with MODBUS protocol in RTU mode (implemented Master and Slave mode.

• Data readout of 10 devices with 10 registers in each device.

• Monitoring of readout/recorded register values directly accessible from the recorder keyboard.

• Retransmission of read out/recorded quantities into a standard, programmable current or voltage signal (option).

• Backlight of any measuring unit as per order.

• Signalling of alarm operation – The alarm supply causes the backlight of the output number.

• Galvanic separation between terminals: alarming, supplying, analog, RS-485 interfaces ( port 1 and port 2).

• Protection grade from frontal face: IP65, overall recorder dimensions: 96 x 48 x 93 mm (with terminals). The recorder casing is made of plastics.
