DIGITAL TEMPERATURE CONTROLLER / PID / PROGRAMMABLE

DESCRIPTION OF DIGITAL TEMPERATURE CONTROLLER / PID / PROGRAMMABLE

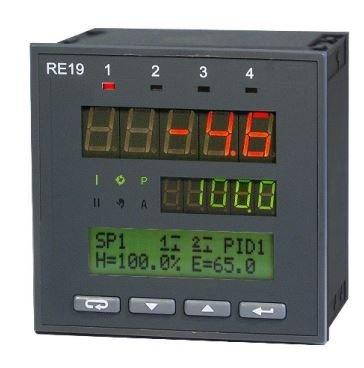

The RE19 dual loop controller/programmer is destined to control the temperature and other physical quantities, e.g. pressure, humidity, level or flow converted into an electrical signal.

The controller can operate two controlled systems or control two physical quantities in one object, e.g. temperature and humidity or a two-zone furnace.

The controller is available in three versions:
RE19S for control with fixed set-point, with regard to the so-called soft-start and the possibility to switch the set-point by the logic input,
RE19P – for programmed control, in which the set-point changes in time, acc. to a chosen program – 15 programs with 15 segments in each,
RE19V for stepper motor control two control algorythms at choice, with or without a reflexive signal.

It can independently control two objects or two physical quantities

in one object, e.g. in two-zone furnaces.

This controller is available in three versions:

RE19 S           for standard (fixed set point) control,

RE19 P           for standard control or programmed control

– 15 programs with 15 segments in each program,

RE19 V           for standard control by motorised valve control

– at choice, 2 algorithms of stepper control,

with or without feedback.

The controller can be equipped with the RS-485 interface with

MODBUS protocol.

The set of each delivered controller includes:

– RE19 controller               1 pc.

– user’s manual                  1 pc.

– warranty card                 1 pc.

– holder to fix in a panel              2 pcs.

–           for controllers with interface
