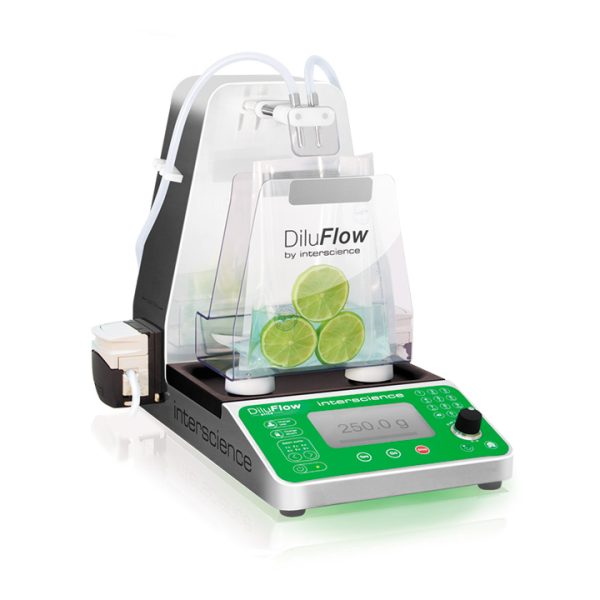

DiluFlow Elite 5kg
DiluFlow Elite 5kg
Model: Ref 503 105 (single pump)
Ref 503 205 (double pump)
Manufacturer: INTERSCIENCE
The DiluFlow Elite automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, up to a total weight of 5 kg.
Features of DiluFlow Elite 5kg
- 225 mL in 8 seconds
- Dilution factor: 1/2 to 1/1000, customizable fractions
- Dilution accuracy: > 99 %*
- Max weight: 5000 g
- Max number of pumps: 2 integrated + 4 external
- Description
- Size Guide
- Additional information
- Specifications and Brochure
- Vendor Info
- More Products
Description
DiluFlow Elite 5kg
Model: Ref 503 105 (single pump)
Ref 503 205 (double pump)
Manufacturer: INTERSCIENCE
The DiluFlow Elite automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, up to a total weight of 5 kg. Its full traceability enables the recording of all operations. It is programmable and connectable for up to 6 diluents and offers the best solution to dilute any type of sample.
TECHNICAL SPECIFICATIONS OF DILUFLOW ELITE 5KG
| Reference | 503 105 DiluFlow Elite 5 kg (single pump) | 503 205 DiluFlow Elite 5 kg (double pump) |
| BagOpen height < 30 cm | Y | Y |
| Removable drip tray (patented) | Y | Y |
| BagOpen with GeckoGrip system (patented) | Y | Y |
| Magnetic stand for BagOpen (patented shape) | Y | Y |
| LightCode: color status LED | Y | Y |
| Compatible with booster kit | Y | Y |
| 304L stainless steel body | Y | Y |
| Stainless casting electromechanical core | Y | Y |
| Robotic arm | Y | Y |
| Compatible with Jumbo kit | Y | Y |
| Protection for tubing nozzle | Y | Y |
| Up to 6 pumps | Y | Y |
| Multi-dispensing mode (patented) | Y | Y |
| Powder mode | Y | Y |
| 24 editable programs | Y | Y |
| Bidirectional connectivity | Y | Y |
| Auto-tare function | Y | Y |
| Weighing mode | Y | Y |
| Resolution up to 200 g | 0.01 g | |
| Weighing range | 0.1 to 5000 g | |
| Max weight without support | 7000 g | |
| Weighing accuracy | 0 g to 100 g: ± 0.05 g / 100 g to 5000 g: ± 0.1% | |
| Minimum weight required for dilution | 5 g | |
| Minimum weight required for distribution | 5 g | |
| Dilution factor | 1/2 to 1/1000, customizable fractions | |
| Dilution/distribution accuracy | > 99% in Standard or Accurate mode (in optimal conditions) | |
| Dilution time for a 25g sample diluted to 1/10 | < 8 s (with booster kit in Fast mode) | |
| Dilution time for a 375g sample diluted to 1/10 | < 75 s (with booster kit in Fast mode) | |
| Distribution time for 90 mL | < 6 s (with booster kit in Fast mode) | |
| Distribution time for 225 mL | < 9 s (with booster kit in Fast mode) | |
| Max number of pumps | 2 integrated + 4 external | |
| Dilution/distribution mode | Fast / Standard / Accurate | |
| Traceability | Printer / Export to ExcelTM file / CSV file Export on USB key / LIMS | |
| Exported data | Sample weight / Total weight / Dilution factor / Dilution accuracy / Diluent / Sample number / Diluent lot number / Date / Time / Last calibration date / Name of operator / Name of program | |
| Connection | 2 USB ports (type A) to connect a printer, keyboard, bar-code reader, USB key / 1 USB port (type B) to connect a computer / Jack socket to connect a foot pedal / Handy gun / Ethernet connection for LIMS | |
| Net weight | 12.8 kg | 15.3 kg |
| Dimensions (w x d x h) | 31.3 x 42.1 x 37.7 cm | 37 x 42.1 x 37.7 cm |
| Box (w x d x h) | 55 x 55 x 53 cm | |
| Gross weight | 18.8 kg | 21.4 kg |
| Language | English, French | |
| Voltage – Frequencies | 100-240 V~ 50/60 Hz | |
| Fuses | T3.15A L 250V 5×20 mm | |
| Power | 60 W | |
| International protection marking | 32 | |
| Warranty | 1 year | |
| In compliance with | ISO 7218 – ISO 6887 | |
 |
Delivered with: 1 drip tray 400, 1 or 2 pumps, 1 protection for distribution nozzle, 1 distribution assembly (GL45 – Ø 6,4 mm) per pump, 1 USB key, 1 USB cable, 1 power cord, 1 BagOpen 400 for diluters, User’s Manual, 1 conformity certificate, 1 warranty card, 10 GeckoGrip, 1 pack of adhesive putty, 1 Allen wrench, blender bags samples | |
PRODUCT SHOW
Additional information
| MODEL | Ref 503 105 (single pump), Ref 503 205 (double pump) |
|---|
