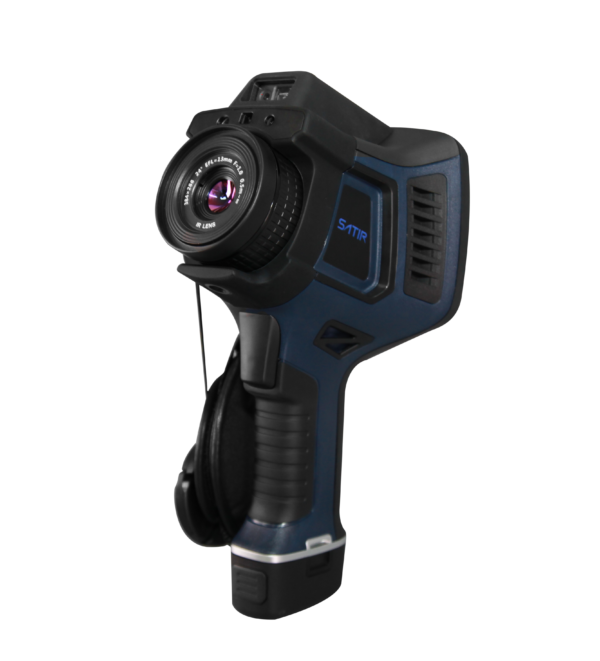

DX-600 (-20℃ to 650℃) with 24° lens
DX- 600 | Industrial Thermal Camera
SATIR are pleased to announce the release of the DX-600, an industrial handheld thermal camera. The DX-600 is a performance level camera as it has 640×480 IR resolution. The temperature range for the model is -20°C~+650°C, with an optional range of up to +2000°C available upon request. They have 10 colour palettes and a range of analysis tools such as 10 movable spots, 10 area boxes and 5 lines, Average temp, Max temp, Min temp. To capture all the video and images the models has a 32GB removable SD Card.
Key features:
- 5″TFT touch screen
- 5MP visual camera
- Better performance with ±2°C accuracy
- IR image/Visual image/PIP/Fusion/IMIX
- Professional analysis software
- Optional lens: 48°/12°/6°
- Android App
Specifications:
Model |
DX-600 |
||
| Detector type | FPA, Uncooled Microbolometer with Amorphous silicon or VOX material | ||
| IR Resolution | 640×480 | ||
| Thermal Sensitivity/NETD | <0.040°C@30°C | ||
| Spectral Range | 7.5~14μm | ||
| Field of View | 24°×18° | ||
| Spatial resolution (IFOV) | 0.66mrad | ||
| Focal Length | 18mm | ||
| Focus | Manual/electric/automatic | ||
| Minimum Focus distance | 0.15m | ||
| Optional lens | 48°/ 12°/ 6° | ||
| Image frequency (Frame rate) | 30Hz | ||
Image Display |
|||
| Display | 5″sunlight visible touch screen | ||
| Display resolution | 800×480 | ||
| Colour Palettes | 10 colour modes | ||
| Visible camera | 5MP with LED photo lamp | ||
| Digital zoom | 1x-8x continuous | ||
Measurement & Analysis |
|||
| Object temperature range | -20°C~+650°C, Up to +2000°C(optional) | ||
| Temperature measurement accuracy | ±2°Cor ±2% of readings | ||
| Analysis tools | 10 movable spots, 10 area boxes and 5 lines, Average temp, Max temp, Min temp | ||
| Measurement Correction | Emissivity, reflected temperature, relative humidity, object distance, offset temperature, ambient temperature |
||
| Tracking function | Highest temperature spot auto tracking | ||
Image storage And Transmission |
|||
| Storage Media | 32G removable SD card | ||
| Thermal image format | Standard JPEG/JPG/PNG | ||
| Thermal video format | Real-time radiometric recording(.irv)/.H264 | ||
| Output Ports | USB, Bluetooth, HDMI | ||
| Video Record | Support | ||
| Wi-Fi | Support, support preview SD card pictures through Wi-Fi | ||
| Laser distance | Position is automatically displayed on the infrared image | ||
| Laser pointer | Yes | ||
| Laser ranging | Yes, 40 meters | ||
| GPS | Support, Location data automatically added to every still image and the first frame in video | ||
| Features Mode | Auto shutdown & Sleep mode | ||
| Alarm mode | Automatic acousto-optic alarm for set temperature value/above/below | ||
Power System |
|||
| Battery type | Detachable rechargeable lithium battery | ||
| Battery Operating Time |
|
||
| Charging System | AC adapter universal 220 Vac, 50 Hz | ||
| Charging mode | Two-socket charger or 12V car charge | ||
Environmental |
|||
| Protection level | IP54 (IEC 60529) | ||
| Shock/Vibration | 25G/2G | ||
| Operation temperature | -20°C~55°C | ||
Physical Characteristics |
|||
| Weight | 1.25kg(battery included) | ||
| Size | 272x135x136mm | ||
Others |
|||
| Accessories | Hardcase, Handstrap, Bluetooth Mic, Cables, Adaptor, Manual Book, Software SATIR Report Pro | ||
