Description

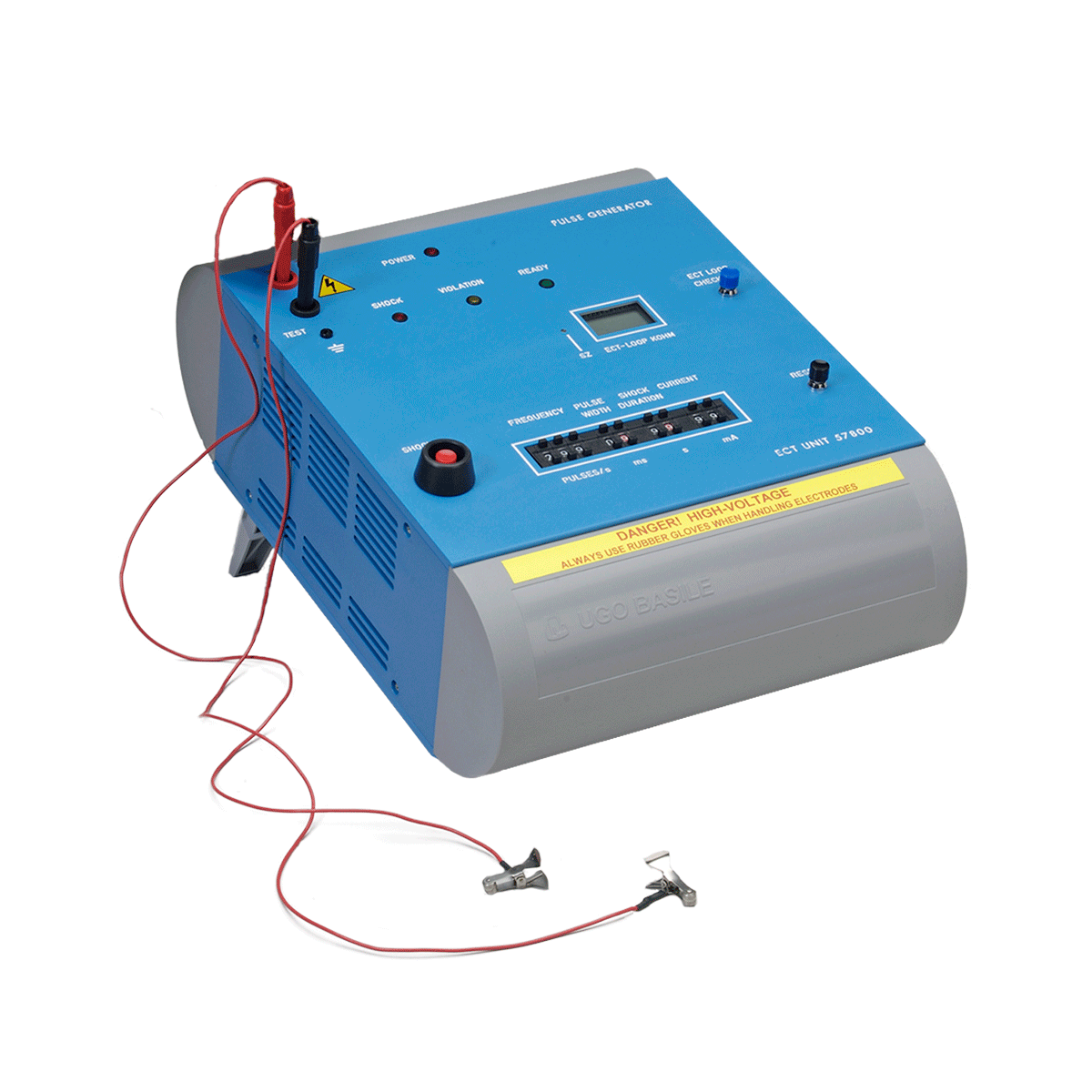

ECT Unit (Electroconvulsive-Therapy) – threshold detection
Description Of ECT Unit (Electroconvulsive-Therapy) – threshold detection
Background
- Particularly useful for neurochemical and neuropharmacological research such as;
- General screening of potentially neurotropic substances
- Evaluating the depressant or stimulating action of drugs on the CNS
- Endocrinological investigations on the relationship between the nervous system and the hypophysis.
Accurate and reproducible
- A constant current stimulator ensures reproducible results and accurate determination of the EC threshold.
- The impedance to the animal can be pre-measured and displayed. A warning is provided if the impedance is too great to deliver the desired current level, rather than the most suitable range for mice or rats.
- The Electroconvulsive Device is supplied with auricular (ear lobe) electrodes that allow an operator to deliver shock to a number of animals in a short time.
- Pinpoints variations in the threshold affected by drug action on cortex and sub-cortical regions.
- Can be used with other electrodes allowing for virtually any procedure.
- Analog output for connection to an oscilloscope or data acquisition system.
- An optional Biphasic Unit box may be placed between the animal and the Electroconvulsive Device to invert every other pulse. Maximum frequency in this case becomes 100Hz.
- Corneal electrodes are optional. Also custom designed electrodes are available on request.
| Feature | Benefit |
|---|---|
| Optional analogue output | Can be connected to oscilloscope |
| Any type of electrode can be used | Allows for virtually any procedure |
| Feedback circuitry | Compensates for impedance variability due to animal-electrode contact |
| Physical | |
|---|---|
| Dimensions | 2×2 mt, height (maze walls) 51 cm, height (maze walls + maze base with wheels) 86,5 cm |
| Total Weight | 486 kg |
| Shipping dimensions | Pallet 2,3(l)x2,3(d)x1,1(h) |
| Shipping weight | 600 kg |
|
Warranty |
|
| Warranty | Cincinnati Maze is covered by a 12-month warranty + 12 after product registration. |
