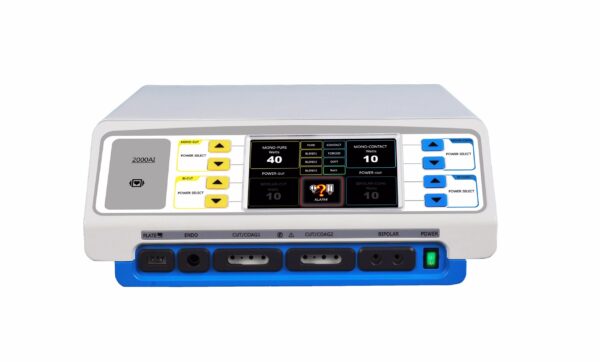

HIGH FREQUENCY ELECTROSURGICAL UNIT PT2000AI
$5,781.18
HIGH FREQUENCY ELECTROSURGICAL UNIT
Model : PT2000AI
Manufacturer: PERLONG MEDICAL EQUIPMENT
TECHNICAL SPECIFICATIONS
- Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
- Power rating: 1100VA±10％
- Power Consumption: ≤1100VA
- Description
- Size Guide
- DATA SHEET OF ELECTROSURGICAL UNIT PT2000AI
- Vendor Info
- More Products
Description
HIGH FREQUENCY ELECTROSURGICAL UNIT
Model : PT2000AI
Manufacturer: PERLONG MEDICAL EQUIPMENT
Technical Specifications:
- Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
- Power rating: 1100VA±10％
- Power Consumption: ≤1100VA
Related Power Output:
| Function | Working Modes | Power Output
(Max) |
Load | Frequency | V-PP | Crest
Factor |
|
Monopolar Cut |
Pure cut | 400W | 800Ω |
512KHz |
2.6kV | 1.5 |
| Blend1 | 300W | 800Ω | 4KV | 1.8 | ||
| Blend2 | 200W | 800Ω | 4.2KV | 2.1 | ||
| Blend3 | 150W | 800Ω | 4KV | 2.7 | ||
| Monopolar Coagulation | Spray | 80W | 800Ω | 5.3KV | 7.4 | |
| Forced | 120W | 800Ω | 5KV | 3.8 | ||
| Soft | 120W | 800Ω | 720V | 1.6 | ||
|
Bipolar |
Standard coag | 70W | 200Ω | 1024KHz | 550V | 1.6 |
| Macro-bipolar | 120W | 200Ω | 350V | 1.6 |
TECHNICAL SPECIFICATIONS
Related Power Output:
| Function | Working Modes | Power Output
(Max) |
Load | Frequency | V-PP | Crest
Factor |
|
Monopolar Cut |
Pure cut | 400W | 800Ω |
512KHz |
2.6kV | 1.5 |
| Blend1 | 300W | 800Ω | 4KV | 1.8 | ||
| Blend2 | 200W | 800Ω | 4.2KV | 2.1 | ||
| Blend3 | 150W | 800Ω | 4KV | 2.7 | ||
| Monopolar Coagulation | Spray | 80W | 800Ω | 5.3KV | 7.4 | |
| Forced | 120W | 800Ω | 5KV | 3.8 | ||
| Soft | 120W | 800Ω | 720V | 1.6 | ||
|
Bipolar |
Standard coag | 70W | 200Ω | 1024KHz | 550V | 1.6 |
| Macro-bipolar | 120W | 200Ω | 350V | 1.6 |
