$27,211.75

HIGH FREQUENCY MOBILE C-ARM SYSTEM

Model: XM113B

Manufacturer: PERLONG MEDICAL EQUIPMENT

FEATURES OF HIGH FREQUENCY MOBILE C-ARM SYSTEM XM113B

  • With HF & HV generator,inverter,and High quality image intensifier, the x ray generator can work stably.
  • 10.4″LCD friendly interface control board: easy operation and can be rotated to 180°.
  • Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.
  • With a steering handle, it can adjust the direction quickly when moving.
  • Equipped with unique block line wheels, it can avoid accident when the machine moves.



SKU: EA-9226-25
Add to wishlist

Description

HIGH FREQUENCY MOBILE C-ARM SYSTEM

Model: XM113B

Manufacturer: PERLONG MEDICAL EQUIPMENT

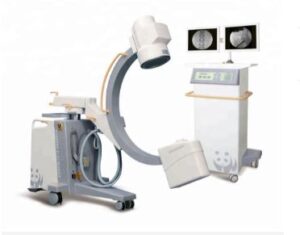

HIGH FREQUENCY MOBILE C-ARM SYSTEM XM113C

























FEATURES OF HIGH FREQUENCY MOBILE C-ARM SYSTEM XM113B

  • With HF & HV generator,inverter,and High quality image intensifier, the x ray generator can work stably
  • 10.4″LCD friendly interface control board: easy operation and can be rotated to 180°(L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in Chinese
  • Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.
  • With a steering handle, it can adjust the direction quickly when moving.And  parallel movement function is also available.
  • Equipped with unique block line wheels, it can avoid accident when the machine moves
  • Large free space in arc: the space can reach 800mm,which is convenient for operation.
  • 9″/6″/4.5″ three fields of vision:it facilitates diagnosis of partial enlargement.
  • CCD camera with rotation function:range of camera rotation:360°.
  • Original Korean linear slide rail can make the the movement of the machine flexibly.
  • Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased.

SPECIFICATIONS OF HIGH FREQUENCY MOBILE C-ARM SYSTEM XM113B

MODEL XM113B
HF generator 110kV,3.5kW ,40kHz




Fluoroscopy mode

 Fluoroscopy mode40~110kV 0.5~5mA

(KV manual and automatic);

Pulsd fluoroscopy 40~110kv  0,5-5mA

Boost fluoroscopy 40~110kV 5~10mA;

Photography 40~110kV  1~250mAs


X ray tube

 Dual-focus fixed anode:0.6mm/1.5mm




Image intensifier Three fields of vision 9, 6, 4.5   French Thales Brand
CCD camera CCD camera, Japanese Watt Brand, 360° rotation




Image system

 Recursive Noise Reduction

Frame freezing

Multi frame image storage

Image conversing and rotating

Screen display with image comparison


Mechanical motion specifications Vertical travel:0400mm

Horizontal travel:0~200mm

Rotation about horizontal axis:±180°




C-arm dimension

 Distance of focal spot to image generator(SID):100m

Depth in arm≥650mm

Mobile stand :1800mm*800mm*1850mm

Image system: 750mm*530mm*1680mm






Standard configuration

 High resolution CCD camera:1set

x-ray generator:1set

9” image intensifier:1set

Digital Noise reduction system

14” High resolution monitor :2sets

Mobile stand :1 set



PRODUCT SHOW

HIGH FREQUENCY MOBILE C-ARM SYSTEM XM113B



HIGH FREQUENCY MOBILE C-ARM SYSTEM XM113B









MODEL XM113B
HF generator 110kV,3.5kW ,40kHz




Fluoroscopy mode

 Fluoroscopy mode40~110kV 0.5~5mA

(KV manual and automatic);

Pulsd fluoroscopy 40~110kv  0,5-5mA

Boost fluoroscopy 40~110kV 5~10mA;

Photography 40~110kV  1~250mAs


X ray tube

 Dual-focus fixed anode:0.6mm/1.5mm




Image intensifier Three fields of vision 9, 6, 4.5   French Thales Brand
CCD camera CCD camera, Japanese Watt Brand, 360° rotation




Image system

 Recursive Noise Reduction

Frame freezing

Multi frame image storage

Image conversing and rotating

Screen display with image comparison


Mechanical motion specifications Vertical travel:0400mm

Horizontal travel:0~200mm

Rotation about horizontal axis:±180°




C-arm dimension

 Distance of focal spot to image generator(SID):100m

Depth in arm≥650mm

Mobile stand :1800mm*800mm*1850mm

Image system: 750mm*530mm*1680mm






Standard configuration

 High resolution CCD camera:1set

x-ray generator:1set

9” image intensifier:1set

Digital Noise reduction system

14” High resolution monitor :2sets

Mobile stand :1 set
