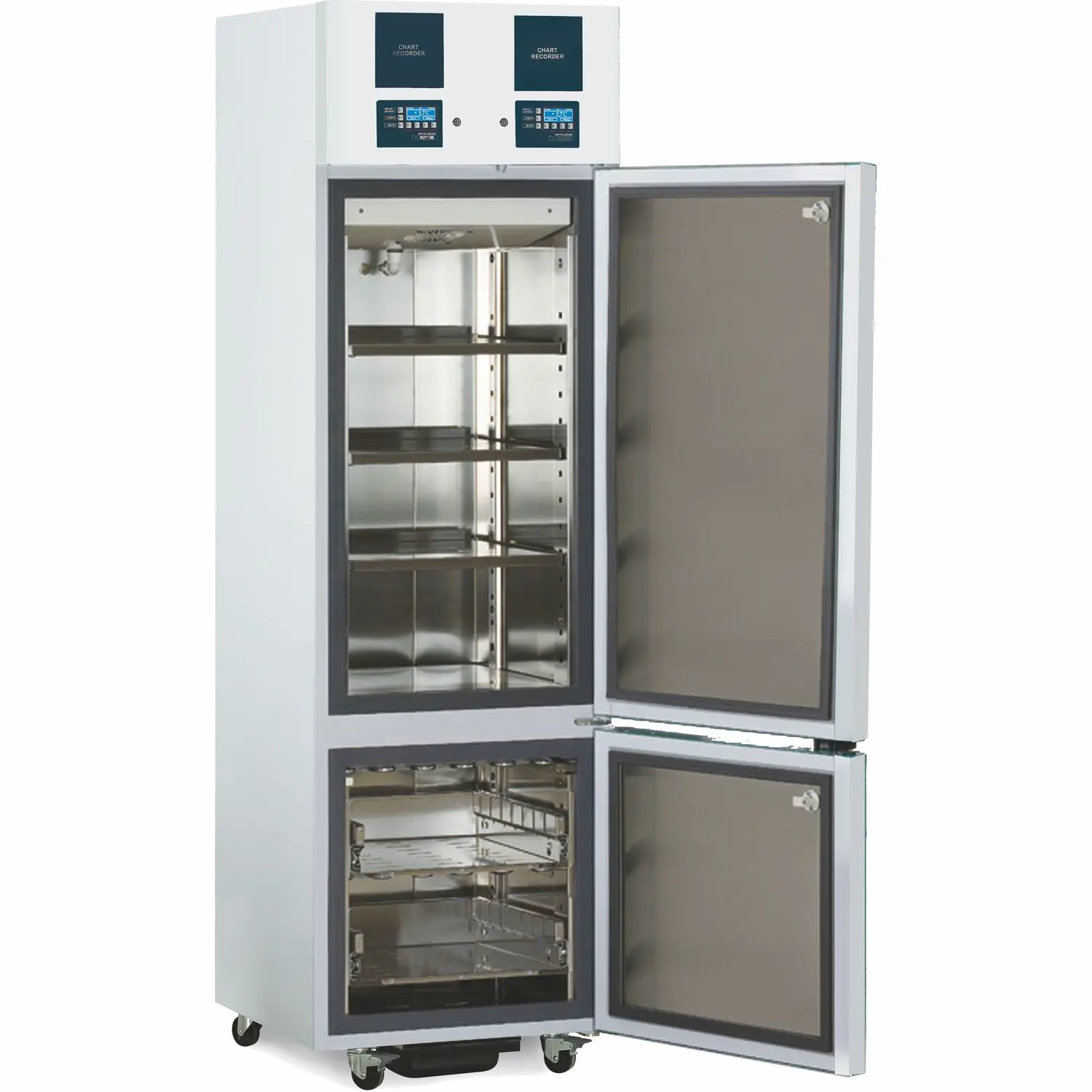

Laboratory freezer DS-FC39/2
Laboratory freezer DS-FC39/2

Laboratory freezer DS-FC39/2

DS-FS30V Lab Pro Series 300lt Glass Door Laboratory Refrigerator DS-FS30V Lab Pro Series 300lt Glass Door Laboratory Refrigerator
Grindometer 15 Grind Gages – µm / Hegman, 2 paths

$6,070.53

MANUFACTURER: DESMON SCIENTIFIC

CAT NO: DS-FC39/2

SKU: AME-11924-95
Add to wishlist

Description

Laboratory freezer DS-FC39/2



Laboratory freezer DS-FC39/2



CHARACTERISTICS

Applications – Laboratory
Configuration – Cabinet, on casters
Number of doors – 2 door
Defrost mode: Automatic defrost, manual defrost
Other characteristics: Combination
Capacity – 280 l (74 gal)
Temperature range:
Max: 12 °C (53.6 °F),
Min: -25 °C (-13 °F)

STRUCTURE

Exterior dimensions WxDxH (mm): 600x600x1960

Capacity (L)

Compartment 1: 180

Compartment 2: 100

Insulation (mm): 60

Temperature range: (˚C)

Compartment 180 Lt: +2° +12°

Compartment 100 Lt: -10° -25°C

Max. ambient temperature (˚C): 43

Type of cooling unit: Ventilated/ Static

Power supply (V): 220V/240V

Frequency (Hz): 50

Power consumption (W): 300

Weight (KG): 121

Shipping weight (KG): 134

Shipping dimensions WxDxH (mm): 680x680x2150

No. of compressor: 2

Doors: 2

Defrost: Automatic/ Manual

Wheels: standard

Chart recorder: optional

Racks/ Drawers (Refrigerator / Freezer)

3 Racks

2 Drawers

Lock: yes

Lighting: yes

Interior material: s/steel AISI304

Exterior material: hot-dip galvanised steel, anti-corrosion treated and white PVC film coated

Gas: R404a



CHARACTERISTICS

Applications – Laboratory
Configuration – Cabinet, on casters
Number of doors – 2 door
Defrost mode: Automatic defrost, manual defrost
Other characteristics: Combination
Capacity – 280 l (74 gal)
Temperature range:
Max: 12 °C (53.6 °F),
Min: -25 °C (-13 °F)

LAB PRO CONTROLLER FEATURES

End user interface Display: LED

Resolution (°C):  0,1

Maximum Number of Probes: 3

Internal Led Light: yes

Acoustic alarm: yes

Hot gas advanced defrost: yes

ALARMS AND FAILURES (ACOUSTIC AND VISUAL)

HACCP function: yes

“Power failure” (back up battery) Alarm: yes

“High / low temperature” Alarm: yes

“Open door”Alarm: yes

“Sensor fault”Alarm: yes

Clogged condenser Alarm: yes

Temperature datalogger with USB port: yes

CONNECTIONS

RS 485 interface: Optional

Porta Ethernet (LAN): Optional

SAFETY

Switch on/off protected by password: yes

Dry Contact for alarms remoting: yes

Freezing and overheating safety device: yes

OPTIONALS

Rechargeable back-up batteries: Optional

SMS alerts: Optional

STRUCTURE

Exterior dimensions WxDxH (mm): 600x600x1960

Capacity (L)

Compartment 1: 180

Compartment 2: 100

Insulation (mm): 60

Temperature range: (˚C)

Compartment 180 Lt: +2° +12°

Compartment 100 Lt: -10° -25°C

Max. ambient temperature (˚C): 43

Type of cooling unit: Ventilated/ Static

Power supply (V): 220V/240V

Frequency (Hz): 50

Power consumption (W): 300

Weight (KG): 121

Shipping weight (KG): 134

Shipping dimensions WxDxH (mm): 680x680x2150

No. of compressor: 2

Doors: 2

Defrost: Automatic/ Manual

Wheels: standard

Chart recorder: optional

Racks/ Drawers (Refrigerator / Freezer)

3 Racks

2 Drawers

Lock: yes

Lighting: yes

Interior material: s/steel AISI304

Exterior material: hot-dip galvanised steel, anti-corrosion treated and white PVC film coated

Gas: R404a

FEATURES OF STANDARD ELECTRONIC CONTROLLER

End user interface Display LCD

Resolution (°C): 0,1

Maximum Number of Probes: 3

Acoustic alarm: yes

RS 485 interface: yes

Hot gas advanced defrost: yes
