Levelpro TVU Multi-Color Level Display, 4-20 mA
Price range: $1,869.86 through $2,245.76
Levelpro TVU Multi-Color Level Display, 4-20 mA
Manufacturer: ICON PROCESS CONTROLS
Features
- Programmable LED Colors | Level | Flow | Pressure | Temp
- Extra Large LED Numbers
- NEMA 4X Enclosure + Cord Grips Included
- Universal Inputs – Flow | Level | Temp
- 4 Relay Outputs – 5 Amp
- Power Supply Output – 24VDC
- 2 Relay + 4-20mA Outputs
- Description
- Size Guide
- Additional information
- Datasheet
- Part Number
- Vendor Info
- More Products
Description

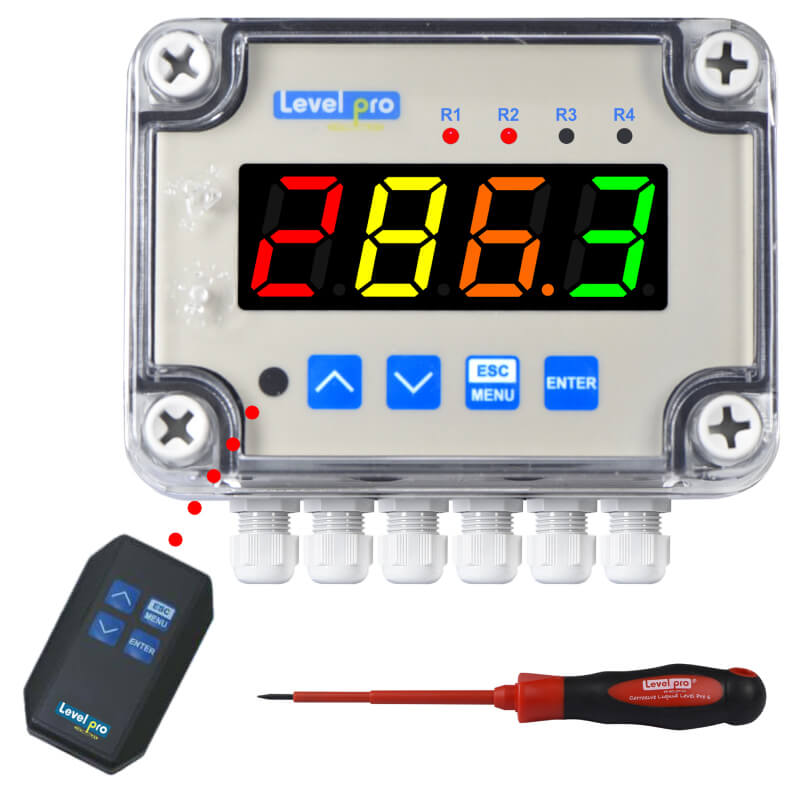

Levelpro TVU Multi-Color Level Display, 4-20 mA
TVU SERIES
Universal Multi-Color Process Display / Controller
Universal Multi-Color LED Display
> Universal Inputs – Current | Pulse | Voltage
> 4 Relay Outputs – 5 Amp
> Power Supply Output: 24 VDC
> 4-20mA + RS-485 | Modbus RTU
> NEMA 4X Enclosure + Cord Grips
> Screwdriver Included
X-Large Multi-Color / Universal Inputs
Flow / Level / Temp / Pressure
Eliminates Need for Stack-Lights
Visual Indication of Process Conditions
TVU Multi-Color Level Display Features:
- Programmable LED Colors | Level | Flow | Pressure | Temp
- Extra Large LED Numbers
- NEMA 4X Enclosure + Cord Grips Included
- Universal Inputs – Flow | Level | Temp
- 4 Relay Outputs – 5 Amp
- Power Supply Output – 24VDC
- 2 Relay + 4-20mA Outputs
Further Features:

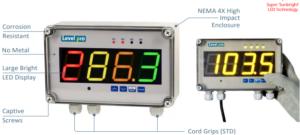

- Industry’s Largest Multi-Color LED Display
7 Different Colors / 2 1/4″ High - Extra Bright LED / Outdoor Service
- Indication of Upset Conditions / Low / High / Out of Bounds
- Universal input: 0/4-20mA / 0-10V / 0-150mV RTD / PH
- Relay Outputs + 4-20mA Repeater
- RS-485 / Modbus RTU (Standard)
- Optional Remote Control for Programming
- Includes NEMA 4X Enclosure + Cord Grips
- 24VDC Power Supply for Sensor
- Eliminates the Need for Stack-Lights
Additional information
| Output | 2 Relay, 4-20mA, 4 Relay, 4-20mA + 2 Relay |
|---|
| PART NUMBER | INPUT | OUTPUT |
| TVU-1121 | 4-20 mA | 2 Relay |
| TVU-1129 | 4-20 mA | 4-20mA |
| TVU-1421 | 4-20 mA | 4 Relay |
| TVU-1429 | 4-20 mA | 4-20mA + 2 Relay |
