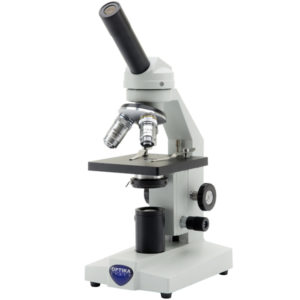

M-100FX Monocular brightfield microscope, 400x, multi-plug

$325.15

M-100FX Monocular brightfield microscope, 400x, multi-plug

M-100FX Monocular brightfield microscope, 400x, multi-plug

Product Name: M-100FX Monocular brightfield microscope, 400x, multi-plug

Model no: M-100FX

Manufacturer: Optika

Monocular microscope ideal for students and mainly primary schools, with achromatic lenses (400x), FN 18 eyepiece, finite optical system, coaxial focusing, fixed stage and fixed 1 W LED illumination. Slim and easy to carry, it is equipped with long lasting LED illumination to provide over 20 years of use

M-100FX Monocular brightfield microscope, 400x, multi-plug

Head: Monocular, 45° inclined; 360° rotating.
Eyepiece: WF10x/18 mm, secured by screw.
Nosepiece: Triple ball bearings revolving nosepiece.
Objectives:
– Achromatic 4x/0.10
– Achromatic 10x/0.25
– Achromatic 40x/0.65.
All with anti-fungus treatment.
Specimen stage: Fixed stage, 120×110 mm, with sample clips.
Focusing: Separate coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: N.A. 0.65 with iris diaphragm.
Illumination: 1 W LED. Color temperature: 6,300 K. 100-240Vac/12Vdc external power supply.

SKU: EA-7916-97

Description

M-100FX Monocular brightfield microscope, 400x, multi-plug

M-100FX Monocular brightfield microscope, 400x, multi-plug

Monocular microscope ideal for students and mainly primary schools, with achromatic lenses (400x), FN 18 eyepiece, finite optical system, coaxial focusing, fixed stage and fixed 1 W LED illumination. Slim and easy to carry, it is equipped with long lasting LED illumination to provide over 20 years of use

M-100FX Monocular brightfield microscope, 400x, multi-plug

Head: Monocular, 45° inclined; 360° rotating.
Eyepiece: WF10x/18 mm, secured by screw.
Nosepiece: Triple ball bearings revolving nosepiece.
Objectives:
– Achromatic 4x/0.10
– Achromatic 10x/0.25
– Achromatic 40x/0.65.
All with anti-fungus treatment.
Specimen stage: Fixed stage, 120×110 mm, with sample clips.
Focusing: Separate coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: N.A. 0.65 with iris diaphragm.
Illumination: 1 W LED. Color temperature: 6,300 K. 100-240Vac/12Vdc external power supply.

ECOVISION Series

A range of mainly cordless monocular microscopes ideal for students and mainly primary schools with achromatic lenses, FN 18 eyepiece, finite optical system, coaxial focusing, fixed or mechanical stage and 1 W LED illumination.
Slim and easy to carry, all the models are equipped with long lasting LED illumination to provide over 20 years of use and, most of them, with rechargeable batteries

A RANGE OF QUALITY MICROSCOPES FOR BEGINNERS

EDUCATIONAL MICROSCOPES DESIGNED FOR NOVICE USERS

» Designed for novice users (students and primary schools especially)
» Easy to handle, also by the youngest users
» Longlife LED illumination (providing over 20 years of use)
» Compact, practical and intuitive to use
» Sturdy and durable for extended lifetime

COMFORTABLE, INTUITIVE & RELIABLE SOLUTIONS

» 18 mm field number for a wide observation area
» Achromatic optics ensuring good contrast and quality images
» Pre-aligned illumination and condenser to simplify operations
» Cordless use, totally independent from mains/batteries connection
» External power supply for enhanced safety and convenient servicing

EASY TO HANDLE, ALSO BY THE YOUNGEST USERS

Extreme compactness and portability to ensure easy transportation in the classroom and
outdoor, with slim body and useful handle for a facilitated and enjoyable teaching activity

CORDLESS USE, TOTALLY INDEPENDENT FROM MAINS CONNECTION

Most of the models work with or without the batteries in place and are provided with three
NiMH rechargeable batteries for outdoor use (4-hour autonomy, at medium intensity)

EXTERNAL POWER SUPPLY FOR ENHANCED SAFETY AND CONVENIENT SERVICING

OPTIKA’s safety first approach drives to the use of a low voltage,
multi-plug, external power supply in order to prevent any risk of
electric shock and heatflow inside the unit

LONGLIFE LED ILLUMINATION (PROVIDING OVER 20 YEARS OF USE)

Money & energy saving thanks to LED long lifetime (65.000 hours, 22
years in case of 8 hours/day) which is more than 20 times compared
to a standard halogen bulb
