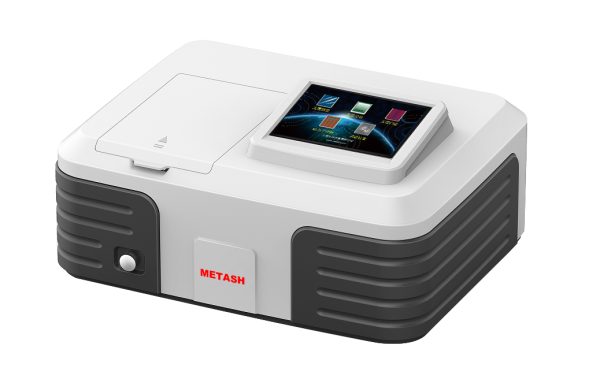

Metash – Model UV-8000T – Screen Touch Double Beam UV Vis Spectrophotometer

constant-current slb-series dc battery load banks wireless cell monitoring SLB-Series DC Battery Load Banks with Wireless Per Cell Monitoring (DAC) – 10-288V
constant-current slb-series dc battery load banks wireless cell monitoring SLB-Series DC Battery Load Banks with Wireless Per Cell Monitoring (DAC) – 80 VDC

$7,837.40

Dual Optical System Intelligent Alarm function System Encryption function Display several groups of data at the same time for direct reading Module design for easy operation New panel with touch screen
Add to wishlist

Description

8000TUV-8000T – Screen Touch Double Beam

UV Vis Spectrophotometer

Manufacturer: Metash







Dual Optical System Intelligent Alarm function System Encryption function Display several groups of data at the same time for direct reading Module design for easy operation New panel with touch screen



Feature

◆ Adopt dual beam optical system with precision vertical-type dual optical path and dual detector.

◆ Imported grating of high performance greatly reduced the stray light and improved the stability and reliability of device.

◆ 10 inches large touch screen, built-in 32G memory, support Bluetooth connection network.

◆ Powerful data analysis system with internal computer host could realize multi functions independently. Like establishing

calibration curve, photometric measurement, quantitative measurement, spectral scanning, dynamics, DNA/Protein test,

multi-wavelength analysis and data printing.

◆ Optical system adopts suspension design. All optical parts are independently fixed on the 8mm thick aluminum

deformation-free base to avoid the impact of bottom plate deformation and outside vibration on optical system.

This premium design greatly improved the stability and reliability of the instrument.

◆ Convenient data storage and printing function. UV-6000T can be directly connected to the printer for A4 format data and graph printing.

◆ Automatic power on self test and system positioning function could inspect and calibrate the deviation before every use.

◆ All test data and analysis report can be exported to USB disk directly.

8000T

Model: UV-8000T/UV-8000TS

Wavelength Range: 190-1100nm

Spectral bandwidth 1.8 nm/0.5, 1.0 2.0, 4.0nm

Wavelength Accuracy: ±0.1nm(D2 656.1nm),±0.3 nm full range

Stray light: 0.03%T @ 220 nm, 360 nm

Wavelength Repeatability: ≤0.1nm

Photometric Accuracy: ±0.2T(0-1009%T); ±0.002Abs(0-0.5Abs); ±0.004Abs(0.5-1.0Abs）

Photometric Repeatability: ≤0.05%6T(0-100%6T); 0.001Abs(0-0.5Abs); 0.002Abs(0.5-1.0Abs)

Stability: ±0.0004A/h@500nm

Photometric Range: 0-200%T, -0.3-3.0A, 0-9999C

Baseline flatness: ±0.001A

Noise: ±0.0004A

Display: 10 inches color touch screen

Data Output Port: USB

Print Port: USB

Light source: Tungsten Lamp & Deuterium Lamp

Power Requirements: AC 220V/50Hz or AC 110V/60Hz

Detector: Silicon Photodiode

Dimension: 630*430*210mm

Weight: 28KG
