Microbial Air Sampler – TRIO.BAS Multistation 100 Petri with 1 SATELLITE PACK

Microbial Air Sampler – TRIO.BAS Multistation 100 Contact with 1 SATELLITE PACK
Microbial Air Sampler – TRIO.BAS Multistation 200 Contact with 1 SATELLITE PACK

$5,222.32

Man: Trio.Bas

Cat No: 251K



SKU: EA-5380-75
Add to wishlist

Description

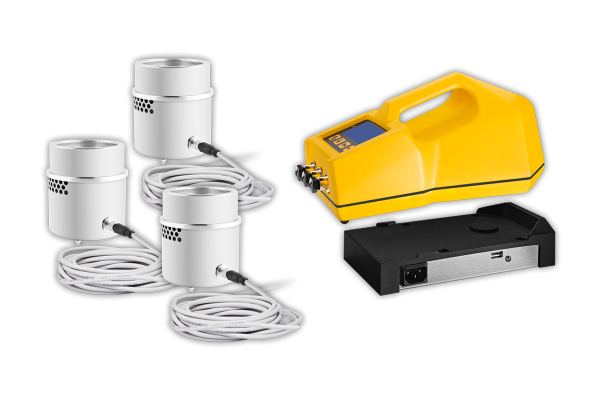

Microbial Air Sampler – TRIO.BAS Multistation 100 Petri with 1 SATELLITE PACK

Microbial Air Sampler - TRIO.BAS

Description of Microbial Air Sampler – TRIO.BAS Multistation 100 Petri with 1 SATELLITE PACK

  • Main customers are pharmaceuticals, cleanrooms and biotech industries.
  • The Multistation air sampler allows to monitor separated cleanrooms with a single external command unit. The risk of human contamination is reduced, because the satellite units are permanently inside each cleanroom
  • This air sampler is especially dedicated to customers who make a large number of controls, in different environments, with a large staff rotation and comply with the quality standards and QM/GMP
  • A barcode module, thanks to the use of a scanner (barcode reader) with Bluetooth, automatically records the operator, place and plates used for the sampling. The data collected by the barcode reader are transmitted directly to the instrument. This solution is useful for those who already use culture plates with barcode or 2-D barcode (QR Quick Response Code). The data collected are transferred via Bluetooth from the air sampler to a PC or laptop. PC or laptop request a dedicated software (ASPC) installed.
  • The data are transferred via Bluetooth between the air sampler and a smartphone or tablet (Android version) and then to a PC or laptop.
  • It is possibile to work either in manual or automatic mode.
  • The sampler is IP65 certified.
  • The battery is recharged by a base station induction charger without any cable connection between the air sampler and the charger..
  • The 200 lts/min air flow reduces the operator time and the time sampling.
  • The use of sterile Daily Shift aspirating heads reduces the risk of contamination.
  • The possibility to use 2/3 different aspirating heads allows to have 2/3 different culture media at the same time or to make sampling BEFORE (at rest), DURING (in operation) and at the END of each processing cycle.

PERFORMANCES

  • Technopolymer body shockproof with antibacterial performances of surfaces
  • Complaint according EN/ISO 14968-1, GMP and GLP
  • Stainless steel aspirating head with quick bayonet closure, identification number and stainless steel cover to prevent contamination
  • Volume of aspirating air: 100 or 200 l/m
  • Selected volumes from 30 to 2.000 liters and 17 preset programs
  • The aspirating chamber is suitable for 55 mm Contact plates or 90 mm Petri dishes
  • HEPA filter for expulsed air (optional on satellites)
  • Auto calibration: power/flow electronic real time control
  • Power supply system: the instrument can be charged continuosly by AC powered source 110/240 Volt 50/60 Hz or by rechargeable batteries (inserted inside the air sampler)
  • Cycles battery autonomy: 60.000/70.000 litres
  • IP65 protection certificate from dust and water
  • Language: English, French, German, Spanish, Italian
  • Manual and automatic passwords
  • Operative aspirating cycles: manual and automatic
  • Memorized data: up to 1.000 samplings
  • Configuration users and places: 100
  • Delayed, remote, start, simultaneous or interval sampling
  • Bluetooth connection for data transfer
  • Automatic next calibration reminder
  • Data integrity CFR 21
  • CE mark
  • Continuos/trending analysis according USP
  • Dimension: 26x16x15h cm
  • Weight: 1650 gr
  • Built in ISO 9001 premises

IDENTIFICATION CODES

Code TRIO.BAS™ MULTISTATION
250K TRIO.BAS™ MULTISTATION 100 Contact with 1 Satellite Pack
251K TRIO.BAS™ MULTISTATION 100 Petri with 1 Satellite Pack
252K TRIO.BAS™ MULTISTATION 200 Contact with 1 Satellite Pack
253K TRIO.BAS™ MULTISTATION 200 Petri with 1 Satellite Pack

(*) each PACK consists of: 1 TRIO.BAS™ MULTISTATION, 1 calibration certificate, 1 base station induction charger, 1 s/s satellite, 1 s/s aspirating head with s/s cover head, 1 cable connection (5 mt), 1 robustus large carrying case.

Code SATELLITE UNIT PACK*
260K SATELLITE UNIT Contact PACK
261K SATELLITE UNIT Petri PACK
262K SATELLITE with HEPA FILTER Contact PACK
263K SATELLITE with HEPA FILTER Petri PACK
258K SATELLITE WALL with HEPA filter Contact PACK
259K SATELLITE WALL with HEPA filter Petri PACK
273 S/S HOLDER for lid of Petri plates for satellite
266 S/S RIGID TUBE connection for cable satellite – 170 mm
267 S/S TUBE WALL connection for cable satellite
265 CABLE CONNECTION between the satellite and the command unit – 1 set of 5 meters
272 CABLE CONNECTION between the satellite and the command unit – 1 set of 20 meters

(*) each PACK consists of: 1 s/s satellite, 1 s/s aspirating head with s/s cover head, 1 cable connection (5 mt), 1 light carrying case

TRIO.BAS MULTISTATION with 1 SATELLITE PACK
251K TRIO.BAS Multistation 100 Petri with 1 SATELLITE PACK

  consisting of:
251 TRIO.BAS MULTISTATION BLUETOOTH command unit Air sampler (100 lts/min) Petri 90 plate and 1 certificate with 2 calibrations 1
310 Base Station Induction battery charger 100/240VCA 50/60Hz 35W – Power supply cable with plug SHUKO 1
261 s/s Satellite Petri 90 plate without aspirating head and cable 1
331 s/s ASPI HEAD Petri 90 plate                               1
465 COVER HEAD s/s to protect ASPI HEAD    1
265 Cable connection between the Satellite and the command unit – 1 set of 5 meters 1
392 ROBUSTUS Large carrying case MULTIFLEX 1+2 / TRIO.BAS MULTISTATION and 1/3 satellities  – 56x43x22h cm
 1
