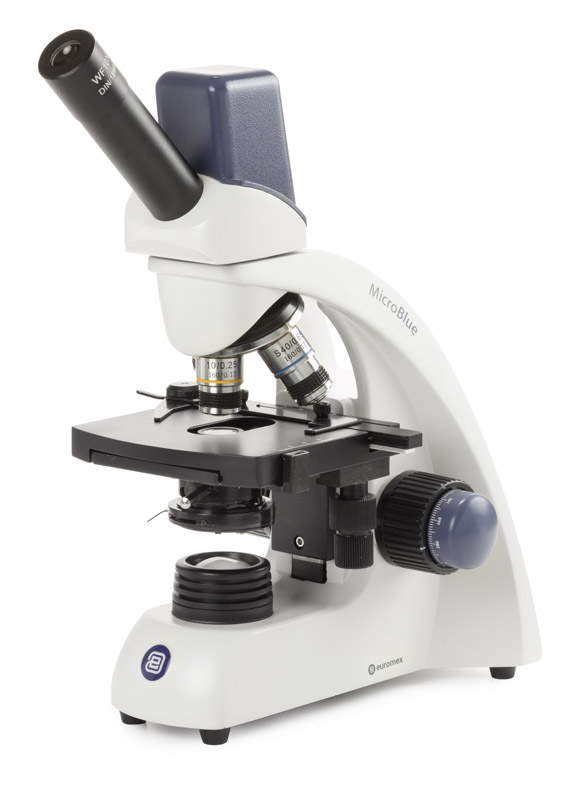

MicroBlue monocular microscope with built-in 5 MP digital CMOS camera. With achromatic 4/10/S40/S60x DIN 35 mm objectives, mechanical stage, 1 W LED illumination
$947.25
MicroBlue monocular microscope with built-in 5 MP digital CMOS camera. With achromatic 4/10/S40/S60x DIN 35 mm objectives, mechanical stage, 1 W LED illumination
MODEL: MB.1655-5
Manufacturer: EUROMEX
- Description
- Size Guide
- DataSheet
- Vendor Info
- More Products
Description
MicroBlue monocular microscope with built-in 5 MP digital CMOS camera. With achromatic 4/10/S40/S60x DIN 35 mm objectives, mechanical stage, 1 W LED illumination
MODEL: MB.1655-5
Secured wide field eyepieces WF 10x/18 mm with fixed pointer
Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
Built-in 5 MP CMOS camera with USB-2 interface, 1271 x 952 pixels
Supplied with ImageFocus software
Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S60x N.A. 0.85 DIN 35 mm parfocal objectives
The S40x and S60x objective are spring-mounted
Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
Coaxial coarse and fine adjustments with 200 graduations. Precision 15 μm,
3 mm per rotation. Total travel approximately 15 mm. Friction adjustment
Friction of focus control can be adjusted
N.A. 1.25 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power supply/charger
Supplied with manual and dust cover in styrofoam case
Microscopes for education need to be easy-to use and student-friendly, which means able to withstand extensive use and rough handling. High quality, yet affordably priced Euromex microscopes specifically match these demands due to the well-thought construction and usage of top-class materials
The modern MicroBlue is an entry-level microscope and is especially appreciated when budget is limited. The basic model comes with a fixed lens condenser and a plain stage. All models with an integrated mechanical stage are supplied with an Abbe condenser. All models are equipped with 35 mm achromatic objectives. The built-in rechargeable batteries enable cordless operation
Icons are used to indicate the several functions of a microscope.
Highlights
- Entry-level upright microscopes
- Monocular, binocular and trinocular models
- Standard, digital and LCD models
- Revolving reversed nosepiece
- Provided with APL (Anti-bacterial Protection Layer)
- Integrated X-Y mechanical stage
- LED and NeoLED illumination
- Cordless operation
- Ergonomic carrying grip
MicroBlue monocular microscope with built-in 5 MP digital CMOS camera Specifications
EYEPIECE(S)
• Wide field WF 10x/18 mm eyepiece(s)
• Secured and with pointer for monocular versions
Photo’s (from left to right) Monocular head, binocular head, trinocular head, digital monocular head and digital LCD
-
MicroBlue monocular microscope digital monocular head
HEAD
• Monocular models with 45° inclined tubes
• Binocular models have 45° inclined tubes, adjustable interpupillary distance between 48 and 75 mm and a ± 5 diopter adjustment on left tube
• Trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube
• The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
• Two digital heads are available:
An integrated 1.3 MP 1/2.5” CMOS sensor USB 2.0 camera, 1272 x 952 pixels
An integrated 5.0 MP 1/2” CMOS sensor USB 2.0 camera, 2560 x 1920 pixels
• LCD version with 5.6” LCD screen
• All heads are 360° rotatable and secured
NOSEPIECE
Revolving nosepiece for three or four reversed objectives on ball bearings
OBJECTIVES
• Achromatic 4x/0.10, 10x/0.25 and S40x/0.65. Models with S60X or S100x oil immersion are also available
• The S40x, S60x and S100x oil immersion objectives are spring loaded
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations, 15 µm per graduation, 3 mm per rotation, total travel approximately 15 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
STAGE
All models are supplied with 115 x 100 mm stage with integrated 55 x 20 mm X-Y mechanical stage, except for the basic model MB.1001 which is supplied with a 105 x 105 mm stage and two non-removable clamps
CONDENSER
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder, except for the MB.1001 model and MB.1001-LCD models which are equipped with a single N.A. 0.65 condenser with built-in iris diaphragm
ILLUMINATION
• All monocular versions are supplied with an adjustable 1W LED illumination
• The binocular and trinocular versions are supplied with a replaceable 1 W NeoLED™ illumination system for increased light output
• All models have internal rechargeable batteries with an external 100-240 V battery charger/mains adapter
STORAGE AND TRANSPORTATION
from left to right: MB.9900 – AE.9918 – AE.9912
PACKAGE CONTENT
• Supplied with mains adapter-charger, white filter, dust cover, user manual and 5 ml immersion oil for models with an S100x objective.
Software included for digital models
• Software, USB-2 cable and a micrometer 1mm/100 slide are included (for camera models)
• External power supply for LCD screen
• All packed in a polystyrene box
MicroBlue monocular microscope with built-in 5 MP digital CMOS camera Accessories
AE.5571Wide field eyepiece WF 5x/18 mm
MB.6010WF 10x/18 mm eyepiece
MB.6010-MWF 10x/18 mm eyepiece with micrometer scale
MB.6010-PWF 10x/18 mm eyepiece with pointer
MB.6015WF 15x/11 mm eyepiece
MB.6020WF 20x/9 mm eyepiece
MB.6099Pair of eyecups
MB.7004Achromatic 4x/0.10 objective. Parafocal 35 mm
MB.7010Achromatic 10x/0.25 objective. Parafocal 35 mm
MB.7020Achromatic 20x/0.40 objective. Parafocal 35 mm
MB.7040Achromatic S40x/0.65 objective. Parafocal 35 mm
MB.7060Achromatic S60x/0.85 objective. Parafocal 35 mm
MB.7000Achromatic S100x/1.25 objective. Parafocal 35 mm
MB.9710Frosted white filter
MB.9975External mains/charger adapter 100-240 Vac/5Vdc (50/60Hz)
MB.99811 W LED replacement unit
MB.99911 W NeoLED™ replacement unit
PB.5155Microscope slides 76 x 26 mm, ground edges, 50 pieces per pack
PB.5165Cover glasses 18 x 18 mm, 0.13-0.17 mm, 100 pieces
PB.5168Cover glasses 22 x 22 mm, 0.13-0.17 mm, 100 pieces
PB.5245Lens cleaning paper, 100 sheets per pack
PB.5255Immersion oil, 25 ml. Refraction index n = 1.482
PB.5274Iso propyl alcohol 99%, 200 ml
PB.5275Cleaning kit: lens fluid, lint free lens tissue paper, brush, air blower, cotton swabs
PB.5276Microscope maintenance and servicing kit, 16pcs: cleaning brush, 6 pcs screwdriver set, air blower, 3 pcs Allen key, 1.5, 2, 2.5 mm, lens cleaning fluid 20 ml, cleaning cloth 140 x 140 mm, 100 pcs Lens tissue sheets, tube of maintenance grease, 10 ml bottle of oil, packed in a nice toolbox
MB.9900Aluminum transport case
PB.5157-BMicroscope slides 76 x 26 mm, ground edges. Blue frosted side, 50 pieces per pack
PB.5157-WMicroscope slides 76 x 26 mm, ground edges. White frosted side, 50 pieces per pack
AE.9912Euromex dust cover medium (35 x 39 cm).
Microblue Models
| MODELS | Monocular | Binocular | Trinocular | Maximum objectives | 4/10/S40x objectives | S60x objective | S100x objective | Mechanical X-Y stage | LED | NeoLED | Batteries | |
| MB.1001 | • | 3 | • | • | • |  |
||||||
| MB.1051 | • | 4 | • | • | • | • |  |
|||||
| MB.1651 | • | 4 | • | • | • | • | • |  |
||||
| MB.1151 | • | 4 | • | • | • | • | • |  |
||||
| MB.1052 | • | 4 | • | • | • | • |  |
|||||
| MB.1652 | • | 4 | • | • | • | • | • |  |
||||
| MB.1152 | • | 4 | • | • | • | • | • |  |
||||
| MB.1053 | • | 4 | • | • | • | • |  |
|||||
| MB.1653 | • | 4 | • | • | • | • | • |  |
||||
| MB.1153 | • | 4 | • | • | • | • | • |  |
Digital models
MicroBlue monocular microscope with built-in 5 MP digital CMOS camera MB.1655‑5
| MODELS | Digital LCD | Digital mono | 1.3 MP | 5.0 MP | Maximum objectives | 4/10/S40x objectives | S60x objective | S100x objective | Mechanical X-Y stage | LED | Batteries | |
| MB.1001‑LCD | • | 3 | • | • | • |  |
||||||
| MB.1051‑LCD | • | 4 | • | • | • | • |  |
|||||
| MB.1005‑1 | • | • | 3 | • | • | • |  |
|||||
| MB.1005‑5 | • | • | 3 | • | • | • |  |
|||||
| MB.1055‑1 | • | • | 4 | • | • | • | • |  |
||||
| MB.1055‑5 | • | • | 4 | • | • | • | • |  |
||||
| MB.1655‑1 | • | • | 4 | • | • | • | • | • |  |
|||
| MB.1655‑5 | • | • | 4 | • | • | • | • | • |  |
|||
| MB.1155‑1 | • | • | 4 | • | • | • | • | • |  |
|||
| MB.1155‑5 | • | • | 4 | • | • | • | • | • |  |
LCD are models with LCD-screen
