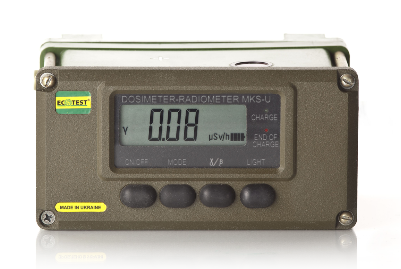

Multipurpose dosimeter-radiometer MKS-U
$5,156.00
Multipurpose dosimeter-radiometer MKS-U
Manufacturer: ECOTEST
Product Code: EA-5610-9
- Description
- Size Guide
- Vendor Info
- More Products
Description
Multipurpose dosimeter-radiometer MKS-U
Product Description
A full-range radiation survey device in the field environment.
MKS-U measures gamma radiation dose rate from the background to emergency levels. Availability of the remote detector enables measuring emergency levels of gamma radiation dose rate at a distance of 30 m. The device operates under the conditions of atmospheric precipitations, dusty conditions and when the remote detector is submerged in the water at 0.5 m depth. Storage battery of the device is charged with the help of the built-in charger from integral solar battery, from automobile battery or from industrial network.
Purpose of Use
- Measurement of ambient dose equivalent rate of gamma and X-ray radiation (DER).
- Measurement of ambient dose equivalent of gamma and X-ray radiation (DE).
- Measurement of surface beta-particles flux density.
- Measurement of accumulation time of gamma and X-ray radiation ambient dose equivalent.
Features
- Automatic setting of measurement intervals and ranges.
- Audio signaling of each registered gamma-quantum or beta-particle.
- Display and control keys backlight if operating in the dark.
- Storage battery (five AA nickel-cadmium batteries) charging by the built-in charger from:
– integral heliobattery;
– 12 V automobile battery;
– 220 V/50 Hz industrial network by voltage converter.
- Multilevel indication of power supply discharge.
- Ability to operate under atmospheric precipitation, dusty conditions and at immersion of the remote detector in water at 0.5 m depth.
- Measurement of gamma radiation DER action levels by placing the remote detector at up to 30 m distance.
- Analog indicator of radiation intensity.
- Up to 4096 measurement results recording in the nonvolatile memory with further transfer through infrared port to the computer.
- Viewing the recorded measurement results on the display.
- Ability to operate with the personal protective equipment (rubber gloves).
- Wide operating temperature range (-40…+50 °C).
- Display resistant to the temperature of up to +95 °C.
The device includes:
- Gas-discharge Geiger-Muller counters without return run of counting response
- Silicon beta radiation detector
- Emergency scintillation gamma radiation detector (CsI-scintillator-photodiode)
Multipurpose dosimeter-radiometer MKS-U
Specifications
| Measurement of gamma and X-ray radiation parameters: | ||||||||
|---|---|---|---|---|---|---|---|---|
| Measurement range of ambient dose equivalent rate with the combined detecting unit | 0.1 μSv/h … 10 Sv/h | |||||||
| Measurement range of ambient dose equivalent rate with the remote detector | Sv/h | 0.01…100 | ||||||
| Measurement range of gamma and X-ray radiation DE with the detector built in the control panel and main relative error | mSv
% |
0.001…9 999
±15 |
||||||
| Main relative permissible error limit of DER measurement when calibrated to 137Cs: | ||||||||
| – for the combined detecting unit | ±(15+2/H*(10))%, where H*(10) is a numeric value of measured DER equivalent to μSv/h | |||||||
| – for the remote detector | ±(15+200/H*(10))%, where H*(10) is a numeric value of measured DER equivalent to mSv/h | |||||||
| Energy range of measurement | MeV | 0.05…3.0 | ||||||
| Measurement range of DE accumulation time and accuracy of measurement | 1min…100h ±1min per 100h |
|||||||
| Measurement of beta radiation parameters: | ||||||||
|---|---|---|---|---|---|---|---|---|
| Measurement range of surface beta-particles flux density | 1/(cm2×min) | 10…200 000 | ||||||
| Energy range of measurement | MeV | 0.3…3.0 | ||||||
| Main relative permissible error limit of beta-particles flux density measurement when calibrated to 90Sr+90Y | ±(20+200/φβ)%, where φβ is a numeric value of measured flux density equivalent to part./(cm2×min) | |||||||
| Measurement time intervals | seconds | 2…50 | ||||||
| Storage battery life | hours | 100 | ||||||
| Operating temperature range(for digital display) | °С | -40…+50 (-40…+95) |
||||||
| Weight of the control panel with the detecting unit | kg | 2.4 | ||||||
| Dimensions of the control panel | mm | 160x125x80 | ||||||
| Weight of the dosimeter’s kit in packing case | kg | 8 | ||||||
| Dimensions of the dosimeter’s kit in packing case | mm | 554x420x123 | ||||||
Complete Delivery Kit
- control panel with non-detachable combined detecting unit of gamma and beta radiation;
- heliobattery;
- short telescopic tube for the detecting unit with a clip to be fixed on a belt;
- 12 V cable (10 m) used for charging from the automobile battery;
- 220/12 V adapter;
- AA nickel-cadmium batteries (5 pcs.);
- headphones;
- packing case;
- operating manual;
- logbook;
- emergency detecting unit kit: remote gamma radiation detector with a 30 m cable; telescopic tube (5 m) with a cable hanger for cable winding; telescopic tube case;
- spare parts;
- exchange infrared port adapter and software (on customer’s request).
