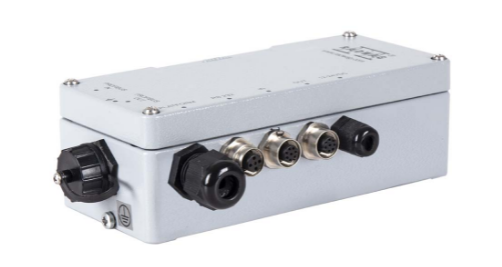

MW-01-A1 Mass Converter
Price range: $867.68 through $1,706.66
MW-01-A1 Mass Converter
Manufactuer: Radwag
Product code: WX-016-0283
- Description
- Size Guide
- Additional information
- Vendor Info
- More Products
Description
MW-01-A1 Mass Converter
The MW-01-A mass converter is designed to be a component of an industrial load cell scale. Depending on the needs, communication with the mass converter can be carried out via the following communication interfaces: RS232, RS485, Ethernet, Ethernet IP, Profibus or Profinet. The MW-01-A mass converter is compatible with indicators and PC.
Operation of the MW-01-A mass converter via PC is carried out using „MW Manager” software.
MW-01-A1 Mass Converter Construction Physical parameters Features of use
| Maximum quantity of verification units | 10000 e
|
| OIML Class | II or III
|
| Maximum increase of signal | 19,5 mV
|
| Minimum volatge per verification unit | 0,5 µV
|
| Maximum voltage per verification unit | 1,95 µV
|
| Minimum load cell impedance | 50 Ω
|
| Maximum load cell impedance | 1200 Ω
|
| Load cell excitation voltage | 5V DC
|
| Connection of load cells | 4 or 6 wires + shield
|
| Protection class | IP 66
|
| Multiple range | YES
|
| Communication interface | RS232, ETHERNET IP, 3×IN/3×OUT
|
| Power supply | 100 — 240 V AC 50/60 Hz
|
| Operating temperature | -10 — +40
°C |
| Housing | aluminum
|
| Packaging dimensions | 300×250×130
mm |
| Net weight | 1
kg |
| Gross weight | 1,4
kg |
| Max number of platforms | 1 |
Additional information
| MODEL | MW-01-1, MW-01-2 |
|---|
