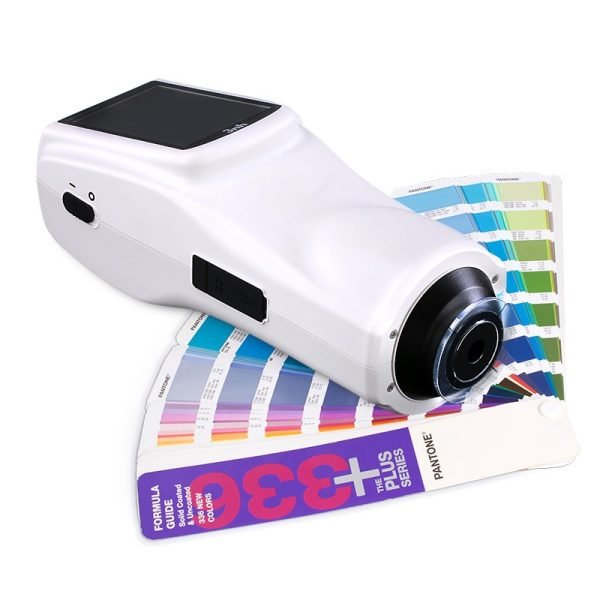

NS820 Portable Spectrophotometer with 4mm aperture
Description of NS820 Portable Spectrophotometer with 4mm aperture
NS820 spectrophotometer has the same specification with NS810 spectrophotometer, but it adopts 4mm aperture, fit for some special sample use.
NS820 spectrophotometer is developed by 3nh with independent intellectual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry.
In the R&D process, 3nh scientists and engineers measured various color samples from dark to light, white to black, and other standard color boards provided by ISO (International Standardization Organization). The parameters of test results are integrating with international standards.
3nh also analyzed the parameters from Japan, American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NS810 and Japan spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of 3nh high technology which realizes to be fully compatible with international market.
APPLICATIONS
NS820 spectrophotometer is widely used in plastic, electronic, painting, coating, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. NS810 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.
SPECIFICATION
| Model |
NS820 |
|
| Illumination/observ |
d/8 (diffused illumination, 8-degree viewing angle) Conforms |
|
| ation system |
to CIE No.15, GB/T 3978. |
|
| Integrating sphere |
Φ58mm |
|
| Size |
|
| |
|
| Light Source |
Combined LED sources |
|
| Sensor |
Silicon photodiode array |
|
| Wavelength range |
400~700nm |
|
| Wavelength pitch |
10nm |
|
| Reflectance range |
0~200% |
|
| Measuring |

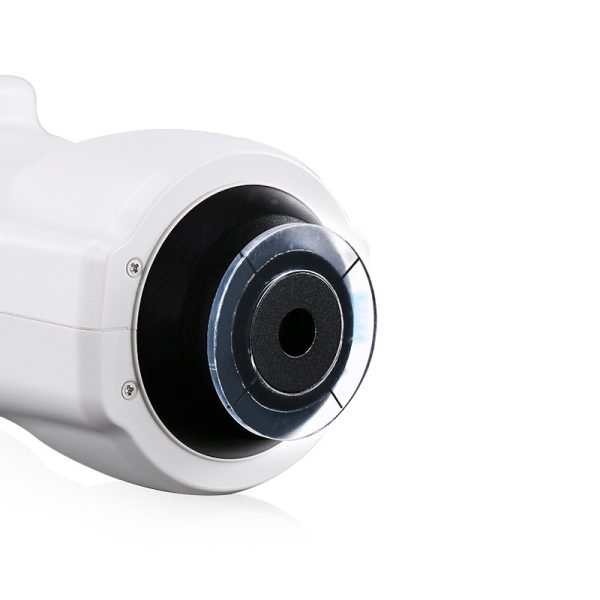

Φ4mm |
|
| Aperture |
|
| |
|
| Color Space |
CIE LAB, XYZ, Yxy, LCh, CIE LUV，LAB&WI&YI |
|
| Colordifference |
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*cmc(l:c),C |
|
| Formula |
IE2000ΔE*00，ΔE(h) |
|
|
|
Whiteness – WI(ASTM E313，CIE/ISO,AATCC,Hunter)， |
|
| Other Chromaticity |
Yellowness-YI(ASTM D1925，ASTM 313), |
|
| TI(ASTM E313，CIE/ISO), |
|
| Data |
|
| Metamerism Index (Mt) |
|
| |
|
| |
Colour Stain, Color Fastness, Color Strength, Opacity |
|
| Observer |
2°/10° |
|
| Illuminant |
D65,D50,A,C,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F |
|
| 12 |
|
| |
|
| |
Spectral Value/Graph, Colorimetric Value, Color Difference |
|
| |
Value/Graph, PASS/FAIL Result, Color Offset, Color |
|
| Display Data |
Simulation, color index setting(ΔE*94, ΔE*cmc, ΔE2000), |
|
| |
tolerance prompt, reverse prompt, time setting, language |
|
| |
setting, restore factory setting |
|
| Measurement Time |
1.5s |
|
| |
Spectral Reflectance: standard deviation within |
|
| |
0.1%(400~700nm: within 0.2%) |
|
| Repeatability |
Colorimetric Value: Standard deviation within DeltaE*ab 0.04 |
|
| (Measurement conditions: white calibration plate measured 30 |
|
| |
|
| |
times at 5 seconds intervals after white calibration was |
|
| |
performed.) |
|
| Inter Instrument |
Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color |
|
| Agreement |
tiles) |
|
| Dimension |
L*W*H=90*77*230mm |
|
| Weight |
600g |
|
| Battery |
Li-ion battery. 2800 times within 8 hours. |
|
| Lamp Life |
5 years, more than 1.6 million measurements |
|
| Display Screen |
TFT 3.5inch, Capacitive Touch Screen |
|
| Interface |
USB/RS-232 |
|
| Data Memory |
1000 Standards, 15000 Samples |
|
| Operating |
0~40℃（32~104°F） |
|
| Temperature |
|
| |
|
| Storage |
-20~50℃（-4~122°F） |
|
| temperature |
|
| |
|
| Standard |

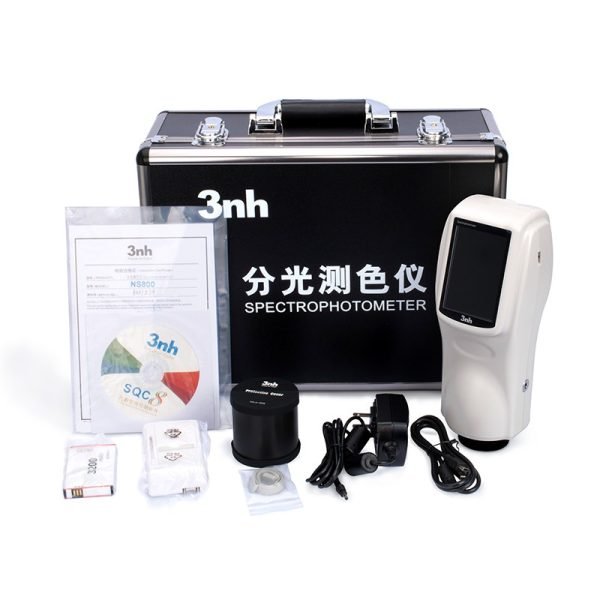

Power Adapter, Li-ion Battery, Operating Instruction, SQC8 |
|
| software, White and Black Calibration Cavity, Protective |
|
| Accessory |
|
| Cover and Wrist Strap |
|
| |
|
| Optional Accessory |
Universal Test Components, Micro Printer, Powder Test Box |
|
| Notes |
The specifications are subject to change without notice. |
|
