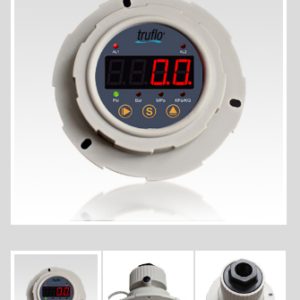

OBS-P GAUGE + ISOLATOR
$821.72
OBS-P GAUGE + ISOLATOR
All Plastic LED Digital Panel Mount Pressure Gauge & Isolator
Highest Accuracy ±1% + 4-20mA + 2 Relay Outputs
Manufacturer: ICON PROCESS
Product Code: OBSP-T-0-PM
- Description
- Size Guide
- Vendor Info
- More Products
Description
OBS-P GAUGE + ISOLATOR
All Plastic LED Digital Panel Mount Pressure Gauge & Isolator
Highest Accuracy ±1% + 4-20mA + 2 Relay Outputs
SPECIFICATION
| Dial Diameter | Large 2½” (Big Numbers) |
| Mounting | Direct Mount, Bottom Connection FNPT ½” |
| Housing | NEMA 4X PVDF or Polypro – PTFE Diaphragm – One Piece Molded Design (No Assembly) |
| Lens | Polycarbonate |
| Dial | Dial LED |
| Connection | 1/2″ FNPT |
| Accuracy | ±1.0 % |
| Operating temperature |
Max. Working Temp. PVDF-195 F, PP-170°F |
| Pressure Range | 0-290 PSI (Ambient Temp) |
| Output | 4-20mA + 2 (NPN or PNP) Relay Outputs |
| Power Supply | 10-30V DC |
