Truflo® OBS Pressure Gauge + Gauge Guard | PVDF

obs pressure gauge Truflo® OBS Pressure Gauge + Gauge Guard | PP
OBS-2VU Double-Sided Pressure Gauge Truflo® OBS-2VU Double-Sided Pressure Gauge | PVC

$651.76

Truflo® OBS Pressure Gauge + Gauge Guard | PVDF

Manufacturer: ICON PROCESS  CONTROLS

Features:

  • No Filling or Assembly Required – One Piece Design
  • Excellent Chemical Resistance
  • Range Tabs – Red | Yellow | Green
  • Glycerin Filled | (Silicone Optional)
  • Teflon® or FPM Diaphragm
  • ±1.5% Accuracy
  •  Large 2 ½” Display
  • ½” G | BSP | NPT | Male or Female Process Connections
  • 0-60 | 0-100 | 0-160 psi Dual Scale Ranges * (Other Ranges Available)
SKU: N/A
Clear
Add to wishlist

Description

Truflo® OBS Pressure Gauge + Gauge Guard | PVDF

OBS SERIES

Plastic Pressure Gauge & Isolator

PVC | PP | PVDF
SERIES : OBS
CONNECTION : ½” (M) | (F) NPT | G | Flange
DIAPHRAGM : PTFE Teflon®

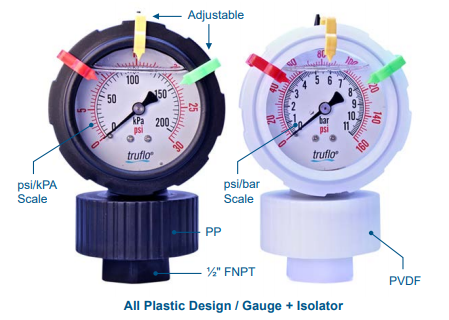

All Plastic Design
No Filling Required
Excellent Chemical Resistance
Pressure Range Markers



The OBS Series is the industry’s only integral molded one-piece plastic pressure gauge and gauge guard. Gauge guards are utilized to protect the pressure gauge from any corrosive media in the process system via an isolator. The OBS Series Pressure Gauges are truly unique and industry leading when it comes to pressure measurement in corrosive environments.

OBS Pressure Gauges are a one-piece design and come factory pre-filled, resulting in an industry leading accuracy of 1.5%. Eliminating the need for filling saves the user time and the difficulty of having to fill a gauge isolator. The 3 movable red, yellow and green range tabs are designed to act as a visual pressure alert for bag or filter change-outs.

The OBS Series is available in PVC, PP & PVDF, all equipped with a Teflon® Diaphragm, making the entire unit completely corrosion resistant and the perfect pressure gauge for chemical applications. Engineering the entire body in a plastic housing rather than just the gauge guard allows users to be confident that the complete unit will stand up in even the most corrosive environments.



Features:

  • No Filling or Assembly Required – One Piece Design
  • Excellent Chemical Resistance
  • Range Tabs – Red | Yellow | Green
  • Glycerin Filled | (Silicone Optional)
  • Teflon® or FPM Diaphragm
  • ±1.5% Accuracy
  •  Large 2 ½” Display
  • ½” G | BSP | NPT | Male or Female Process Connections
  • 0-60 | 0-100 | 0-160 psi Dual Scale Ranges * (Other Ranges Available)

obs pressure gauge

Accuracy +/- 1.5%
Filling Glycerin or Silicone
Pressure Range* 0-60 | 0-100 |
0-160 psi
Connection ½” M | F NPT | Flange
Mounting Direct Mount Bottom Connection ½”
Movement SS316 | Brass
(not wetted)
Gauge Face 2 ½” Face



obs pressure gauge

MORE FEATURES
All Plastic | Gauge & Isolator | Filled
Heavy Duty Design | Simple to Install
Completely Corrosion Resistant
Designed to Act as Visual Pressure
Alert for Bag | Filter Change-Out
Extra Large Color Display
Reduces Pressure Surges caused by
Water Hammer | Metering Pump
Pulsations
Highest Accuracy in Industry | ±1.5%
No Filling Required
Glycerin Fill or Silicone (Opt)
One-Piece Molded Design
(No Assembly)
Suitable for Corrosive Media + Slurries

obs pressure gauge

Additional information

Part Number

OBS-PF-0-60, OBS-PF-0-100, OBS-PF-0-160

obs-datasheet

Size Part Number Material
½” OBS-PF-0-60 PVDF
½” OBS-PF-0-100 PVDF
½” OBS-PF-0-160 PVDF

Add Suffix-
‘M’ – Male ½” NPT
Consult Factory for Flanged Pricing | Alternative Pressure Ratings
