Plethysmometer – Paw Volume & Oedema
MANUFACTURER – UGO BASILE
PRODUCT CODE – 37240/37240-25/37240-35
- Description
- Size Guide
- Specification
- Documents
Description

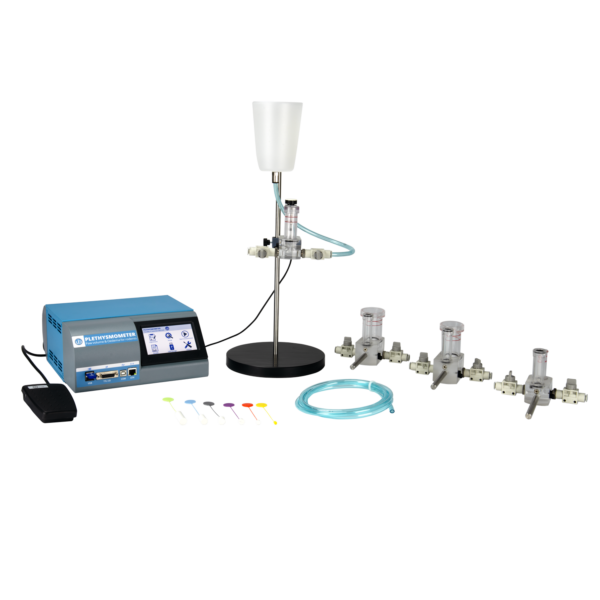

Plethysmometer – Paw Volume & Oedema
Description Of Plethysmometer – Paw Volume & Oedema
Background
- The new original device by Ugo Basile designed to measure paw volume and its changes (swelling) in rodents.
- Used to precisely measure experimentally induced inflammation and changes due to administration of pharmacological substances.
- New version with touch screen display, new firmware with more functions, with USB data retrival and experiment data loading capabilities, LAN connection, auto-mesure function and Ugo Basile family feeling design.
- Over 3000 citations of Ugo Basile’s Plethysmometer in scientific publications.
Precise measurements, hands free operation
- Displays the exact paw volume on the touch screen display, read-out with resolution of 0.01ml. Small differences are detected by an high precision self-made level transducer
- Foot pedal that allows hands-free operation, to saved measured value and to enable auto-measure function
- Easy zeroing before making new measurements.
- Measuring paw tubes available in different sizes for different animals paws
- Web-based LAN connection for data retrieving and experiment data loading (password protected)
- USB pen drive for data retrieving and experiment data loading
| Feature | Benefits |
|---|---|
| Touch screen display | Easy to operate, easily result data viewing |
| Auto-measure function | Easy operation and better measuring accuracy and repeatability |
| USB pen drive | For fast measured data retrieving and experiment data loading |
| Web based LAN connection | Remote data retrieving and experiment data loading |
| Foot-Pedal to freeze the reading | Hand-free operation |
| More than 1000 citations since 1960s | Most applications can be found in bibliography for reference |
| Interchangeable water cells | Same instrument for mice and rats (four different dimensions) |
| Operation | |
|---|---|
| Power Requirement | Universal input 85-264 VAC, 50-60Hz, 15 W max |
| Data Read–out | Multifunction graphic display |
| Display | 4.3” multifunction color touch-screen display |
| Data Format | 4 digits 2 integers, 2 decimals (e.g.:23.89 ml) |
|
Physical |
|
| Weight | 3,5 Kg |
| Shipping Weight | 6.5 Kg |
| Shipping Dimension | 36x55x45 cm |
|
Warranty |
|
| Warranty | Plethysmometer is covered by a 12-month warranty + 12 after product registration |
| UB Care | Additional UB-Care can be added for other 12 or 24 months |
