POWER LOOP OUTPUT – Model AP2-1 (plastic housing)

Laboratory Balance Accessories

POWER LOOP OUTPUT -(plastic housing)

Model AP2-1

Manufacturer: RADWAG

Product Code: WX-002-0033

SKU: EA-51721-71
Add to wishlist

Description

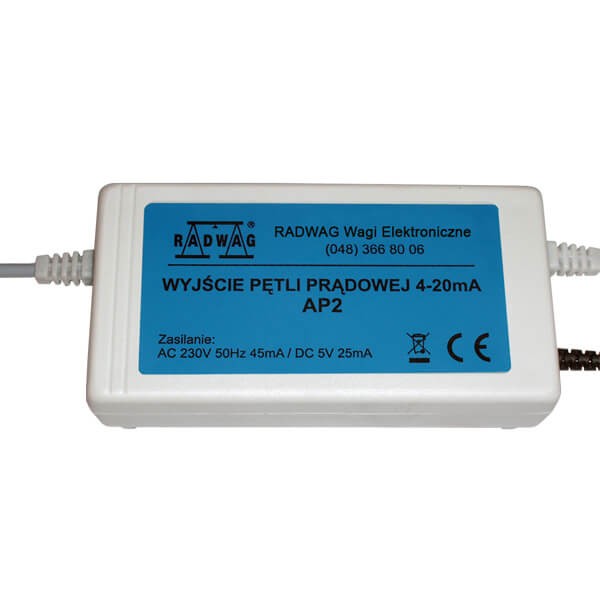

POWER LOOP OUTPUT – Model AP2-1 (plastic housing)

POWER LOOP OUTPUT - Model AP2-1 (plastic housing)

Overview

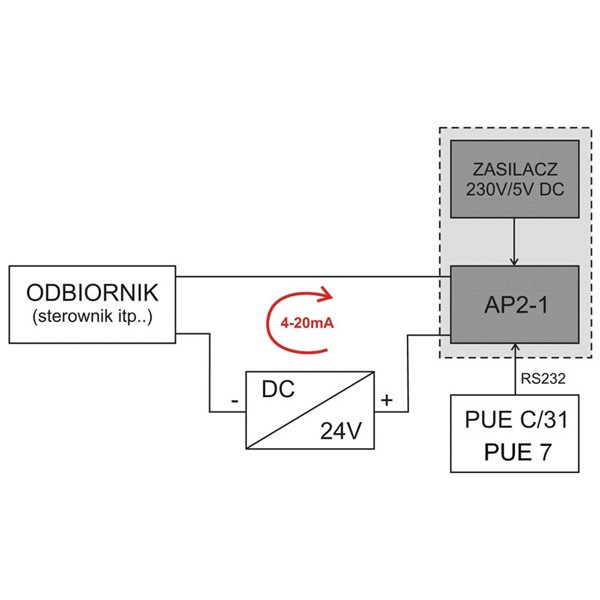

AP2-1 Current Loop unit 4–20 mA has been designed to convert digital value of mass to analog value. It is a unit of passive type, i.e. it requires to be supplied with power from an external source, of 24 VDC voltage value.

AP2-1 Current Loop unit indicates mass as:

  • absolute value (no sign),
  • positive values exclusively,
  • mass value with sign.

The AP2-1 is intended for cooperation mainly with scales operated via PUE C/31 and PUE 7 indicators. It is housed in a plastic casing, and powered with power supply 230V/5VDC. The AP2-1 and the power supply are sold as a set. The current circuit is led through 1.7-meter-long cable
