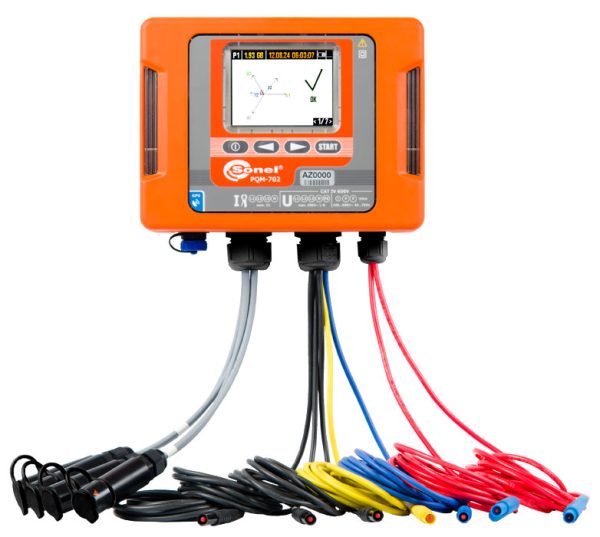

Power Quality Analyzer

MODEL: PQM-702

MANUFACTURER: SONEL

PQM-702 Power quality analyzer Features:

• Power from the measured network.
• Designed for use in virtually all network types from 64 V to 760 V directly, with particular emphasis on measurements at low voltage poles, due to the ease of installation.
• Independent power supply makes it particularly suitable for measurements behind voltage transformers. It can also be used for measurements in DC voltage systems.
• Remote configuration and data transfer (GPRS) in real time using the built-in GSM modem.
• Anti-theft function – text message notification in case of position change – built-in GPS receiver.
• Real time clock synchronized using GPS protocol.

SKU: AME-7124-7
Add to wishlist

Description

SONEL Power Quality Analyzer

A Power quality analyzer is used to measure electric power signals to determine the load’s ability to function properly with that electric power. Without the correct electric power, electrical equipment may fail prematurely or malfunction.

Thus The Sonel PQM-702 Power Quality Analyzer is a mobile, comprehensive power quality analyzer suitable for measuring electrical parameters in accordance with the standard IEC 61000 Class A. It can be used to check power quality according to various ordinances and provides a detailed overview of the system’s operation and any possible disturbances.

As a standard, the power quality analyzers are equipped with an 8 GB memory card, which allows you to collect over 4500 parameters simultaneously – at intervals of up to 200 ms. In addition to checking the power quality according to standards and ordinances, it allows you to create a detailed situation picture in terms of operation and possible disturbance.

However, nothing stands in the way to make this image even clearer – the manufacturer can expand the memory to 32 GB (optional). PQM-702 power quality analyzer control signals in power networks.The built-in GPS receiver ensures real time clock accuracy, and the integrated GSM modem facilitates remote analyzer operation.

The power quality analyzers are addressed to users who need to control power quality using a mobile device that meets the requirements of the IEC 61000 class A standard for power quality analyzers. PQM-702 fully satisfies the functional needs of power quality analysis and interference diagnostics in power networks. They are used in the field of professional energy and maintenance services in industrial plants, as well as among independent power quality specialists.



PQM-702 Power quality analyzer features

• Power from the measured network.
• Designed for use in virtually all network types from 64 V to 760 V directly, with particular emphasis on measurements at low voltage poles, due to the ease of installation.
• Independent power supply makes it particularly suitable for measurements behind voltage transformers. It can also
be used for measurements in DC voltage systems.
• Remote configuration and data transfer (GPRS) in real time using the built-in GSM modem.
• Anti-theft function – text message notification in case of position change – built-in GPS receiver.
• Real time clock synchronized using GPS protocol.



PQM-702 Power quality analyzer possible measurements:

• Voltages L1, L2, L3, N, PE (ive measurement inputs) – average, minimum, maximum and instant values within the range up to 1000 V, interoperability with voltage transducers.
• Currents L1, L2, L3, N (four measurement inputs) – average, minimum, maximum and instant values, current measurement within the range up to 6 kA (depending on applied current clamp), interoperability with current transducers.
• Crest factors for current (CFI) and voltage (CFU).
• Frequency within the range of 40 Hz – 70 Hz.
• Active power (P), reactive power (Q), distortion power (D), apparent power (S) with identification of the nature of reactive power (capacitive, inductive).
• Calculation of reactive power using the Budeanu method and IEEE 1459 method.
• Active energy (EP), reactive energy (EQ), apparent energy (ES).
• Power factor (PF), cosφ, tanφ.
• K factor (transformer overload caused by the harmonics).
• Harmonics up to the 50th in voltage and current.
• Interharmonics measured as groups.
• Total harmonic distortion THD for current and voltage.
• Short-term (PST) and long-term (PLT) light licker index.
• Unbalance of voltages (in compliance with IEC 61000-4-30 class A) and current

• Event logging along with oscillograms.

The power quality analyzer is designed to work with networks:

  1. with nominal frequency 50/60 Hz,
  2. with nominal voltage:
    64/110 V; 110/190 V; 115/200 V; 127/220 V; 220/380 V; 230/400 V; 240/415 V; 254/440 V; 290/500 V; 400/690 V,
  3. DC network
  4. Systems:
  • single-phase,
  • two-phase with common N conductor,
  • three-phase star connection with and without N conductor,
  • three-phase delta.
  • three-phase – WYE and Delta Aron
  • with current and voltage transducers
Specification Range Resolution Accuracy
AC voltage (TRMS) – 0,0…1000,0 V 0,01 % Un ±0,1% Un
Crest Factor Voltage 1,00…10,00 (≤1,65 for voltage 690 V) 0,01 ±5%
Crest Factor Current 1,00…10,00 (≤3,6 Inom) 0,01 ± 5% m.v.
AC current TRMS – depends on the clamp* 0,01 % of nominal range ±0,1% of nominal range (add clamps accuracy)
Frequency – 40,00…70,00 Hz 0,01 Hz ±0,01 Hz
Active, reactive, apparent power and distortion – depends of configuration (transformers, clamp) up to 4 decimal places depends on configuration (transformers, clamp)
Active, reactive apparent energy – depends of configuration (transformers, clamp) up to 4 decimal places the same as above
cosφ and Power Factor (PF) – 0,00…1,00 0,01 ±0,03
tgφ – 0,00…10,00 0,01 depends on Active and Reactive power accuracy
Harmonics Voltage same as for AC voltage TRMS same as for AC voltage TRMS ±5% Uh for Uh ≥ 1% Un ±0,05% Un for Uh < 1% Un
Harmonics Current same as for AC current TRMS same as for AC current TRMS ± 5% Ih for Ih ≥ 3% In ± 0,15% In for Ih < 3% In
Total Harmonics Distortion Voltage 0,0..100,0% 0,1% ±5%
Total Harmonics Distortion Current  0,0..100,0%  0,1%  ±5%
Harmonics active and reactive power – depends on configuration (transformers, clamp) depends on current and voltage minimum value –
Angle between voltage and current harmonics – -180,0…+180,0o 0,1o ±(h x 1o)
K-Factor – 1,0…50,0 0,1 ±10%
Flicker – 0,20…10,00 0,01 ±5%
Unbalance Voltage and Current 0,0…20,0% 0,1% ±0,15% (absolute error)

*Clamp F-1/F-2/F-3:0..3000 A (10000 Ap-p)

*Clamp C-4: 0..1000 A (3600 Ap-p)

*Clamp C-5: 0..1000 A (3600 Ap-p)

*Clamp C-6: 0..10 A (36 Ap-p) (without current transformers)

*Clamp C-7: 0…100 A (360 Ap-p )
