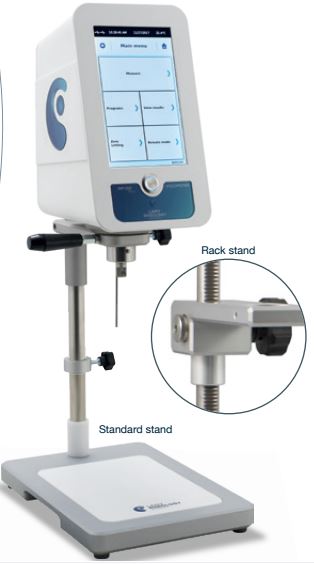

RM 100 PLUS VISCOMETER WITH MS-R1 TO 5 IN CASE AND STANDARD STAND

RM 100 PLUS AC 265 VISCOMETER WITHOUT STAND
RM 100 PLUS VISCOMETER WITHOUT STAND

$14,792.88

RM 100 PLUS VISCOMETER WITH MS-R1 TO 5 IN CASE AND STANDARD STAND

MANUFACTURER: LAMY RHEOLOGY

REF NUM: N102000

SKU: EA-1110-4428
Add to wishlist

Description

RM 100 PLUS VISCOMETER WITH MS-R1 TO 5 IN CASE AND STANDARD STAND

RM 100 PLUS VISCOMETER WITH MS-R1 TO 5 IN CASE AND STANDARD STAND

Viscosity range (mPa.s): 12 to 475M

FEATURES AND BENEFITS

• Speed or shear rate control.
• Huge speed and torque range.
• Direct control of temperature unit.
• Inbuilt software for programming.
• Direct measure with time to stop.
• User and locked mode.
• Data recording and USB transfer.
• Torque gage on display.
• Integrated temperature probe.
• Printer connection.
• Compatible with RheoTex software.
• Display of viscosity limits according to
mobile and speed.
• Multistep method.
• LIMS function.
• QC limits function.

SPECIFICATIONS

Type of instrument: Rotating springless viscometer with 7’’ Touchscreen
Accuracy: +/- 1 % of the full scale; Repeatability: +/- 0,2%
Display; Viscosity (cP / Poises or mPa.s / Pa.s)
Speed – Shear rate – Torque (% – mNm) – Shear stress – Time – Temperature
Languages: French/English/Russian/Spanish/Turkish/German/Italian
Rotation speeds: Unlimited number of speeds between 0.3 and 1500 rpm
Torque range: From 0.05 to 30 mNm
Printer connection:USB Host Port – Compatible PCL/5
PC connections: RS232, USB and Ethernet
Temperature Probe: Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C
Supply voltage: 90-240 VAC 50/60 Hz
Analog output: 4 – 20 mA
Dimensions and weight;
Head: D180 x H230 x W130 mm
Aluminium stand: L280 x W200 x H30 mm
Stainless steel rod: Length 500 mm
Weight: 6.7 kg

Type of instrument: Rotating springless viscometer with 7’’ Touchscreen
Accuracy: +/- 1 % of the full scale; Repeatability: +/- 0,2%
Display; Viscosity (cP / Poises or mPa.s / Pa.s)
Speed – Shear rate – Torque (% – mNm) – Shear stress – Time – Temperature
Languages: French/English/Russian/Spanish/Turkish/German/Italian
Rotation speeds: Unlimited number of speeds between 0.3 and 1500 rpm
Torque range: From 0.05 to 30 mNm
Printer connection:USB Host Port – Compatible PCL/5
PC connections: RS232, USB and Ethernet
Temperature Probe: Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C
Supply voltage: 90-240 VAC 50/60 Hz
Analog output: 4 – 20 mA
Dimensions and weight;
Head: D180 x H230 x W130 mm
Aluminium stand: L280 x W200 x H30 mm
Stainless steel rod: Length 500 mm
Weight: 6.7 kg
