Description

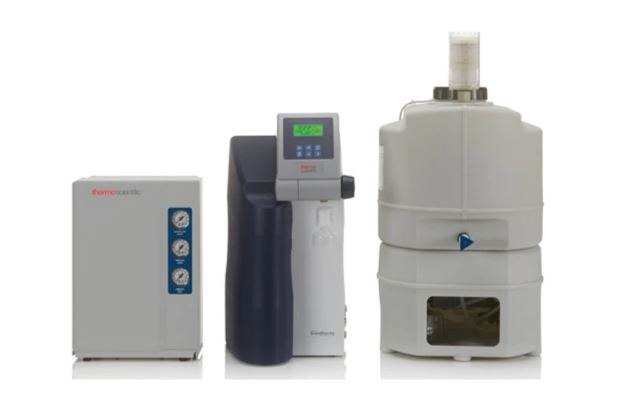

Barnstead Smart2Pure Pro Water Purification System
All in One ! The Smart2Pure Pro system is a compact system which converts tap water to into ASTM Type 1. The Smart2Pure Pro UV/UF 16 LPH offers the choice of a 30 L or 60 L reservoir for customizable storage capacity and ability to dispense both ASTM Type 1 and Type II water.
Lasting economy:
- Water purification progresses through independent cartridges with Aquastop quick connects for fast replacement.
- Module 1 reverse osmosis catridges to remove up to 99% of tap water impurities
- Module 2 includes a polishing cartridge that contains high-quality ultrapure resin for consistent purity and long cartridge life.
Easy-to-operate:
- Dispensing is easy and features variable speed to control flow.
- The display can be tilted for optimal reading.
- Simplified User Interface
Placement Options:
- Position on laboratory bench
- Mount it on the wall
New Features:
- Automatic Standby mode when system is not in use recirculates water through system to maintain purity
- Leak detector shuts off water supply and system if leak is detected
- Alerts show on display when to replace consumables
- Reverse osmosis water quality monitoring
- Inline ultrafilter with large surface area to remove endotoxins and nucleases.
- System parameters are code-protected to prevent accidental changes to set points
Smart2Pure Pro offers reservoir options, either 30 or 60L:
- Large opening allows easy and effective cleaning by hand.
- Sterile venting filter/reservoir overflow protects against contamination by microorganisms.
- Optional CO2 absorber prevents TOC value increases from drawn-in CO2.
- Polyethylene reservoir is opaque to light.
- Recirculation pump protects the high purity water from bacterial growth during standstills and maintains the low conductivity value.
- Wall-mount is optional for simple space-savings.
- Conical bottom outlet allows for complete draining and efficient cleaning and disinfection.
Optional Hand Dispenser:
- Gain increased flexibility by adding a hand dispenser with 3m cord (Part #50138221)
Additional information
| Weight | N/A |
|---|---|
| Product code | 50157872, 50157873, 50157882, 50157877 |
| Model | Smart2Pure Pro 16 UV/UF with 60L Tank – Complete system, Smart2Pure Pro 16 UV/UF with 30L Tank – Complete system, Smart2Pure Pro 16 UV/UF and 30L Tank, Smart2Pure Pro 16 UV/UF and 60L Tank |
| Includes | Complete system includes Barnstead Pretreatment system with cartridges, RO/pretreatment cartridge, an ultrapure polisher cartridge, sterile 0.1 μm filter, UV lamp, UF filter, 60 L tank, CO2 vent filter, sterile overflow and system wall bracket, Complete system includes Barnstead Pretreatment system with cartridges, RO/pretreatment cartridge, an ultrapure polisher cartridge, sterile 0.1 μm filter, UV lamp, UF filter, 30 L tank, CO2 vent filter, sterile overflow and system wall bracket, Complete system includes RO/pretreatment cartridge, an ultrapure polisher cartridge, sterile 0.1 μm filter, UV lamp, UF filter, 30 L tank, CO2 vent filter, sterile overflow and system wall bracket, Complete system includes RO/pretreatment cartridge, an ultrapure polisher cartridge, sterile 0.1 μm filter, UV lamp, UF filter, 60 L tank, CO2 vent filter, sterile overflow and system wall bracket |
| Frequency | 50/60 Hz |
| Feedwater Connector | 3/4 in. NPT and 1/2 in. NPT |
| Product Water Type | Type 1 and 2 |
| TOC Monitor with UV Intensity Monitoring | No |
| Type | Water Purification System |
| Conductivity | Type 1: 0.055μS/cm and Type II: 0.067 to 0.1μS/cm |
| Feedwater Source | Tap |
| Flow Rate | Up to 1 L/min. |
| Total Organic Carbon | 1 to 5 ppb |
| Bacterial Content | <0.01 CFU/mL |
| Particles >0.2µM/mL | <1 |
| Feed Water Monitoring | No |
| Feedwater Pressure | 1 to 6 bar |
| Height (Metric) | 545 mm |
| Width (Metric) | 305 mm |
| Operating Pressure | 1 to 6 bar |
| Voltage | 100/240 V |
| Bacterial retention | 0.99 |
| Depth (Metric) | 300 mm |
| Permeate performance | 16 L/hr. at 10°C |
| Power Consumption | 0.12 kW |
| RO Flow Rate | 16 L/hr. |
| Electrical Requirements | 100/240 V 50/60 Hz |
| Weight (Metric) | 22 kg |
| Unit Size | Each |
