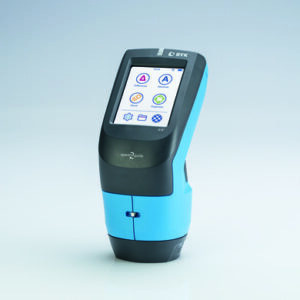

Spectro2go 45/0

Spectro2go 45/0

MANUFACTURER: BYK INSTRUMENTS

CAT NO: 7085 | 7086

Close-tolerance, handheld 45/0 spectrophotometer.

  • Color control as you see it with 45/0 geometry
  • 60° gloss measurement
  • Outstanding technical performance for use of digital standards

Features

Controlling color harmony of multi-component products within a global supply chain is a challenge. The outstanding technical performance of the spectro2go allows the use of digital standards. Thus, everybody aims for the same color and 60° gloss target.

  • Color and 60° gloss measurement in one
  • Exchange of digital standards due to excellent inter-instrument agreement
  • Balanced and upfront design with large color touchscreen
  • External checking and calibration standards
  • Live preview of the measurement spot with integrated camera
  • Smart high-tech LED illumination for excellent short-term, long-term and temperature stability
  • 10 year warranty on LED light source – no lamp change needed
  • Professional data analysis with smart-chart combined with WiFi or USB data transfer
SKU: N/A
Clear
Add to wishlist

Description

Spectro2go 45/0

Spectro2go 45/0

Close-tolerance, handheld 45/0 spectrophotometer.

  • Color control as you see it with 45/0 geometry
  • 60° gloss measurement
  • Outstanding technical performance for use of digital standards

Features

Controlling color harmony of multi-component products within a global supply chain is a challenge. The outstanding technical performance of the spectro2go allows the use of digital standards. Thus, everybody aims for the same color and 60° gloss target.

  • Color and 60° gloss measurement in one
  • Exchange of digital standards due to excellent inter-instrument agreement
  • Balanced and upfront design with large color touchscreen
  • External checking and calibration standards
  • Live preview of the measurement spot with integrated camera
  • Smart high-tech LED illumination for excellent short-term, long-term and temperature stability
  • 10 year warranty on LED light source – no lamp change needed
  • Professional data analysis with smart-chart combined with WiFi or USB data transfer

Technical Properties

    • Measuring Capability
      Color, Gloss

Color Measurement

    • Color Geometry
      45°c:0°
    • Sample Port
      12 mm
    • Measuring Area
      8 mm
    • Spectral Range Colorimetric
      400 – 700 nm, 10 nm resolution
    • Spectral Range Fluorescence
      340 – 760 nm, 10 nm resolution
    • Measurement Range
      0 – 170% remission
    • Repeatability Color
      0.01 ΔE94 (10 consecutive measurements on white)
    • Reproducibility Color
      0.1 ΔE94 (average of 12 BCRA II tiles)
    • Color Systems
      CIELab/Ch, Lab(h), XYZ; Yxy
    • Color Indices
      YIE313, YID1925, WIE313, CIE, Berger, Color Strength, Opacity, Metamerism, Grayscale
    • Illuminants
      A, C, D50, D55, D65, D75, F2, F6, F7, F8, F10, F11, UL30
    • Observer
      2°, 10°

Gloss Measurement

    • Repeatability Gloss 0-10
      ± 0.1 GU
    • Repeatability Gloss 10-100
      ± 0.2 GU
    • Reproducibility Gloss 0-10
      ± 0.2 GU
    • Reproducibility Gloss 10-100
      ± 1.0 GU
    • Gloss Geometry
      60°
    • Gloss Aperture
      5 x 10 mm
    • Measurement Range Gloss
      0 – 100 GU
    • Repeatability
      0-20 GU:     ± 0.1 GU

      20-100 GU: ± 0.2 GU

    • Reproducibility
      0-20 GU:     ± 0.2 GU
      20-100 GU: ± 1.0 GU

General

  • Memory
    4.000 Standards and 10.000 Samples
  • Interface
    USB port
  • Display
    3.5 ” Color Touchscreen
  • Languages
    English German French Italian Spanish Russian Japanese Chinese
  • Power supply
    Internal rechargeable battery
  • Power supply
    100 – 240 V, 50/60 Hz
  • Battery
    7.2 V, 2350 mAh, 16.92 Wh
  • Battery Capacity
    1200 readings
  • Weight
    0.7 kg
  • Weight
    1.5 lb
  • Operating temperature
    10 – 40 °C
  • Storing temperature
    0 – 60 °C
  • Operating temperature
    50 – 104 °F
  • Storing temperature
    32 – 140 °F
  • Relative humidity
    Up to 85 % non-condensing at 35 °C (95 °F)
  • Dimensions: L x W x H
    8.7 x 11 x 18.8 cm
  • Dimensions: L x W x H
    3.4 x 4.3 x 7.4 in
