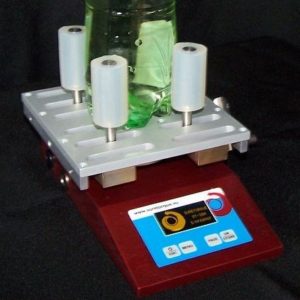

ST-C3 Manual Torque Tester (Sample size Ø15-Ø120 mm)

ST-P1-Pocket Torque Tester ST-P1-Pocket Torque Tester
ST-C3 Manual Torque Tester (Sample size Ø15-Ø115 mm)

$3,359.33

ST-C3 Manual Torque Tester (Sample size Ø15-Ø120 mm)

ST-C3 Manual Torque Tester (Sample size Ø15-Ø120 mm)

Manufacturer: Sure Torque

Product code: ST-C3

Features

  • PC software
  • normal clamping table (Sample size Ø15-Ø120 mm)
  • Ssock and water resistant, foamed heavy duty case.

The ST-C3 torque meter is a precisions electronic instrument. The unit offers the most advanced manual torque testing solution on the market. The graphical OLED display allows the monitoring of the release and application processes on torque-time diagram.

The results can be stored and sent to data collector too. The instrument’s memory can store 36 measuring results together with diagrams. The stored data’s can be saved to SD-card or to PC with RS-232 cable. A narrow paper dot printer is also attachable to the ST-C3 for printing the results directly into a report. The stored data’s:

  • The measurement number
  • The measurement’s date and time
  • The measurement results with unit (primary and secondary torque value
  • Instrument serial number (for easier identification if several units are in use)
  • The diagram of the measurement
SKU: EA-51540-5
Add to wishlist

Description

ST-C3 Manual Torque Tester (Sample size Ø15-Ø120 mm)

ST-C3 Manual Torque Tester (Sample size Ø15-Ø120 mm)

Features

  • PC software
  • normal clamping table (Sample size Ø15-Ø120 mm)
  • Ssock and water resistant, foamed heavy duty case.

The ST-C3 torque meter is a precisions electronic instrument. The unit offers the most advanced manual torque testing solution on the market. The graphical OLED display allows the monitoring of the release and application processes on torque-time diagram.

The results can be stored and sent to data collector too. The instrument’s memory can store 36 measuring results together with diagrams. The stored data’s can be saved to SD-card or to PC with RS-232 cable. A narrow paper dot printer is also attachable to the ST-C3 for printing the results directly into a report. The stored data’s:

  • The measurement number
  • The measurement’s date and time
  • The measurement results with unit (primary and secondary torque value
  • Instrument serial number (for easier identification if several units are in use)
  • The diagram of the measurement

Diagram drawing

The ST-C3 draws torque-time diagram of the release (or application) process. Besides the diagram, primary and the secondary peak torques are displayed. So the unit can be used for measuring the temper evident band’s bridge breaking torque too in one step with the initial release torque measurement.
The instrument can store both the results and the diagram. The stored results and diagrams can be recalled from the memory or exported to pc or printer

Quick release sample fixing
The ST-C3 can be equipped with Sure Torque’s special quick release mechanism for the sample fixing. Once the sample is fixed you just need to flip the handle to release the sample. To fix the next same sized sample, the handle just needs to be flipped back into the normal position. So for overcharging the samples there is no need to turn the handle back and for again, just flip the handle!

Technical details

  • Electric supply: DC 3,7 V with built in Li-ion battery, charger for AC 230V / AC 115V
  • Torque range: -5 – +5 Nm (cca. -50 – +50 inlb
  • Measuring resolution: +/- 0,25%
  • Display resolution: 0,001 Nm (0,01 inlb)
  • Torque measurement units: LbfIn, LbfFt, Nm, dNm, Ncm, kgfcm
  • Sampling frequancy: 100 / 200 / 400 Hz (10/5/2.5 ms) – in menu selectable
  • Display: 128×64 graphical lcd
  • Displaied values: actual and peak torque on the same screen, time-torque diagram
  • Internal memory: 36 data’s with diagram
  • Stored data’s: measurement nr, peak results, date, time, diagram, instrument serial number
  • Communication: SD-card, RS232 for data collector, pc and serial printer
  • Heavy duty waterproof case
  • Sample size Ø15-Ø115/120 mm
  • Capable closure types: any kind of twist cap
  • Dimensions (w x d x h): 185 x 140 x 57 mm
  • Weight: 1,75 kg
  • Resistance grade: IP-54
