Description

SYNCHRONIZATION METER / SYNCHRONOSCOPE

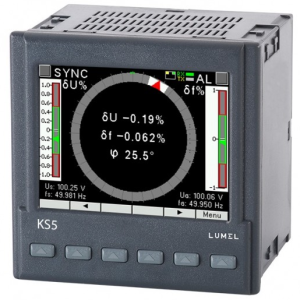

The KS5 digital synchronizing unit has been designed for the synchronization of generators

switched for parallel operation with the grid or with other generators with rated frequency of 50 or 60 Hz. Frequency differences, voltage values, and phase shifts are shown on a 3.5“ color TFT display screen with a resolution of 320 x 240 pixels. Bar graphs with zero in the middle marked f and δU indicate respectively the difference in frequency and the difference in voltage values of the generator and network signals. Phase shift φ of the generator and network voltage signals is indicated by a circular synchronoscope. The spin speed corresponds to the difference between the network and the generator frequency. The synchronization point, i.e. the moment when the frequency, voltage and phase values of the generator and the network are equal, is indicated by green indicators on the bar graphs and inside

the circle. With proper control of the BLK and START signals (detailed in p.7.3), the SYNC

synchronization relay will be activated. The values of the measured quantities and deviations can be transferred to the master system via RS485 interface or Ethernet.



The synchronizing unit has a galvanic separation between the individual blocks of:

– power supply,

– voltage inputs,

– Input control signals,

– RS485 Interface,

– Ethernet Interface:

– relay outputs



METER SET

Complete set of the Analyzer includes:

1. KS5 synchronizing unit 1 pc.

2. gasket 1 pc.

3. mounting brackets to fix the device in the panel 4 pcs.

4. connector with 16 screw terminals 1 pc.

5. connector with 14 screw terminals 1 pc
