Temp Control Climate Chamber (Temp range: ambient -70℃ ~ 120℃)
Price range: $12,849.10 through $24,559.30
Temp Control Climate Chamber (Temp range: ambient -70℃ ~ 120℃)
150 L, 288 L, 408 L, 800 L, 1200 L,
MANUFACTURER: SH SCIENTIFIC
- Description
- Size Guide
- Additional information
- Vendor Info
- More Products
Description
Temp Control Climate Chamber (Temp range: ambient -70℃ ~ 120℃)
150 L, 288 L, 408 L, 800 L, 1200 L
| PART NUMBER | DESCRIPTION |
| SH-CH-150U2 | Forced convection type, 150 L, -50℃ to 120℃ |
| SH-CH-288U2 | Forced convection type, 288 L, -50℃ to 120℃ |
| SH-CH-408U2 | Forced convection type, 408 L, -50℃ to 120℃ |
| SH-CH-800U2 | Forced convection type, 800 L, -50℃ to 120℃ |
| SH-CH-1200U2 | Forced convection type, 1200 L, -50℃ to 120℃ |
Temp Control Climate Chamber Features:
– -40℃ Cool-Down
– Excellent temperature uniformity and accuracy
– Non-dew condensation observation window
– Powerful computer interface function
– Multiple computer interface for operation state
– SD Card installation allows real time recording
– Safety assurance with C.E conformity
TEMP CONTROL CLIMATE CHAMBER SPECIFICATIONS:
| Model | SH-CH-150U2 |
| Temp Range | Ambient -70℃ ~ 120℃(Ambient -10℉~248℉) (Low limit -50℃) |
|
Dimension Internal
(W×D×H) |
500x500x600mm
19.69×19.69×23.62” |
|
Dimension External
(W×D×H) |
920x995x1555mm
36.22×39.17×61.22” |
| Weight | 265 Kg |
| Capa | 150 L |
| Hepa Capa | 3 KW |
| Temp Accuracy & Stability | ±0.1℃ |
| Temp Uniformity | ±0.5℃ |
| Cool Down Time | 23℃ ~ -40℃ (73.4℉~-40℉) About 40min |
| Heating Up Time | -40℃ ~ 100℃ (-40℉~212℉) About 40min |
| Temp Controller | Microprocessor Programmable Controller Touch Screen Type |
| Material Internal | Stainless Steel |
| Material External | Steel Plate with Powder Heating Coated |
| Shelves | 2 Supplied (17 Maximum) |
| Electric Requirements
230V, 50/60Hz, 1Φ |
21.0 A |
| Cat. No. 50Hz(60Hz) | CH150U2230-50 (CH150U2230-60) |
| Electrical Requirements
230V, 50/60Hz, 3Φ |
N/A |
| Cat. No. 50Hz(60Hz) |
| Model | SH-CH-288U2 |
| Temp Range | Ambient -70℃ ~ 120℃(Ambient -10℉~248℉) (Low limit -50℃) |
|
Dimension Internal
(W×D×H) |
600x600x800mm
23.62×23.62×31.50” |
|
Dimension External
(W×D×H) |
1020x1095x1755mm
40.15×43.11×69.09” |
| Weight | 350 Kg |
| Capa | 288 L |
| Hepa Capa | 4 KW |
| Temp Accuracy & Stability | ±0.1℃ |
| Temp Uniformity | ±0.5℃ |
| Cool Down Time | 23℃ ~ -40℃ (73.4℉~-40℉) About 40min |
| Heating Up Time | -40℃ ~ 100℃ (-40℉~212℉) About 40min |
| Temp Controller | Microprocessor Programmable Controller Touch Screen Type |
| Material Internal | Stainless Steel |
| Material External | Steel Plate with Powder Heating Coated |
| Shelves | 2 Supplied (24 Maximum) |
| Electric Requirements
230V, 50/60Hz, 1Φ |
23.2 A |
| Cat. No. 50Hz(60Hz) | CH288U2230-50 (CH288U2230-60) |
| Electrical Requirements
230V, 50/60Hz, 3Φ |
N/A |
| Cat. No. 50Hz(60Hz) |
| Model | SH-CH-408U2 |
| Temp Range | Ambient -70℃ ~ 120℃(Ambient -10℉~248℉) (Low limit -50℃) |
|
Dimension Internal
(W×D×H) |
850x600x800mm
33.46×23.62×31.50” |
|
Dimension External
(W×D×H) |
1270x1095x1845mm
50.00×43.11×72.64” |
| Weight | 430 Kg |
| Capa | 408 L |
| Hepa Capa | 5 KW |
| Temp Accuracy & Stability | ±0.1℃ |
| Temp Uniformity | ±0.5℃ |
| Cool Down Time | 23℃ ~ -40℃ (73.4℉~-40℉) About 40min |
| Heating Up Time | -40℃ ~ 100℃ (-40℉~212℉) About 40min |
| Temp Controller | Microprocessor Programmable Controller Touch Screen Type |
| Material Internal | Stainless Steel |
| Material External | Steel Plate with Powder Heating Coated |
| Shelves | 2 Supplied (17 Maximum) |
| Electric Requirements
230V, 50/60Hz, 1Φ |
36.0 A |
| Cat. No. 50Hz(60Hz) | CH408U2230-50 (CH408U2230-60) |
| Electrical Requirements
230V, 50/60Hz, 3Φ |
21.0 A |
| Cat. No. 50Hz(60Hz) | CH408U2230-50-3 (CH408U2230-60-3) |
| Model | SH-CH-800U2 |
| Temp Range | Ambient -70℃ ~ 120℃(Ambient -10℉~248℉) (Low limit -50℃) |
|
Dimension Internal
(W×D×H) |
1000x800x1000mm
39.37×31.50×39.37” |
|
Dimension External
(W×D×H) |
1590x1325x2100mm
62.60×52.16×82.67” |
| Weight | 540 Kg |
| Capa | 800 L |
| Hepa Capa | 8 KW |
| Temp Accuracy & Stability | ±0.1℃ |
| Temp Uniformity | ±0.5℃ |
| Cool Down Time | 23℃ ~ -40℃ (73.4℉~-40℉) About 40min |
| Heating Up Time | -40℃ ~ 100℃ (-40℉~212℉) About 40min |
| Temp Controller | Microprocessor Programmable Controller Touch Screen Type |
| Material Internal | Stainless Steel |
| Material External | Steel Plate with Powder Heating Coated |
| Shelves | 2 Supplied (31 Maximum) |
| Electric Requirements
230V, 50/60Hz, 1Φ |
33 A |
| Cat. No. 50Hz(60Hz) | CH800U2230-50-3 (CH800U2230-60-3) |
| Electrical Requirements
230V, 50/60Hz, 3Φ |
19.1 A |
| Cat. No. 50Hz(60Hz) | CH-800U2380-50-3 (CH-800U2380-60-3) |
| Model | SH-CH-1200U2 |
| Temp Range | Ambient -70℃ ~ 120℃(Ambient -10℉~248℉) (Low limit -50℃) |
|
Dimension Internal
(W×D×H) |
1200x1000x1000mm
47.24×39.37×39.37” |
|
Dimension External
(W×D×H) |
1790x1525x2100mm
70.47×60.03×82.67” |
| Weight | 760 Kg |
| Capa | 1200 L |
| Hepa Capa | 8 KW |
| Temp Accuracy & Stability | ±0.1℃ |
| Temp Uniformity | ±0.5℃ |
| Cool Down Time | 23℃ ~ -40℃ (73.4℉~-40℉) About 40min |
| Heating Up Time | -40℃ ~ 100℃ (-40℉~212℉) About 40min |
| Temp Controller | Microprocessor Programmable Controller Touch Screen Type |
| Material Internal | Stainless Steel |
| Material External | Steel Plate with Powder Heating Coated |
| Shelves | 2 Supplied (31 Maximum) |
| Electric Requirements
230V, 50/60Hz, 1Φ |
33 A |
| Cat. No. 50Hz(60Hz) | CH1200U2230-50-3 (CH1200U2230-60-3) |
| Electrical Requirements
230V, 50/60Hz, 3Φ |
19.1 A |
| Cat. No. 50Hz(60Hz) | CH-1200U2380-50-3 (CH-1200U2380-60-3) |
• Temp Control Climate Chamber Accessory
– Movable stainless wire shelves 2EA
• Option
– Digital recorder
– 2CH Hybrid recorder
– Max temperature 150℃
• Safety Device
– Automatic reset function incoming cut
– Over temp protection
– Electric leakage breaker
– Door open lamp display
– Fan motor over load protection
– Refrigerator over load protection

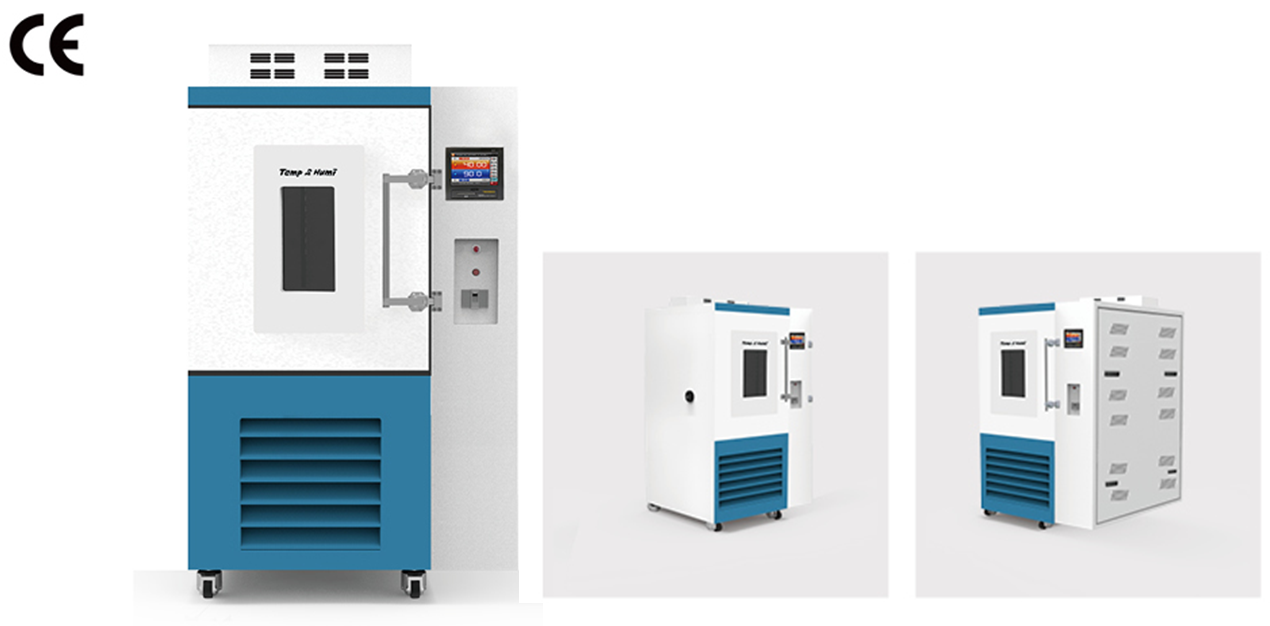

Temp Control Climate Chamber
-Feature
A Climate Chamber (Temp Control Model) is used for testing material behaviors under constant temperature conditions. This unit has a powerful cooling system, interface functions. It also contains a non-dew observation window and
an economic heating up function.

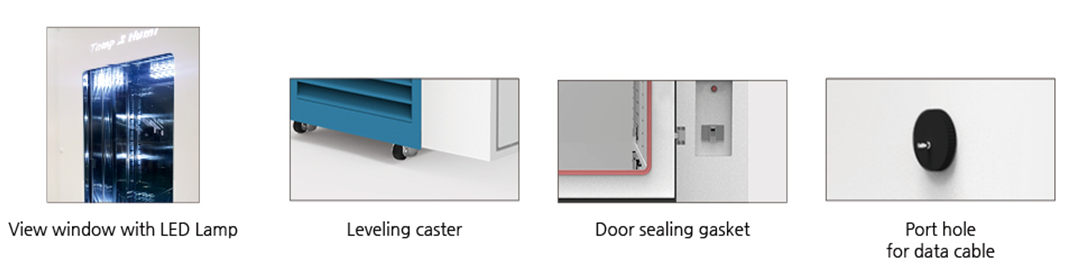

– Excellent temperature uniformity and accuracy
– Non-dew condensation observation window with LED lamp
– Powerful computer interface function
– Multiple display options for operate state
– SD Card installation allows real-time recording
– Leveling casters
– Door sealing gasket
– Port hole for data cable
– Safety assurance with CE conformity

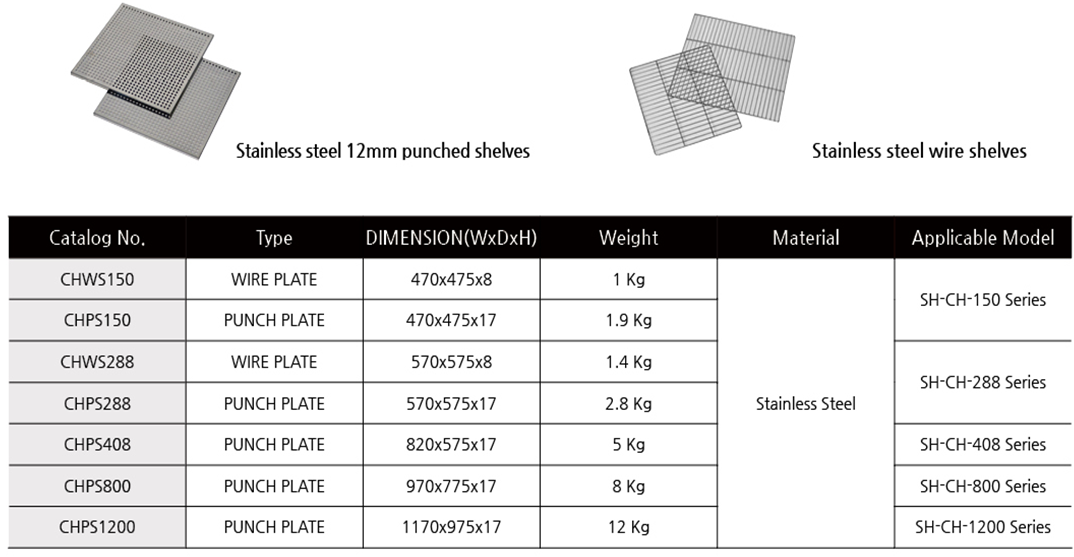

Shelves details
Digital Recorder – Optional

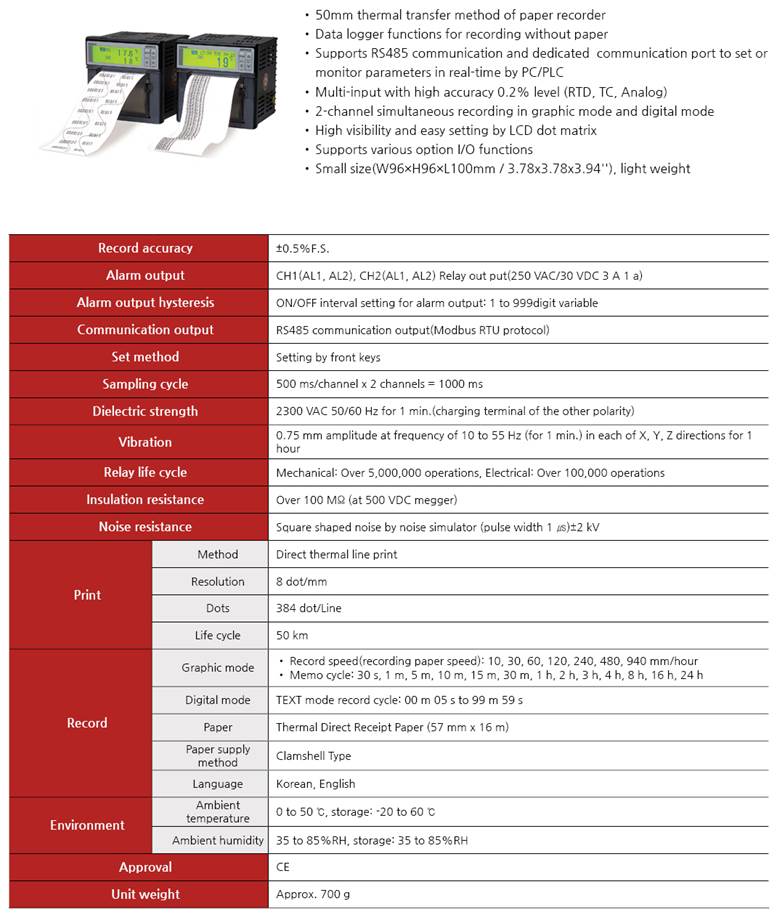

Hybrid Recorder – Optional
MANUFACTURER:
Additional information
| Volume | 150 L, 288 L, 408 L, 800 L, 1200 L |
|---|
