Thermal Imaging Camera – KT-80
$1,321.26

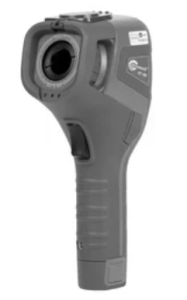

THERMAL IMAGING CAMERA-KT-80
Manufacturer: Sonel S.A
Product Code:EA-5617-1
Sonel KT series is an efficient, budget-friendly and professional infrared camera.
This robust and very handy high-tech system thanks to its intuitively learnable handling and user-friendly single hand operation, which makes in an ideal tool for troubleshooting electrical installations, mechanical components, buildings, process equipment, HVAC/R equipment and others.
Features and benefits of Sonel KT:
- Friendly UI, easy to use without training,
- Affordable as entry level diagnostic tool,
- Removable large capacity Li-ion battery,
- 4 hour working time,
- 3,5’’ large screen with no image cropping, high brightness screen to show image with no detailed information lost even outdoor or in highlight,
- Rugged and compact design, metal internal structure,
- Standard Micro USB interface for data transmission and charging,
- Wi-Fi connection (Optional).
- Description
- Size Guide
- Technical Specification
- Downloads
- Vendor Info
- More Products
Description
THERMAL IMAGING CAMERA-KT-80
Sonel KT series is an efficient, budget-friendly and professional infrared camera.
This robust and very handy high-tech system thanks to its intuitively learnable handling and user-friendly single hand operation, which makes in an ideal tool for troubleshooting electrical installations, mechanical components, buildings, process equipment, HVAC/R equipment and others.
Features and benefits of Sonel KT:
- Friendly UI, easy to use without training,
- Affordable as entry level diagnostic tool,
- Removable large capacity Li-ion battery,
- 4 hour working time,
- 3,5’’ large screen with no image cropping, high brightness screen to show image with no detailed information lost even outdoor or in highlight,
- Rugged and compact design, metal internal structure,
- Standard Micro USB interface for data transmission and charging,
- Wi-Fi connection (Optional).
Applications:
- Electric inspection and diagnosis,
- Building inspection and diagnosis,
- Mechanical equipment maintenance,
- Manufacturing process service,
- Petrochemical industry maintenance.
SPECIFICATION
| Lens | 8mm |
| Thermal | |
| Detector resolution | 80 × 80 pixels |
| Spectral range | 8 ~ 14 μm |
| Focus | Manual |
| Focal lenght/ Field of View | 8mm / 18.5° x 18.5° |
| Thermal Sensivity | ≤0.08°C@30°C |
| Zoom | – |
| Palettes | 4 |
| Interface | Mikro-USB |
| Image Presentation | |
| Display | LCD, 3.5’’LCD (320 x 240 pixels), Three step LCD backlit |
| Frequency | 50 Hz |
| Measurement | |
| Accuracy | ±2°C or ±2% of reading (for ambient temperature from range 10°C…35°C, otherwise ±3°C or ±3% of reading), distance 1 m – 5 m |
| Temperature Range | 0°C…+250°C |
| Measurement conditions correction | Emissivity (0.01 – 1.00) |
| Measurement Features | |
| Point | Central |
| Max | Max temp. point |
| Min | Min temp. point |
| Alarm | – |
| Thermal pictures | |
| File format | JPG |
| Storage | removable SD card |
| Power Supply | |
| Battery type | 3,7 V 4200 mAh Li-Ion |
| Charging | Built-in (in camera) or external charger |
| External power supply | AC 110 V / 230 V AC, 50 Hz / 60 Hz |
| Battery Operating Time | over 4 hours |
| Physical Characteristics/ Environmental Specifications | |
| Encapsulation | IP43 |
| Size | 103 mm x 98 mm x 258 mm |
| Weight | 755 g |
| Operating Temperature | -10°C…50°C |
| Storage Temperature | -20°C…60°C |
| Humidity | 10% to 95%, without condensation |
| Shock | 25 G, IEC 68-2-29 |
| Vibration | 2 G, IEC 68-2-6 |
