Truflo® TIM Insertion Paddle Wheel Flow Meter | ½”-24″

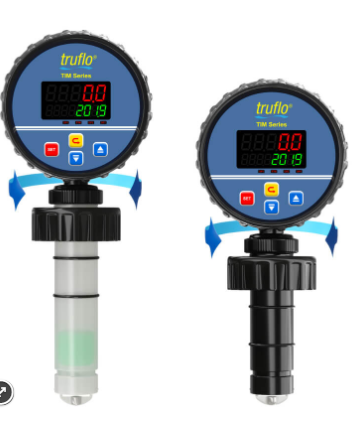

Equipped with a 360° rotatable head, along with a cinema-grade LED display you’ll have to see to believe.

Highly versatile to excel in any application

• PVC| PP| PVDF
• Blind | Local Display
• ½”-24” Pipe Sizes
• Pulse| 4-20mA | RS485 | Battery Operated

Truflo® TIM Insertion Paddle Wheel Flow Meter | ½”-24″

Paddle Wheel Flow Meter

Up to 24″ Pipe Size
Zirconium Ceramic Rotor | Bearings
Accuracy ±0.5% of Full Scale
Retrofits Into Signet® Type Fittings

The TIM Series digital paddle wheel flow meter has been designed for tough industrial applications. The TIM series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The plastic insetion flow meter is equipped with a 360° rotatable vivid LED display showing both Flow Rate & Flow Total and provides a 4-20mA output. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TIM liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TIM insertion paddle wheel flow meter is available in PVC, PP and PVDF. The flow sensors can be installed into pipe sizes ½ – 24” using our line of comprehensive custom fittings. Icon’s complete line of insertion paddle wheel flow meters will also retrofit into any Signet® style fitting.

The TIM digital flow meters are easy to install with exceptional long life performance. Truflo TIM Series Paddle Wheel Flow Sensors are highly repeatable, rugged sensors that offer exceptional value with little or no
maintenance.

The TIM Series has a process-ready open collector signal with a wide dynamic flow range of 0.1 to 10 m/s (0.3 to 33 ft/s). The sensor measures liquid flow rates in full pipes and can be used in low pressure systems.
The Truflo TIM Series sensors are offered in a variety of materials for a wide range of pipe sizes and insertion configurations. The many material choices including PVC, PP and PVDF make the model highly versatile and chemically compatible to many liquid process solutions.
Sensors can be installed in ½ – 24″ pipes using Truflo’s comprehensive line of custom fittings. These custom fittings, which include tees, saddles and weldolets, seat the sensor to the proper insertion depth into the process flow

Truflo® TIM Insertion Paddle Wheel Flow Meter Technical Features:
