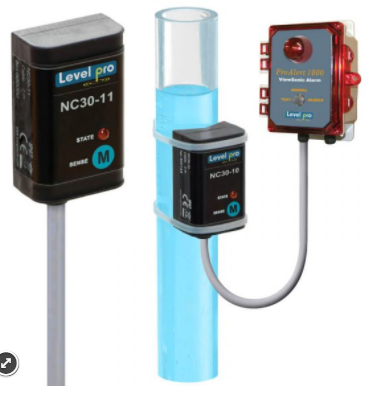

Truflo NC-30 Level | Flow Switch
$651.76
Truflo NC-30 Level | Flow Switch
Manufacturer: ICON PROCESS CONTROLS
Features
- All Plastic PP Design
- Non-Intrusive Liquid Level / Flow Detection through Plastic or Fiberglass Walls
- Easy Install
- LED Display
- M12 Disconnect or Fixed Cable Connector
- Measure up to 2″ Pipe Diameter – PVC,CPVC Sch 40, 80, SDR 11
- Senses up to 0.3″ (8mm) Wall Thickness
- Description
- Size Guide
- Additional information
- Datasheet
- Application | Output
- Vendor Info
- More Products
Description
Truflo NC-30 Level | Flow Switch
NC30 SERIES
Non-Contact Liquid Level | Flow Switch
Non-Contact
Senses through Wall
Relay Output
Liquid Level | Flow Switch
> Non-intrusive Liquid Level Detection
through Plastic or Fiberglass Walls
> Simple Relay Setting
> M12 Disconnect
> Measure up to 2″ Pipe Diameter (Sch 80)
> Senses up to 0.3″ | 8mm Wall Thickness
Conductive and Non-Conductive Liquids
The NC30 Non-Contact liquid Level | Flow Sensor has been designed using high frequency technology to sense the
presence of liquid | conductive | non conductive Suitable for Non-Metalic Tubing | Tanks | Drums | Pipe
Features:
- All Plastic PP Design
- Non-Intrusive Liquid Level / Flow Detection through Plastic or Fiberglass Walls
- Easy Install
- LED Display
- M12 Disconnect or Fixed Cable Connector
- Measure up to 2″ Pipe Diameter – PVC,CPVC Sch 40, 80, SDR 11
- Senses up to 0.3″ (8mm) Wall Thickness
More Features:
- All Plastic PP Design
- Non-Intrusive Liquid Level | Flow Detection through Plastic or Fiberglass Walls
- Small Footprint | Easy to Install
- LED Display
- M12 Disconnect or Fixed Cable Connector
- Fits on ½”- 2″ Diameter Pipe | Sch 40 | 80
- Senses up to 0.3″ | (8mm) Wall Thickness
Additional information
| Application | Output | Pipe-Switch Relay, Pipe-Pulse Relay, Tank-Switch Relay, Tank-Pulse Relay |
|---|
| PART NUMBER | APPLICATION | OUTPUT | |
| NC30-1-0-C-S | Pipe-Switch Relay | |
| NC30-1-0-C-P | Pipe-Pulse Relay | |
| NC30-1-1-C-S | Tank-Switch Relay | |
| NC30-1-1-C-P | Tank-Pulse Relay | |
