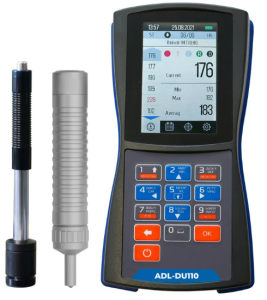

Universal hardness tester ADL-DU110
Universal hardness tester ADL-DU110

Universal hardness tester ADL-DU110

Ultrasonic Thickness Gauge ADL-UT20 Ultrasonic Thickness Gauge ADL-UT20
ADL M12 Portable Vibration Meter ADL M12 Portable Vibration Meter

$3,044.40

Universal hardness tester ADL-DU110

Universal hardness tester ADL-DU110
Manufacturer: Adelix
Cat.No.: ADL-DU110

The universal hardness tester ADL DU 110 is designed to check the hardness of metal products.

The ADL DU 110 hardness tester combines two hardness measurement methods: ultrasonic and dynamic. This makes the device a versatile and effective solution for every stage quality control of materials.

The universal hardness tester is used for a variety of tasks. It is suitable for measuring carbon and structural steels, superficially hardened iron products, heat resistant, corrosion resistant, stainless steels, galvanized coatings, hardfacing, products with complex configurations, fine structure and compact products.

The instrument is equipped with the Leib scale and standard calibrations for Rockwell, Vickers, Brinell and Shore, as well as the possibility to add additional scales for soft and hard materials. As an added feature, the user can create and then correct calibrations for various materials.

The built-in single-point calibration function allows you to create a custom scale for a particular material. If there is a known hardness measure, it is possible to independently calibrate the hardness tester and get results as close as possible to the values ​​of a fixed hardness tester. After that, you can quickly and easily check a large batch of materials while maintaining high accuracy of results.

The ADL DU 110 allows you to store and enter more than 500 custom scales, as well as view a history of measurements made across your business over time.

DYNAMIC SENSOR

It is recommended to use a G type dynamic probe to measure the hardness of solid products with poorly prepared surfaces and coarse grained structure. It has low sensitivity to product curvature and surface roughness.

The device can be equipped with additional interchangeable sensors of different sizes, spring stiffness and indentation stiffness.

ULTRASONIC SENSOR

With the help of an ultrasonic sensor, it is possible to easily solve the problems of measuring the hardness of grooves, surfaces with small radius, hard-to-reach places, products of complex shape and small parts.

Because it has a small identifier stamp, it can be well applied to measure the hardness of chuck surfaces of shaft journals, blades, gear teeth.

FEATURES OF ADL-DU110 HARDNESS TESTER:

  • Dustproof case.
  • Intuitive interface organized according to the “OPEN AND WORK” principle.
  • The adjustable backlight color display shows measurements clearly in bright sunlight and low light.
  • The notification of results exceeding the determined measurement norms is provided.
  • Unique statistical data processing system for real-time analysis of measurement results.
  • Single point calibration function.
  • Large memory – allows you to enter and save more than 500 custom scales and view the history of all measurements taken after the job is finished.
  • Possibility to save all measurement results by date and time. Possibility to display the results in tabular and graphic form for a detailed analysis of the obtained values.
  • Trouble-free operation of the device in harsh climatic conditions.
SKU: AME-112132-69
Add to wishlist

Description

Universal hardness tester ADL-DU110

Universal hardness tester ADL-DU110

Universal hardness tester ADL-DU110

The universal hardness tester ADL DU 110 is designed to check the hardness of metal products.

The ADL DU 110 hardness tester combines two hardness measurement methods: ultrasonic and dynamic. This makes the device a versatile and effective solution for every stage quality control of materials.

The universal hardness tester is used for a variety of tasks. It is suitable for measuring carbon and structural steels, superficially hardened iron products, heat resistant, corrosion resistant, stainless steels, galvanized coatings, hardfacing, products with complex configurations, fine structure and compact products.

The instrument is equipped with the Leib scale and standard calibrations for Rockwell, Vickers, Brinell and Shore, as well as the possibility to add additional scales for soft and hard materials. As an added feature, the user can create and then correct calibrations for various materials.

The built-in single-point calibration function allows you to create a custom scale for a particular material. If there is a known hardness measure, it is possible to independently calibrate the hardness tester and get results as close as possible to the values ​​of a fixed hardness tester. After that, you can quickly and easily check a large batch of materials while maintaining high accuracy of results.

The ADL DU 110 allows you to store and enter more than 500 custom scales, as well as view a history of measurements made across your business over time.

DYNAMIC SENSOR

It is recommended to use a G type dynamic probe to measure the hardness of solid products with poorly prepared surfaces and coarse grained structure. It has low sensitivity to product curvature and surface roughness.

The device can be equipped with additional interchangeable sensors of different sizes, spring stiffness and indentation stiffness.

ULTRASONIC SENSOR

With the help of an ultrasonic sensor, it is possible to easily solve the problems of measuring the hardness of grooves, surfaces with small radius, hard-to-reach places, products of complex shape and small parts.

Because it has a small identifier stamp, it can be well applied to measure the hardness of chuck surfaces of shaft journals, blades, gear teeth.

FEATURES OF ADL-DU110 HARDNESS TESTER:

  • Dustproof case.
  • Intuitive interface organized according to the “OPEN AND WORK” principle.
  • The adjustable backlight color display shows measurements clearly in bright sunlight and low light.
  • The notification of results exceeding the determined measurement norms is provided.
  • Unique statistical data processing system for real-time analysis of measurement results.
  • Single point calibration function.
  • Large memory – allows you to enter and save more than 500 custom scales and view the history of all measurements taken after the job is finished.
  • Possibility to save all measurement results by date and time. Possibility to display the results in tabular and graphic form for a detailed analysis of the obtained values.
  • Trouble-free operation of the device in harsh climatic conditions.
Measuring range Rockwell > Brinell Vickers
Measuring range in main scales 20 – 70 HRC 30 – 650 HB 230 – 940 HV
Measurement error (regulated by ISO or DSTU standards) 2 HRC In the range of 90-180 HB – 10 HB In the
range of 180-250 HB – 15 HB In
the range of 250-460 HB – 20 HB		 240-500 HV – 15 HV range
500-800 HV – 20 HV range
800-940 HV – 25 HV
Diameter of the platform to install the sensor For ultrasonic sensor:
– from 1 mm in aircraft,
– from 5 mm in a blind hole (groove)		 For dynamic sensor:
from 10 mm in aircraft
Programmable scales More than 500 additional scales
Algorithm to discard false readings (for higher reading accuracy) Yes
Calculation Average value for 1 – 20 measurements
Minimum, maximum, average value
Finding the results of incorrect measurements
Conversion of scales It is possible to convert the measured hardness to different scales.
Till Shockproof plastic casing, protected against drops with rubber tips
Operating temperature – 20 … +45 °С
Making of graphics All points in the series considered in calculating the mean value
display LCD TFT 3.5” 320×480 px
Language English
Connection with computer USB, the ability to configure and process results
Roughness (different sensors can work with different roughness of the product) Ultrasonic Dynamic
1.6 Ra For “D” type sensor – 3.2 Ra
For “G” type sensor – 7.2 Ra
For “E” type sensor – 1.6 Ra
Power source Internal battery
Overall dimensions 150×70×45 mm
Weight 0.3 kg

Delivery content

unit of measurement one
Dynamic D-type sensor one
ultrasonic sensor one
cable to sensor 2
PC connection cable one
Charger one
Hardness measuring scales content can be changed
carrying case one
User manual one
Verification certificate one
Passport one
