Application of the device

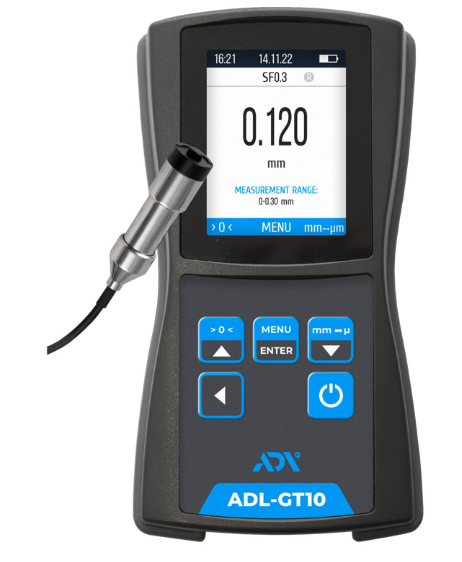

The Coating Thickness Meter ADL GT10 has excellent functionality, versatility and the ability to measure coatings on a variety of substrates. It is easy to use and does not cause difficulties in the process of mastering the device by new users.

The thickness gauge is capable of separately calibrating inductive and parametric transducers for the properties of specific bases and control coatings.

The device is designed for use in laboratory and production conditions.

An important role in everyday use is also played by a shockproof ergonomic case with rubber inserts and wear-resistant glass that protects the device from drops, accidental bumps and other physical impacts that can occur in a production environment.

Application area:

• Measuring the thickness of galvanized coatings and paint coatings on steel substrates;
• Measurement of the thickness of paint and varnish, polymeric and other dielectric coatings on steel bases thicker than 0.5 mm;
• Measuring the thickness of insulating and electroconductive non-ferromagnetic coatings on metal surfaces;
• Measuring the thickness of galvanic coatings on electroconductive ferromagnetic alloys;
• Measuring the thickness of dielectric coatings and electrically conductive non-ferromagnetic coatings on non-ferrous and ferrous metals;
• Measuring the thickness of dielectric thick-layer coatings on magnetic, non-magnetic substrates, ferrous and non-ferrous metals.
• Surface roughness measurement;
• Measurement of temperature, humidity and dew point.

The main advantages of the ADL GT10 Coating Thickness Gauge.

• using a combination of pulsed induction, eddy current parametric, and phase digital methods to obtain primary information;
• a wide range of wear-resistant transducers for various purposes, with working algorithms that exclude the influence of wear on the measurement error;
• user-friendly interface for measurements and processing of results;
• the possibility of carrying out tolerance control and measurements by averaging;
• no temperature and time deviations in readings;
• Possibility to control coatings on rough parts up to Rz=400 µm
• Possibility of individual calibration of inductive and parametric transducers according to the characteristics of specific bases and control coatings;
• automatic detection of the connected sensor;
• Possibility to store calibrations and measurement results in the non-volatile memory of the instrument with subsequent transfer to a PC via USB for statistical processing and storage;
• automatic shutdown after the end of measurements;
• standard Lemo connectors
• color LCD screen
• Built-in rechargeable battery provides up to 8 hours of continuous operation.
• dustproof, moistureproof, shockproof case

Features

Standard delivery content:

• Sensors according to the customer’s technical task;
• Precautions for zero setting according to customer’s specifications;
• Protective case;
• Manual;
• Wired charger;
