BOD EVO Sensor System 6 115V/60Hz
$2,639.93
BOD EVO Sensor System 6 115V/60Hz
Manufacturer: Velp
Product Code: EA-5723-17
The most convenient way to get reliable results automatically for BOD analysis. Data management and reporting become incredibly intuitive with the wireless data transmission to the exclusive BODSoft™
- Description
- Size Guide
- Vendor Info
- More Products
Description
BOD EVO Sensor System 6 230V/60Hz
Description of BOD EVO Sensor System 6 230V/60Hz
Construction Material: technopolymer
Power Supply: 230 V / 50-60 Hz
Power: 2 W
Weight: 2.3 Kg (5.1lbs)
The BOD EVO Sensor System 6 – 230V / 60Hz is an advanced analytical solution designed for the accurate and reliable determination of Biochemical Oxygen Demand (BOD) in water and wastewater samples. Engineered to meet the needs of modern environmental, industrial, and research laboratories, this system provides a precise, efficient, and user-friendly alternative to conventional BOD testing methods.
BOD analysis is a critical parameter for assessing organic pollution levels in wastewater, surface water, and effluents. The BOD EVO Sensor System 6 offers enhanced measurement accuracy, reduced manual intervention, and improved data consistency, making it ideal for laboratories focused on regulatory compliance, environmental monitoring, and quality assurance.
System Overview
The BOD EVO Sensor System 6 is designed to support simultaneous measurement of up to six samples, allowing laboratories to improve throughput without compromising analytical reliability. Operating on 230V / 60Hz power supply, the system integrates seamlessly into standard laboratory electrical environments.
The system uses a sensor-based measurement principle that continuously monitors oxygen consumption during the biological degradation of organic matter. This real-time monitoring capability ensures accurate tracking of microbial activity throughout the incubation period.
Measurement Principle
The BOD EVO Sensor System 6 operates using a pressure-based or oxygen consumption sensor principle (depending on configuration), which detects changes caused by microbial respiration in sealed sample bottles. As microorganisms consume oxygen while breaking down biodegradable organic compounds, the system records these changes and converts them into precise BOD values.
This approach eliminates many sources of error associated with traditional titration methods, providing higher reproducibility and improved data integrity.
Design and Construction
The system is constructed using durable, laboratory-grade materials designed for long-term operation under controlled conditions. Each sensor unit is designed for secure attachment to standard BOD bottles, ensuring airtight sealing and stable measurements throughout the test cycle.
The compact and modular design allows easy placement inside incubators, maximizing space efficiency while maintaining optimal operating conditions. The robust construction ensures resistance to temperature variations, humidity, and repeated handling.
Operational Efficiency
One of the key advantages of the BOD EVO Sensor System 6 is its ease of operation. The system reduces manual handling, minimizes preparation time, and simplifies data collection. Continuous monitoring eliminates the need for frequent sample checks, allowing laboratory personnel to focus on other critical tasks.
Data is typically logged automatically, ensuring traceability and supporting quality assurance requirements. The system supports standardized BOD test durations such as BOD₅, while also allowing extended measurements where required.
Accuracy and Reliability
The BOD EVO Sensor System 6 delivers consistent and reliable results through precise sensor technology and controlled incubation conditions. The system minimizes external influences and human error, providing reproducible data that meets regulatory and accreditation requirements.
Its stable measurement performance makes it suitable for routine analysis as well as research and method development applications.
Typical Applications
The BOD EVO Sensor System 6 – 230V / 60Hz is widely used in:
-
Wastewater treatment plant monitoring
-
Environmental laboratories and regulatory agencies
-
Industrial effluent analysis
-
Surface and drinking water quality assessment
-
Academic and research institutions
-
Environmental compliance and reporting
Installation and Maintenance
Installation of the BOD EVO Sensor System 6 is straightforward and does not require complex setup procedures. The system is compatible with standard laboratory incubators and BOD bottles. Routine maintenance is minimal and primarily involves sensor inspection, cleaning, and periodic verification.
The system’s robust design ensures long service life when operated in accordance with recommended laboratory practices.
Safety and Compliance
Designed for laboratory safety, the BOD EVO Sensor System 6 operates under low-risk conditions and complies with standard laboratory safety guidelines. Its operation aligns with internationally recognized methods for BOD determination and supports compliance with environmental monitoring standards.
Remote Operation

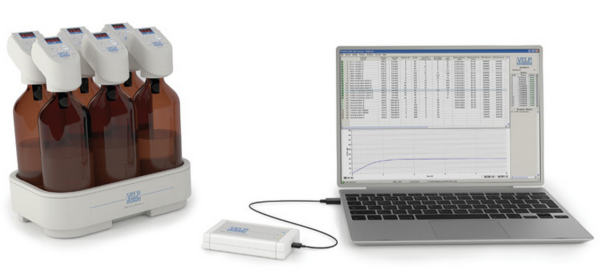

- Unique and revolutionary wireless sensor transmits data
- Wireless DataBox™ records transmitted data
- Dedicated BODSoft™ software processes the data
- Up to 80 sensors can be monitored simultaneously
Precise Control
- Measurement on scales of 90, 250, 600 and 999 ppm BOD
- Higher values can be measured by diluting the sample
- Models with stirring stations offer VELP stirring quality
Extremely Practical
- Fits directly on the bottle containing the sample
- Customizable intervals, automatic storage of the data
- Enables analysis to continue over the weekend
- Results directly readable at any time, even after five days
- Direct readout in mg/l (ppm) and graph creation on PC
- Compact stirring stations
Priority to Safety
- IP 54 protection against particle and liquid ingress
- Class 3 IEC 1010 conformity
Complete Package

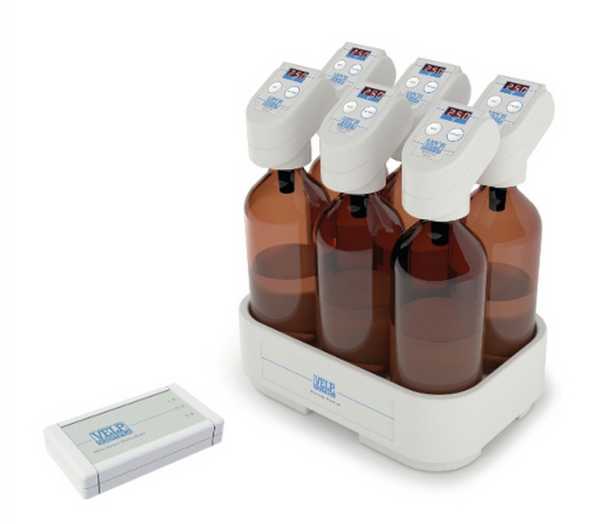

- BOD EVO Sensor System 6, a complete package for 6 tests
6-position stirring station, 6 BOD EVO Sensors, dark glass bottles, alkali holders & stirring bars.
Stirring stations are designed for simple handling, ensuring the VELP stirring quality.
Up to 5 stirring stations with 6 positions (30 samples) can be placed in a VELP incubator (FOC 215E)
Recommendations
- After purchasing a BOD EVO Sensor System 6 including Wireless DataBox™, you only need to buy systems without the Wireless DataBox™ until you reach a limit of 80 sensors
Conclusion
The BOD EVO Sensor System 6 – 230V / 60Hz is a reliable, efficient, and accurate solution for modern BOD analysis. By combining advanced sensor technology with user-friendly operation and robust construction, it offers laboratories a dependable tool for routine and regulatory water quality testing.
This system is ideal for organizations seeking improved analytical performance, reduced manual workload, and consistent, high-quality BOD measurement results.
| PERFORMANCE | |
| Reading value: | mg/l (ppm) directly on the display |
| Measurement by electronic pressure probe | |
| Bottle total capacity: | 500 ml |
| Stored data: | 5 BOD values at 24h intervals |
| BOD values: | directly on the display at any time also after the standard 5 days period |
| BODlast determination: | possible |
| Scales: | 90, 250, 600, 999 ppm BOD. Higher values after dilution |
| Display: | digits 3 LED |
| Safety class: | 3 IEC 1010 |
| Electronic protection degree CEI EN 60529: | IP 54 |
