Bore alignment system / Easy-Laser E950-A

Product description

Bore alignment system / Easy-Laser E950-A

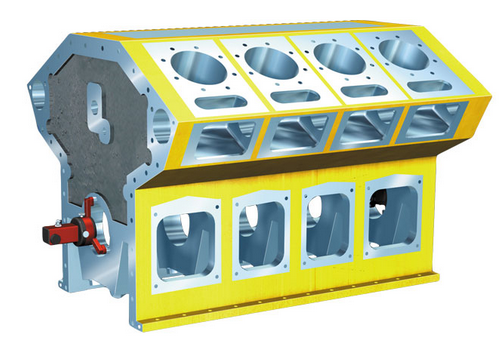

Bore alignment with the highest reliability and precision Easy-Laser E950-A is primarily designed for diesel engines (for example crank and camshaft bearings), gearboxes, compressors and similar applications. Positioning work pieces in machine tools is also an appropriate application.

Easy-Laser® E950 makes checking and aligning bearings and bearing journals easier thanks to wireless detectors and versatile brackets. A large colour display with clear graphics and soft ware that guides the user through the entire measurement process contributes to simple operation. The system automatically calculates the bearing journals positions in relation to each other, both horizontally and vertically. You can then evaluate the results directly on-site with different calculation methods such as Best fit around zero and Waviness. It is also possible to analyse the different choices of reference points and set the off set and tolerance values.
A great feature is the check of ovality, for example, to analyse the wear rate. The measurement system takes care of all these complicated calculations for you. You measure and align both full and half bearing journals with equal simplicity. The wireless detector eliminates uncertain factors such as cable pull. All parts are designed for maximum accuracy and stability, and measure with a resolution of 0.001 mm [0.05 mils]. Measurement distance up to 40 m [130 feet]. Easy-Laser® E950
is suitable for use both in production and out in the field.

Easy-Laser® E950 makes checking and aligning bearings and bearing journals easier thanks to wireless detectors and versatile brackets. A large colour display with clear graphics and software that guides the user through the entire measurement process contributes to simple operation.

The system automatically calculates the bearing journals in relation to each other, both horizontally and vertically. You can then evaluate the results directly on-site with different calculation methods such as Best fit around zero and Waviness. It is also possible to analyse the different choices of reference points and set the offset and tolerance values. One new feature is the check of ovality, for example, to analyse the wear rate. The measurement system takes care of all these complicated calculations for you. You measure and align both full and half bearing journals with equal simplicity. The wireless detector eliminates uncertain factors such as cable pull. All parts are designed for maximum accuracy and stability, and measure with a resolution of 0.001 mm [0.05 mils]. Measurement distance up to 40 m [130 feet]. Easy-Laser® E950 is suitable for use both in production and out in the field.

Four versions of the measurement system

E950-A or E950-C
Primarily for diesel engines (for example crank and camshaft bearings), gearboxes, compressors and similar applications. Positioning workpieces in machine tools is also an appropriate application.

E950-B or E950-D
Primarily for propeller shaft installations on ships with stern tubes, support bearings, gearboxes and engines.

Which system to use depends on the application.

Straightness of shafts and coupling alignment

With the systems, you can also measure the straightness of shafts, foundations, etc. without any additional accessories. With the measuring devices for shaft alignment (accessories), you have the most complete measurement system to align the entire drive train on the market. Programs for all types of measurements are included as standard, you then adapt the measurement system with brackets and detectors for your needs now and in the future.

Measurement programs

The featured programs below are the most common used with this system

Centre-of-circle, Straightness 2-point

Used for straightness measurement of bearing journals when the bore diameter varies. For example, diesel engines, propeller shaft installations, etc. With advanced “best-fit” calculations.

Half circle, Straightness 3-point

Readings taken in three positions: 9, 6 and 3. Allows varying diameters. To be used together with the turbine system. With advanced “best-fit” calculations.

Straightness, 4-point

Used for straightness measurement of bearing journals. Measures two points in each direction, X and Y. Can handle up to 999 measurement points with two zero points. With advanced “best-fit” calculations.

Straightness, Multipoint

Used for straightness measurement of bearing journals. The number of measurement positions are theoretically unlimited for each measurement point. Can handle up to 999 measurement points with two zero points. With advanced “best-fit” calculations.
