NOVOTEST TP-1M Coating Thickness Gauge
$749.45
Coating Thickness Gauge NOVOTEST TP-1M
- Description
- Size Guide
- SPECIFICATIONS
- Vendor Info
- More Products
Description

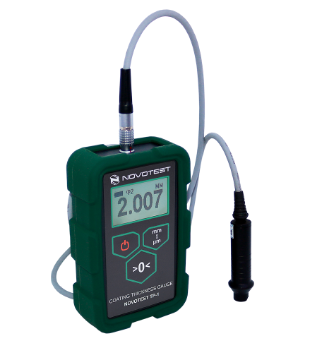

NOVOTEST TP-1M Coating Thickness Gauge
NOVOTEST TP-1M is a thickness gauge for measuring the thickness of various coatings on metals, and with connected specialized probes to the device, user can measure the temperature and humidity of air, surface temperature, calculate the dew point, and also measure the depth of grooves or surface roughness.
The device is very easy to use, ready to use right out of the box, and does not require special user skills. The minimum number of buttons and an intuitive menu makes it an ideal device of operational non-destructive measurement of the thickness of almost any coating with high accuracy.
Advantages of NOVOTEST TP-1M Coating Thickness Gauge
- Large thickness measurement range
- Convenience and ease in operation
- Shockproof case
- Minimum number of controls: one button – one function
- Graphical display with backlight
- Automatic recognition of probe
- Indication of the connected probe type
- Control of batteries
| Thickness measurement range(depends on probe type) | 0 µm … 60 mm |
| Dimensions, mm | 122x65x23 |
| Operating temperature range, ° C | -20 … +40 ° C |
| Batteries | 2 AA |
| Type of connectors of probes | Lemo |
| Storage of measurement results | 256 |
| Standards | AS 2331.1.4, AS 3894.3-B, AS/NZS 1580.108.1, ASTM B 499, ASTM D 7091, ASTM E 376, ASTM G 12, BS 5599, EN 13523-1, IMO MSC.215(82), IMO MSC.244 (83), ISO 1461, ISO 19840, ISO 2063, ISO 2178, ISO 2360, ISO 2808-7C, ISO 2808-7D, ISO 2808-12, NF T30-124, SSPC PA 2, US Navy PPI 63101-000, US Navy NSI 009-32, ASTM D 1186-B, ASTM D 1400, BS 3900-C5-6B, BS 3900-C5-6A, BS 5411-11, BS 5411-3, DIN 50981, DIN 50984, ECCA T1, ISO 2808-6A, ISO 2808-6B, SS 184159. |
| Time of continuous work hours, not less | 20 |
| Weight of electronic unit with batteries, no more, kg | 0.2 |
